Charge Air Cooler Outlet Tube
WARNING: This page is about a different car, the 2024 Jeep Grand Wagoneer L and 2024 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
- Remove the engine cover.
- Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION
.

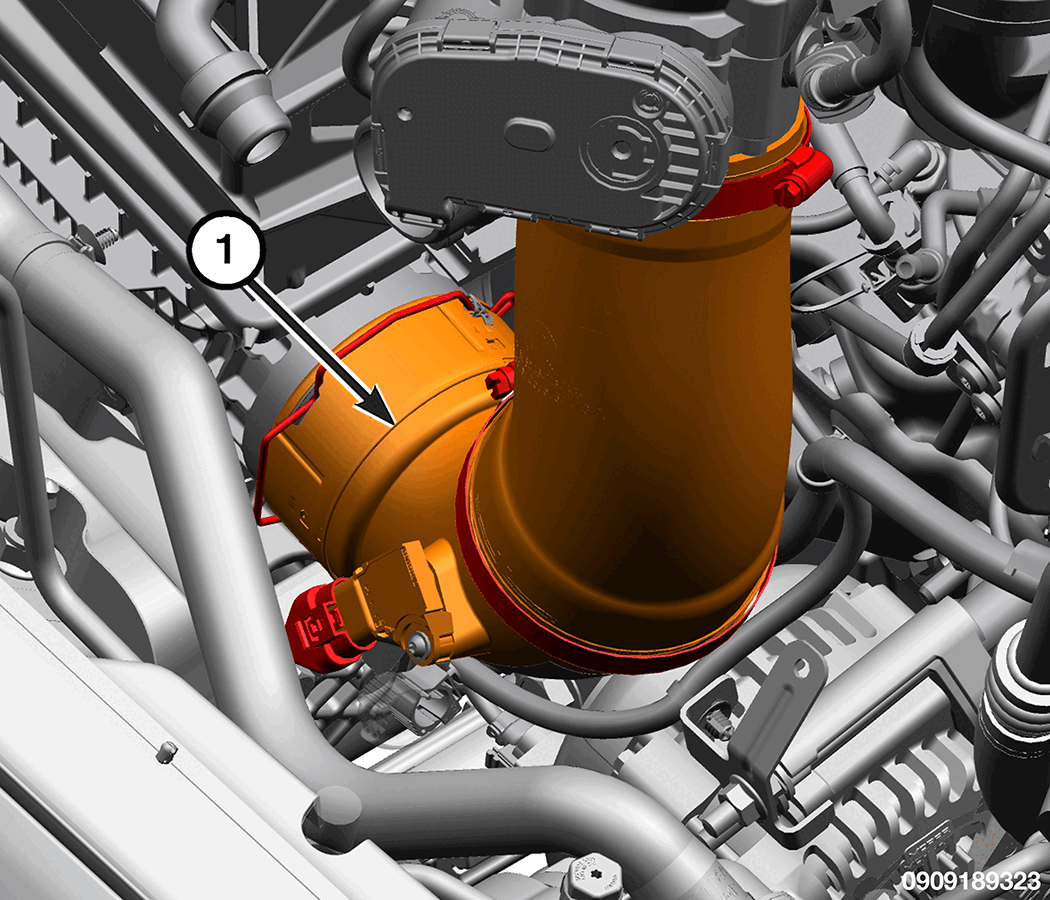

1 - Charge Air Cooler Outlet Tube - Disconnect the TMAP wire harness connector.
- Remove the Charge Air Cooler (CAC) outlet tube from the CAC.
- Loosen the clamp and remove the CAC outlet tube.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Install the Charge Air Cooler (CAC) outlet tube and securely tighten the clamp.
