Ignition System Control Module (ISCM)
REMOVAL

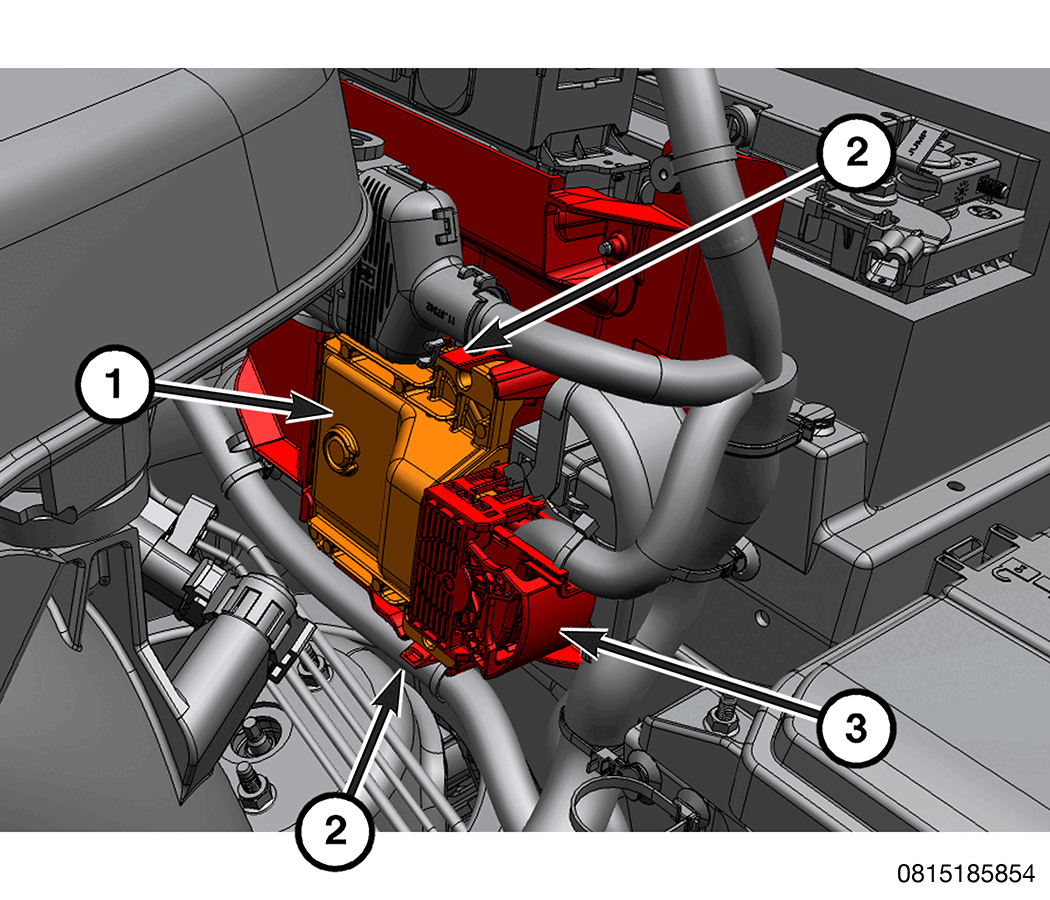

| 1 - Ignition System Control Module |
| 2 - Retaining Tabs |
| 3 - Wiring Harness Connector |
- Disconnect the wire harness connector.
- Press outward on the retaining tabs to release the ISCM from the bracket and remove the module.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- If this ISCM unit is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming Procedure (if available). This will confirm that the module is updated to the latest applicable software level.
