Repair Procedure For Aperture/Cab-Back Seams

Parts Required:

• Paintable Clear Seam Sealer

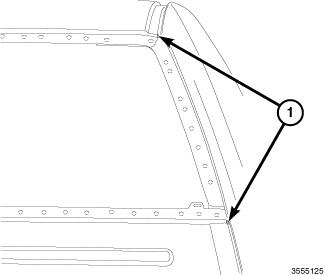

1. Inspect both areas indicated (1).
2. If a skip crack or pinhole is found use Paintable Clear Seam Sealer. Apply sealer as indicated in illustrations below.
   NOTE:

   It is important to fill the entire seam located within the brackets to be certain of full coverage and proper sealing of the rat hole.

   Courtesy of CHRYSLER GROUP, LLC

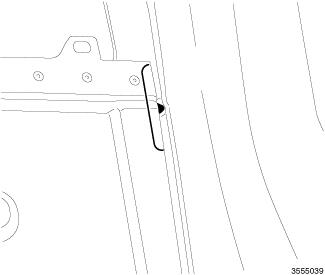

3. Apply clear sealer on entire seam indicated within the bracket.

   Courtesy of CHRYSLER GROUP, LLC

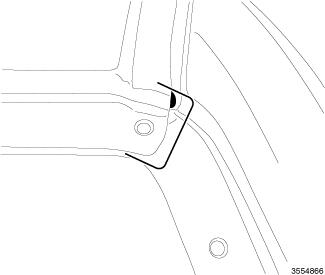

4. Apply clear sealer on entire seam indicated within the bracket.

   Courtesy of CHRYSLER GROUP, LLC
