Windshield Urethane Skip Repair

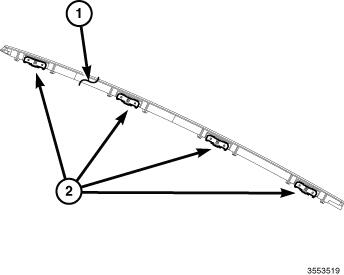

- If the leak is determined to be adjacent to the windshield, then the A-pillar windshield molding (1) should be removed, If equipped. The windshield molding can be removed pulling it away from the cab at its four attach points (2).NOTE:
Sealer skips or pinholes can be seen along the exposed body seams (1).

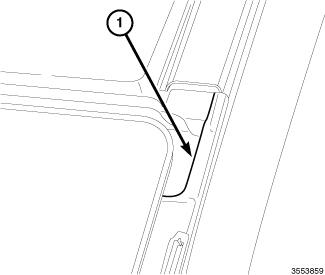

NOTE:A special area of concern is where the windshield and body seams meet at the upper a-pillar (1), which is shown in the illustration.
- Once the windshield molding is removed, inspect for sealer skips. Apply Mopar Glass Sealer to any skip in the urethane around windshield.
- For sealer skips in the A-pillar body seam apply a Clear Hi-Flow Paintable Seam Sealer.
- Prior to re-assembly, re-test the area to ensure it is properly sealed.
- If equipped, carefully reinstall windshield molding.
