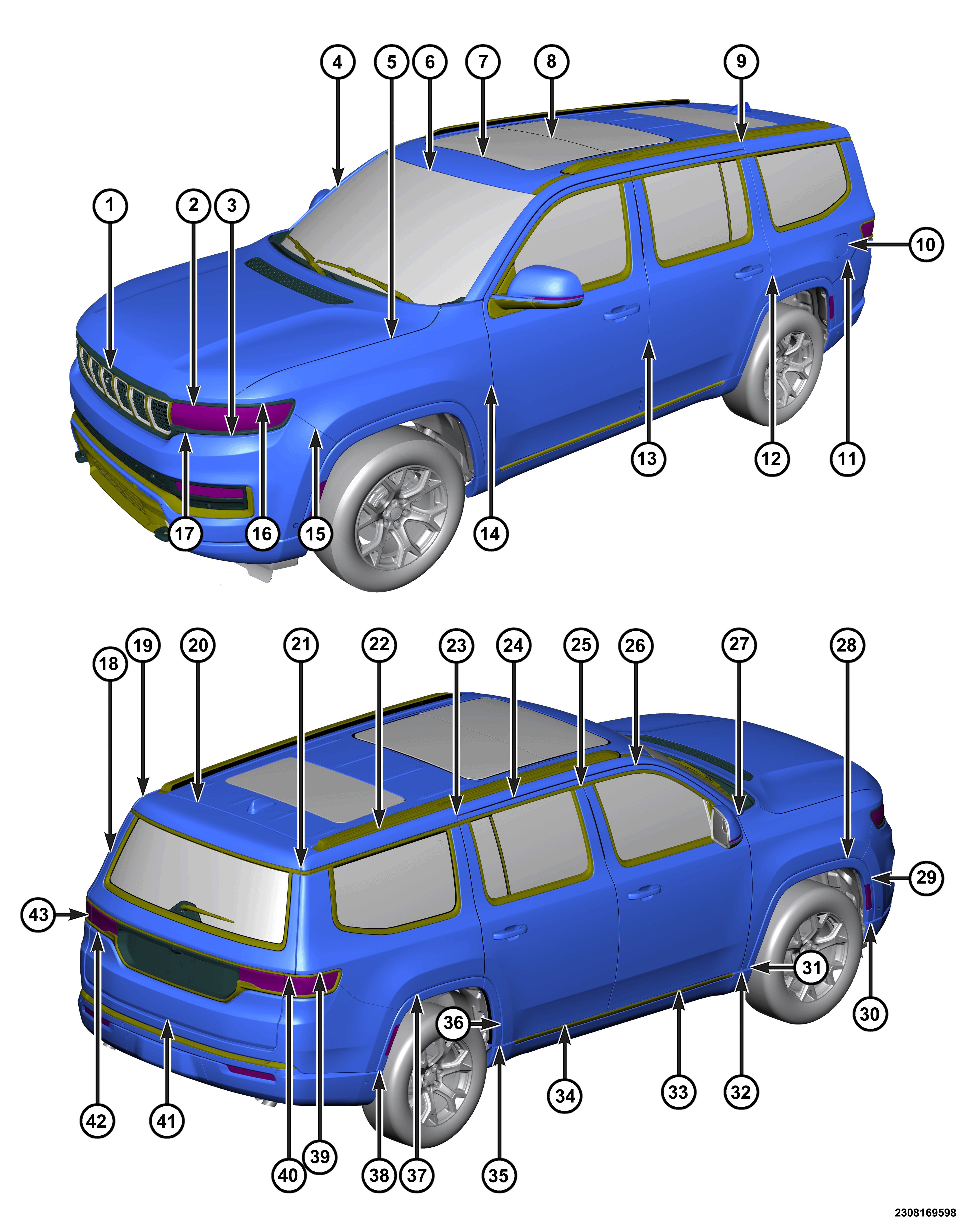

Gap And Flush Dimensions

Courtesy of CHRYSLER GROUP, LLC

All measurements are in millimeters.

O/F = Over Flush
U/F = Under Flush
U/D = Up/Down
F/A = Fore/Aft

DIMENSION	DESCRIPTION	GAP	FLUSH
1	Hood to Upper Grille Applique (Base)	6.2 at center +/- 2.0 Transition to 6.5 at outboard +/- 2.0 Parallel within 2.5	-
1	Hood to Upper Grille Applique (Premium)	10.0 at center +/- 2.0 Transition to 10.7 at outboard +/- 2.0 Parallel within 2.5	-
2	Headlamp to Upper Grille Applique (Base)	3.8 +/- 2.2 Side to side within 3.8	0.0 +/- 1.5
2	Headlamp to Upper Grille Applique (Premium)	3.5 +/- 2.2 Side to side within 3.8	0.0 +/- 1.5
3	Lower Grille Surround to Headlamp (Base)	2.0 +/- 1.6 Side to side within 2.7	Grille U/F 0.9 at inboard +/- 1.6 Transition to O/F 1.0 at outboard +/- 1.6 Side to side within 2.4
3	Lower Grille Surround to Headlamp (Premium)	2.0 +/- 1.6 Side to side within 2.7	Grille O/F 9.9 +/- 2.5
4	Body Side Aperture to Windshield	0.0 to seal 4.0 +/- 1.7 to glass Parallel within 1.7	Body Side Aperture O/F 15.3 at front +/- 1.7 Transition to 15.8 +/- 1.7 Transition to 9.7 at rear +/- 1.7 Consistent within 1.7
5	Hood to Fender	4.0 +/- 1.5 Transition to 4.7 at rear +/- 1.5 Parallel within 1.5 Side to side within 2.1	Hood U/F 2.0 +/- 1.5 Transition to 2.2 at front +/- 1.5 Transition to 0.0 at rear +/- 1.5 Consistent within 1.5 Side to side within 1.9
6	Windshield to Roof	0.0 to seal 4.0 to glass +/- 1.7	Windshield U/F at center 2.0 +/- 1.7 Transition to 1.3 at outboard +/- 1.7
7	Dual Pane Sunroof (Front Glass)	0.0 to seal At front 14.7 to glass +/- 2.0 At side 13.9 to glass +/- 2.0 Parallel within 2.0	Seal U/F at front 1.1 +/- 1.5 Seal O/F at rear 0.7 +/- 1.5 Consistent within 1.5
8	Dual Pane Sunroof (Rear Glass)	0.0 to seal At front 16.2 to glass +/- 2.0 At side 14.6 to glass +/- 2.0 Parallel within 2.0	Front Glass U/F 1.8 at front +/- 1.5 Transition to O/F 1.7 at outboard and rear +/- 1.7 Rear Glass O/F 0.8 at front +/- 1.5 Transition to O/F 1.1 at intboard and rear +/- 1.7
9	Front Body side Aperture to Rear Body Side Aperture	4.5 +/- 1.0	0.0 +/- 1.0
10	Fuel Door to Body Side Aperture	2.5 +/- 0.9 Parallel within 1.0	Door U/F 0.9 +/- 0.9 Consistent within 1.0
11	Upper Rear Fascia to Body Side Aperture	0.0 + 0.5	Fascia U/F 0.5 +/- 0.6
12	Rear Door to Body Side Aperture	4.5 +/- 1.2 Parallel within 1.5	Door O/F 0.5 below character line +/- 1.2 Door U/F 1.0 above character line at top +/- 1.5 Consistent within 1.2
13	Front Door to Rear Door	4.5 +/- 1.5 Parallel within 1.2	Front Door O/F 0.5 below character line +/- 1.3 Front Door U/F above character line 1.0 transition to 0.5 at belt +/- 1.5 Consistent within 1.7
14	Fender to Front Door	4.5 +/- 1.2 Parallel within 1.0	Fender O/F 0.5 +/- 1.2 Transition to 0.0 at top +/- 1.7 Consistent within 1.2
15	Upper Fascia to Fender	0.0 + 0.5	Fascia U/F 0.5 +/- 0.5
16	Headlamp to Fender (Base)	1.9 at front +/- 1.3 Transition to 3.0 at upper side +/- 1.3 Transition to 2.0 at lower +/- 1.3 Parallel within 1.6	Headlamp U/F 1.8 a+/- 1.2 t front Transition to 1.5 at side +/- 1.2 Transition to 0.0 at bottom+/- 1.2 Consistent within 1.5
16	Headlamp to Fender (Premium)	1.9 at front +/- 1.3 Transition to 3.0 at upper side +/- 1.3 Transition to 2.0 at lower +/- 1.3 Parallel within 1.6	Headlamp U/F 1.8 +/- 1.3 at front Transition to 0.0 at bottom Consistent within 1.5
17	Grille Lower Surround to Headlamp Applique (Base)	3.5 at top +/- 2.1 4.3 at front +/- 2.1 Side to side within 3.5	0.0 +/- 1.5
17	Grille Lower Surround to Headlamp Applique (Premium)	3.5 at top +/- 2.1 4.0 at front +/- 2.1 Side to side within 3.5	0.0 +/- 1.5
18	Rear Body Side Aperture to Liftgate (Below Molding)	5.0 +/- 1.5 Parallel within 1.5 Side to side within 1.9	Liftgate U/F 1.9 +/- 1.6 Consistent within 2.2 Side to side within 2.5
19	Rear Body Side Aperture to Liftgate (Above Molding)	5.0 +/- 1.5 Parallel within 1.5 Side to side within 1.9	Body Side O/F 3.6 at top +/- 1.6 Body Side O/F 1.4 at rear +/- 1.6 Consistent within 2.2 Side to side within 2.5
20	Liftgate to Roof	6.5 +/- 1.4 Parallel within 1.4 Side to side within 1.4	Liftgate U/F 2.0 +/- 1.6 Consistent within 1.6
21	Body Side Aperture Molding to Liftgate Molding	5.5 +/- 1.5	Body Side Molding O/F 1.0 +/- 2.0
22	Roof Rack to Body Side Aperture	0.0 +/- 1.1	-
23	Rear Door Molding to Body Side Aperture Molding	4.5 +/- 1.5	0.0 +/- 1.6
24	Rear Door to Front Body Side Aperture	4.5 +/- 1.2 Parallel within 1.5	Door above character line: U?F 1.0 +/- 1.5 at top Transition to 0.0 +/- 1.5 above molding Transition to O/F 0.0 at character line and below Consistent within 1.5
25	Front Door Molding to Rear Door Molding	4.5 +/- 1.5	0.0 +/- 1.7
26	Front Door to Front Body Side Aperture	4.5 +/- 1.1 Parallel within 1.5	Door U/F 1.3 +/- 1.6 Transition to 0.6 at front +/- 1.6 Consistent within 1.5
27	Fender to Body Side Aperture A-pillar	3.0 +/- 1.3 Parallel within 1.0	-
28	Wheel Flare to Fender	0.0 +/- 1.0	-
29	Wheel Flare to Front Upper Fascia	0.0 +/- 1.0	Flare U/F 1.2 +/- 1.0
30	Wheel Flare to Front Lower Fascia	2.0 +1.5 /- 2.0	Flare U/F 2.5 +/- 1.0 Consistent within 1.5
31	Wheel Flare to Sill Side Step (Fixed)	7.2 +/- 2.0	Flare U/F 2.2 +/- 2.0
31	Wheel Flare to Sill Side Step (Folding)	8.7 +/- 5.4	Flare U/F 2.2 +/- 5.0
32	Fender to Sill Side Step (Fixed)	7.3 +/- 2.0	Fender U/F 2.1 +/- 2.0
32	Fender to Sill Side Step (Folding)	9.0 +/- 5.4	Fender U/F 2.1 +/- 5.0
33	Front Door to Sill Side Step (Fixed)	7.1 +/- 2.0	Door U/F 2.5 +/- 2.0 Transition to 2.1 at rear +/- 2.0
33	Front Door to Sill Side Step (Folding)	8.8 +/- 5.4	Door U/F 2.5 +/- 5.0 Transition to 3.5 at rear +/- 5.0
34	Rear Door to Sill Side Step (Fixed)	6.8 +/- 2.0	Step O/F 1.9 +/- 2.0 Transition to 0.8 at front +/- 2.0
34	Rear Door to Sill Side Step (Folding)	8.6 +/- 5.3	O/F 1.9 +/- 5.0 Transition to 2.6 at front +/- 2.0
35	Door Flare to Sill Side Step (Fixed)	6.0 +/- 2.0	Flare U/F 2.0 +/- 2.0
35	Door Flare to Sill Side Step (Folding)	8.0 +/- 5.4	Flare U/F 2.0 +/- 5.0
36	Door Flare to Rear Door	0.0 +/- 1.0	0.0 +/- 1.2
37	Wheel Flare to Rear Body Side Aperture	0.0 +/- 1.0	Flare U/F 0.7 +/- 1.2
38	Wheel Flare to Rear Body Lower Fascia	2.0 +1.5/-2.0	Flare U/F 2.0 +/- 1.0
39	Body Side Aperture Taillamp to Rear Body Side Aperture	2.0 +/- 1.1	Lamp O/F 0.4 +/- 1.1 Transition to 5.7 at liftgate +/- 1.1 Transition to 1.6 at bottom+/- 1.1
40	Body Side Aperture Taillamp to Liftgate (Base)	5.1 +/- 1.6 Parallel within 1.5	Lamp O/F 6.8 +/- 1.6 Consistent within 1.7
40	Body Side Aperture Taillamp to Liftgate (Premium)	4.0 +/- 1.5 Parallel within 1.5	Lamp O/F 6.8 +/- 1.7 Consistent within 1.7
41	Liftgate to Rear Fascia (Cross Car)	5.1 +/- 2.0 Parallel within 2.0 Side to side within 2.0	Side U/F 4.0 +/- 2.0 Lower U/F 15.3 at center +/- 2.0 Transition to 10.0 at outboard +/- 2.0 Consistent within 2.0
41	Liftgate to Rear Fascia (Up Down)	8.5 at center +/- 1.8 Transition to 8.0 at outboard +/- 1.4 Parallel within 1.8	Side U/F 4.0 +/- 2.0 Lower U/F 15.3 at center +/- 2.0 Transition to 10.0 at outboard +/- 2.0 Consistent within 2.0
42	Rear Fascia to Body Side Aperture Taillamp (Base)	1.5 +/- 1.2 Parallel within 1.2 Side to side within 1.5	Fascia O/F 3.5 +/- 1.1 Transition to 2.8 at front and rear +/- 1.1 Consistent within 1.5
42	Rear Fascia to Body Side Aperture Taillamp (Premium)	2.0 +/- 1.2 Parallel within 1.2 Side to side within 1.5	Lamp U/F 2.5 +/- 1.1 at rear Lamp O/F 3.2 to 2.8 +/- 1.1 at front
43	Body Side Aperture Taillamp to Liftgate Taillamp	5.6 +/- 1.7 Parallel within 1.6 Side to side within 2.0	Body Side Lamp O/F 1.7 +/- 1.8 Parallel within 1.7 Side to side within 2.0
