Switch Bank Pod

REMOVAL

1. Remove the electronic shift module. Refer to MODULE, ELECTRONIC SHIFT (ESM), REMOVAL AND INSTALLATION .

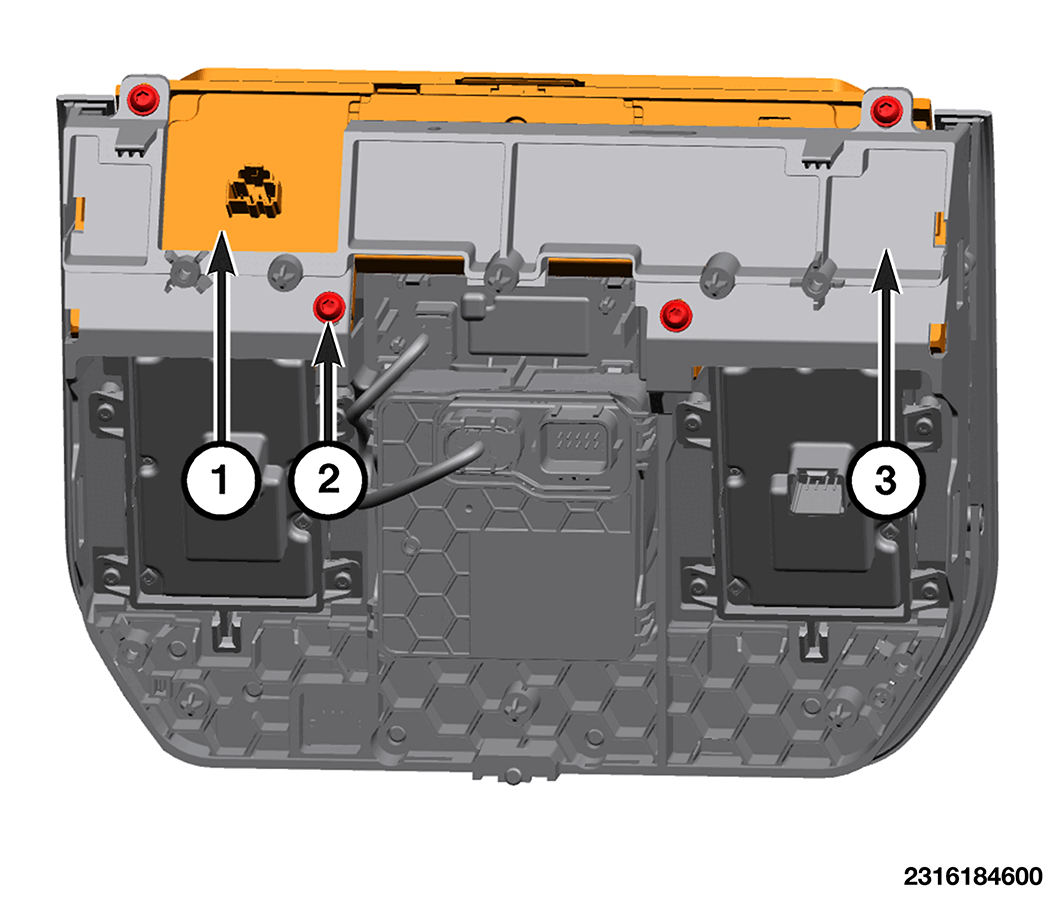

   Courtesy of CHRYSLER GROUP, LLC

   1 - Switch Bank Pod

   2 - Fasteners

   3 - Electronic Shift Module (ESM)

2. Remove the fasteners securing the switch bank pod to the Electronic Shift Module (ESM).

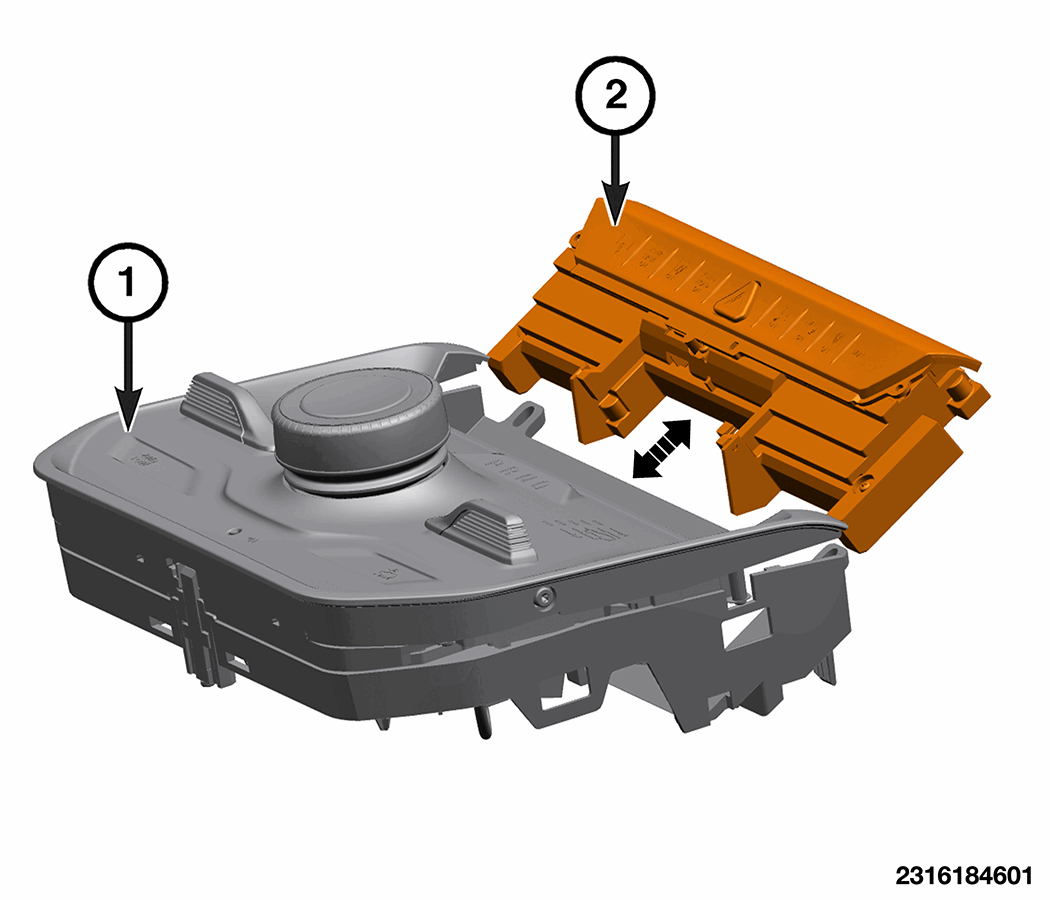

   Courtesy of CHRYSLER GROUP, LLC

   1 - Electronic Shift Module (ESM)

   2 - Switch Bank Pod

3. Slide the switch bank pod up to remove it from the ESM.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten the fasteners securely.
