Instrument Panel Cluster

REMOVAL

1. Lower the steering column and steering wheel to its lowest position.
2. Remove the steering column gap hider. Refer to GAP HIDER, STEERING COLUMN SHROUD, REMOVAL AND INSTALLATION .
3. Remove the instrument cluster bezel. Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL AND INSTALLATION .

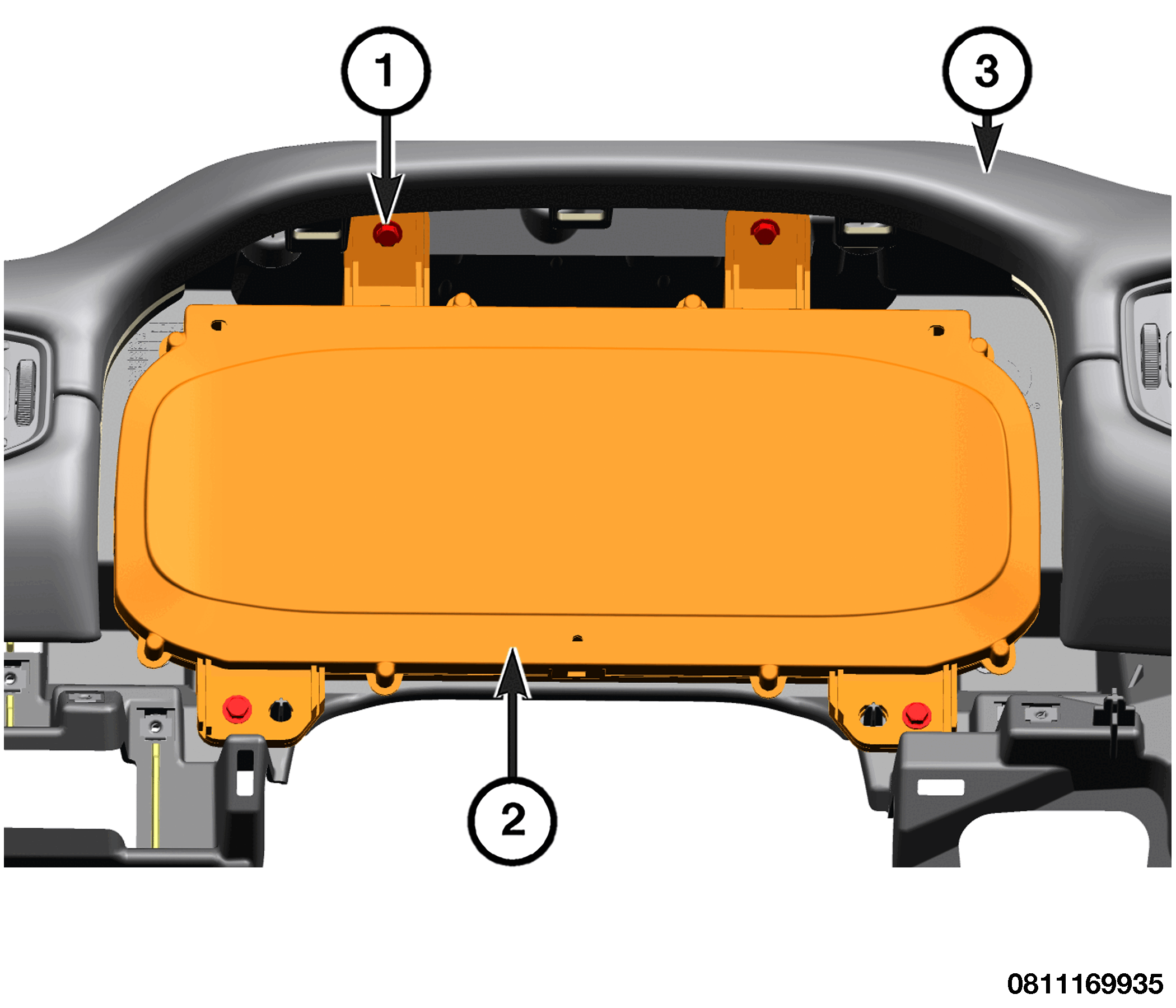

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Instrument Panel Cluster (IPC)

   3 - Instrument Panel

4. Remove the fasteners that secure the Instrument Panel Cluster (IPC) to the instrument panel.
5. Pull the bottom of the IPC rearward far enough to access the back of the IPC.
6. Disconnect the IPC wire harness connector(s). Remove the IPC from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
