Night Vision Camera

REMOVAL

1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

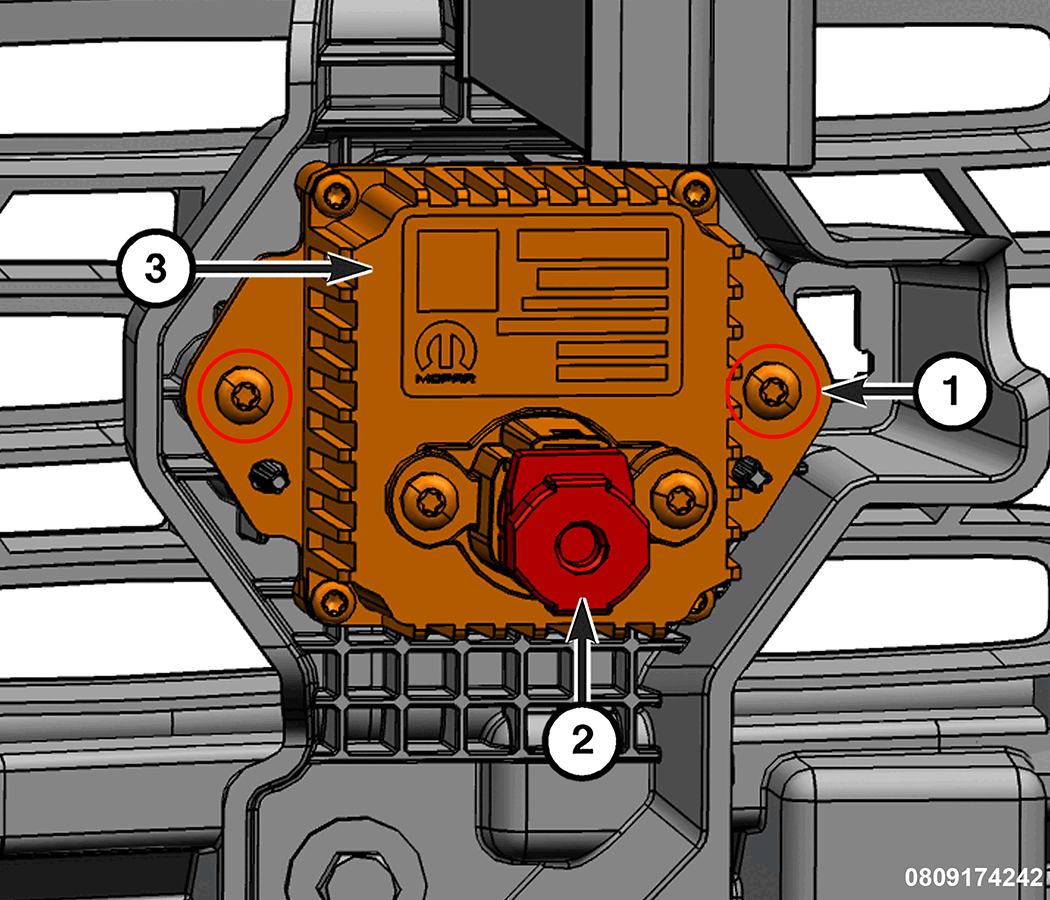

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Wire Harness Connector

   3 - Night Vision Camera

2. Disconnect the wire harness connector from the night vision camera.
3. Remove the fasteners securing the night vision camera to the front fascia.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten the fasteners securely.
