WL PHEV Battery Pack HV Fuses And Power Inverter Module (PIM) HV Fuses
WARNING: This page is about a different variant/trim than selected.

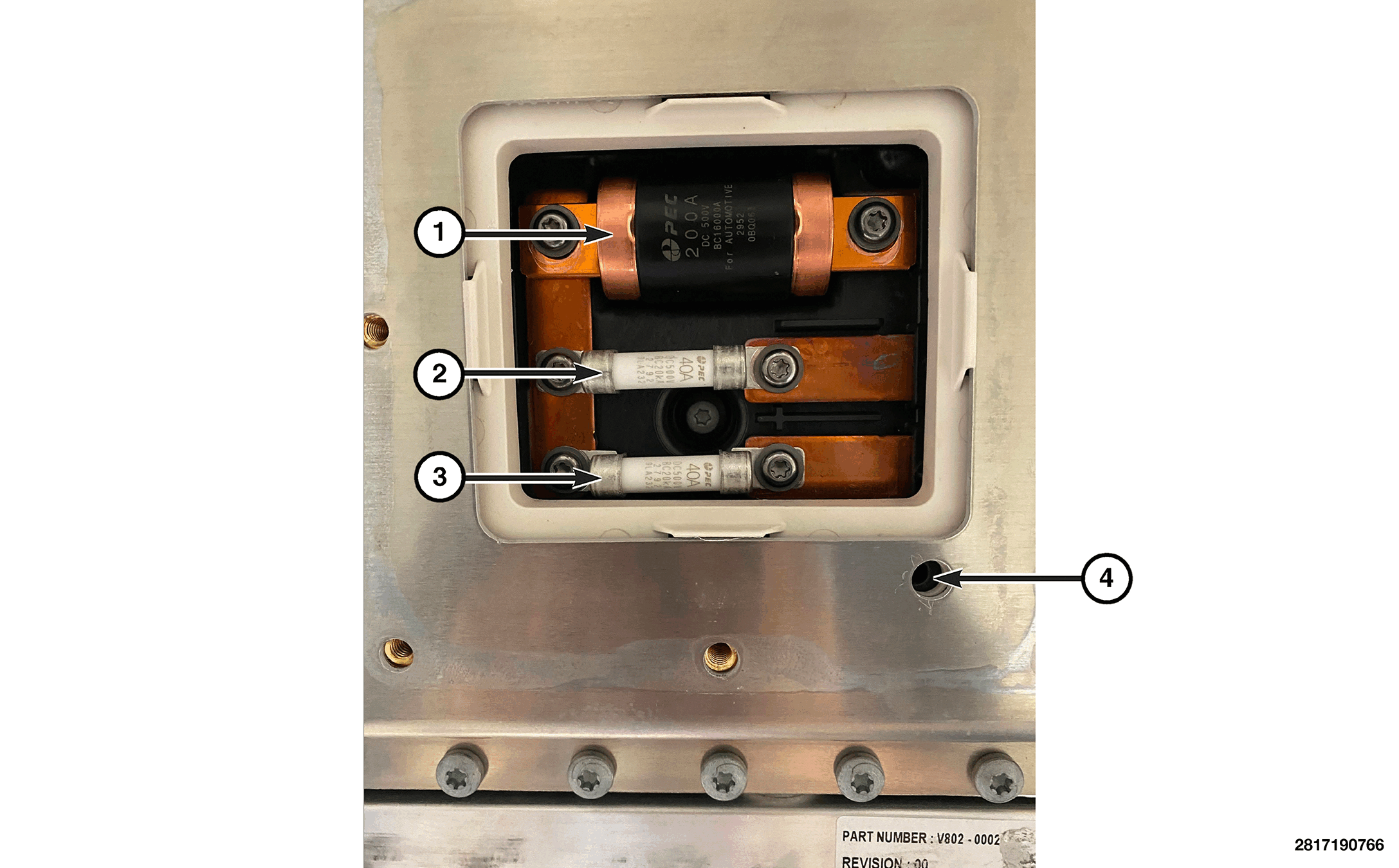

| WL PHEV HV BATTERY PACK FUSES |
| 1- Fuse "A" - Main HV Battery Pack Fuse- PIM |
| 2- Fuse "C" - Battery Coolant Heater (BCH) Fuse |
| 3- Fuse "B" - Integrated Dual Charge Module (IDCM) Fuse |
| 4- HVIL Safety Switch |
NOTE:
Currently WL PHEV HV Fuses "A" "B" and "C" are not serviced separately from the HV Battery Pack. The HV Battery Pack must be replaced. Make sure external HV shorts are found and corrected before replacing the HV Battery Pack!

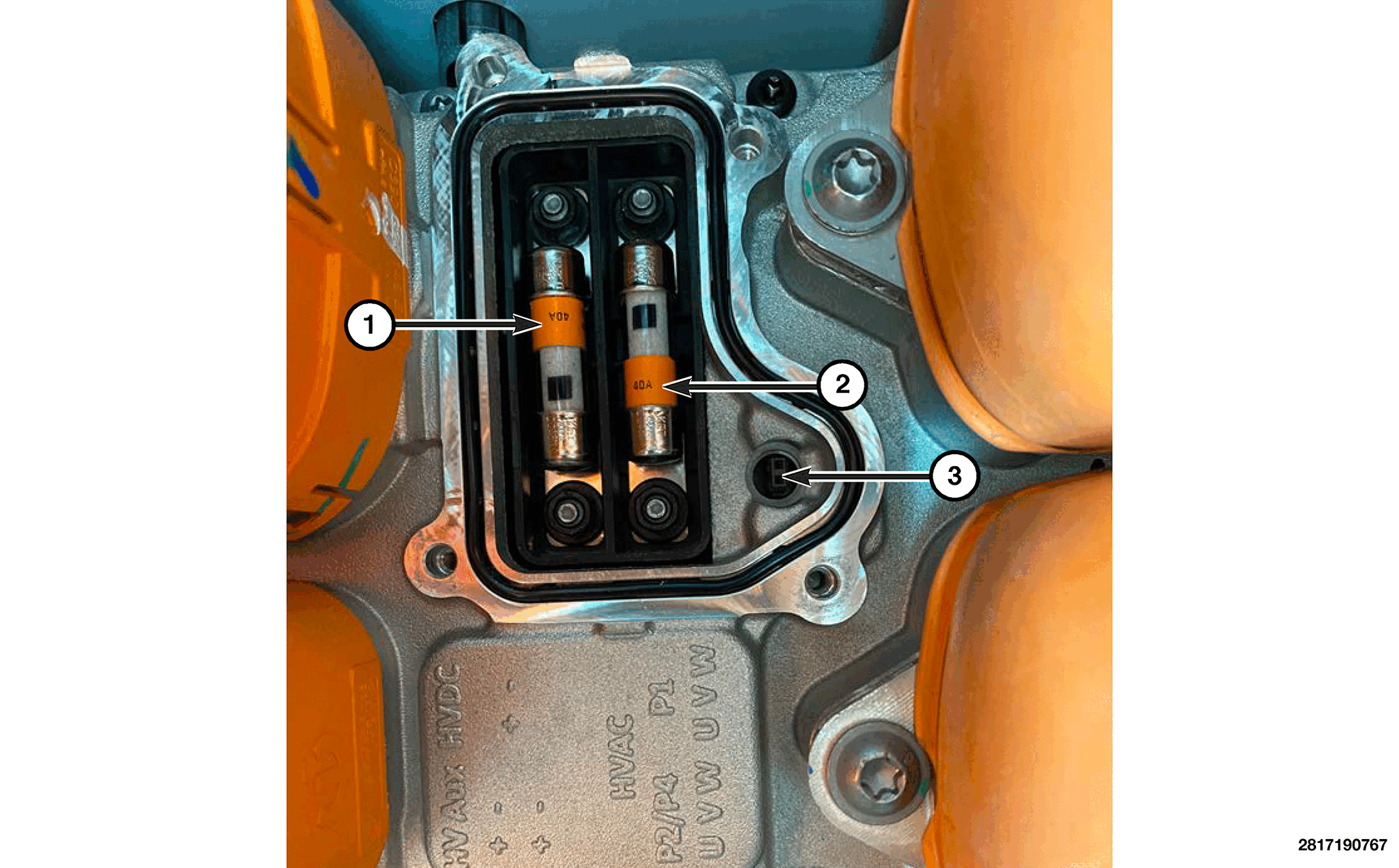

| WL PHEV POWER INVERTER MODULE (PIM) FUSES |
| 1- Electric A/C Compressor (EAC) Fuse |
| 2 - HV Coolant Heater Fuse |
| 3- PIM HVIL Cover Plate Connection |
NOTE:
The PIM 40 Amp fuses are serviceable.
Whenever the PIM Fuse Cover Plate is removed, a new gasket must be replaced.
