Torque Specifications - Torsional Damper
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS - TORSIONAL DAMPER
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|

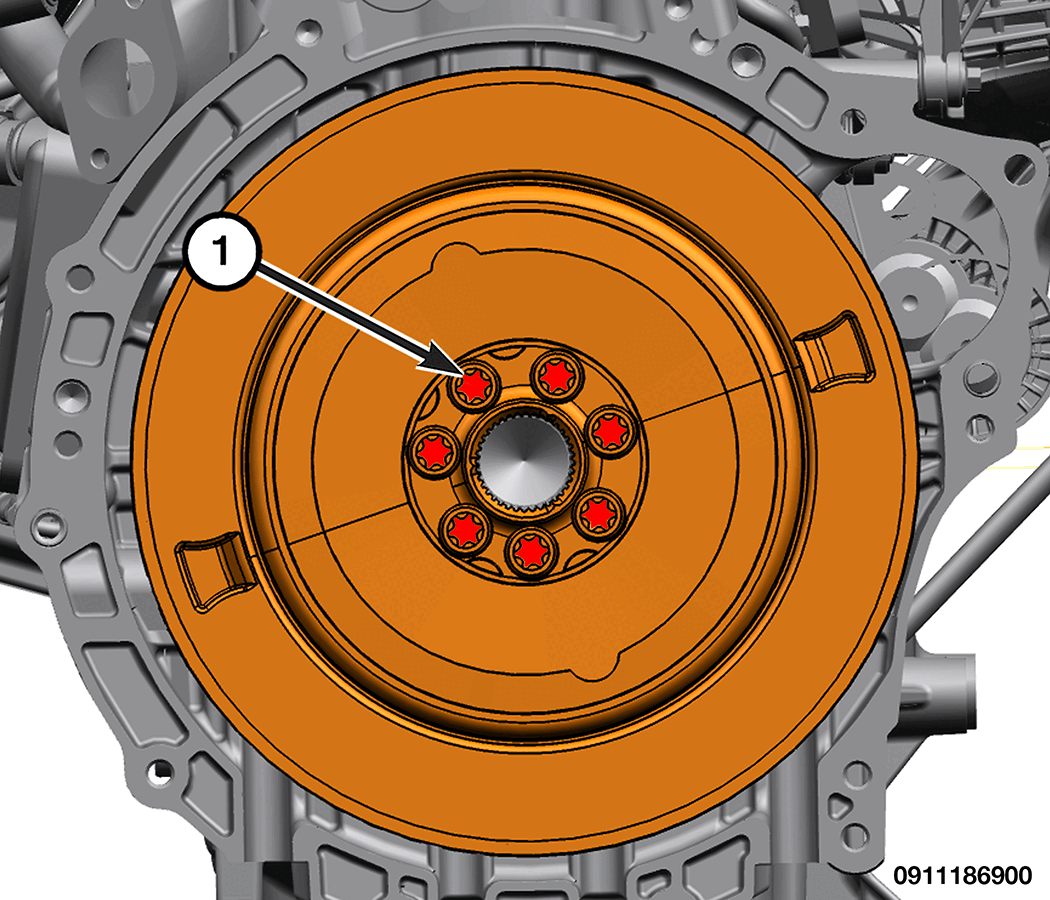

| 1 | Torsional Damper Bolts | 105 N.m (77 Ft. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications.
NOTE:
If old fastener must be re-used, Loc-Tite® must be applied to the threads. |
