Standard Procedure - Transmission Cooler Line Quick Connect Fitting Disconnect/Connect: Disconnect

TRANSMISSION END

1. Remove the dust cap (2) by pulling it straight back off of the quick connect fitting (1).
2. Place the disconnect special tool (4) onto a 3/8 inch transmission cooler line or special tool onto a 1/2 inch transmission cooler line with the fingers of the tool facing the quick connect fitting.

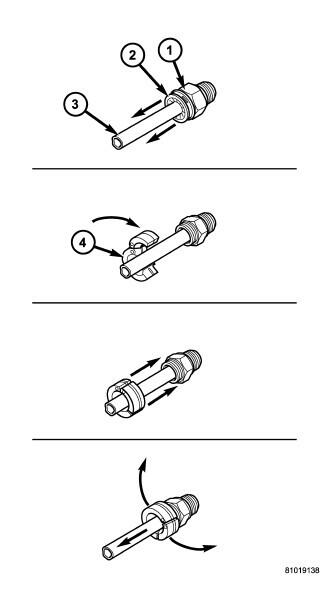

   Disconnect, Transmission Cooler Line

   Courtesy of CHRYSLER GROUP, LLC

   Disconnect Tool

   Courtesy of CHRYSLER GROUP, LLC

   Courtesy of CHRYSLER GROUP, LLC

3. Slide the disconnect tool down the transmission oil cooler line and attach the fingers of the tool into the retaining clip. When properly attached in the clip, the tool will fit flush against the quick connect fitting.
4. Rotate the disconnect tool 60° to expand the retaining clip.
5. While holding the disconnect tool against the quick connect fitting, pull back on the transmission cooler line and remove the line.

TRANSMISSION OIL COOLER END

Courtesy of CHRYSLER GROUP, LLC

1. Using a suitable tool (1), remove the spring clips (2) from the connectors.
2. Pull the transmission oil cooler lines out from the transmission oil cooler.
