Integrated Electric Oil Pump (IEP) Harness

WARNING: This page is about a different variant/trim than selected.

NOTE:

The IEP harness is the harness that supplies power and ground to the pump. The harness utilizes pressure type contacts at the IEP motor end.

Remove the valve body. Refer to VALVE BODY, REMOVAL AND INSTALLATION .
Disconnect the Integrated Electric Oil Pump (IEP) wire harness connector.
Remove the IEP harness screws and remove the harness.

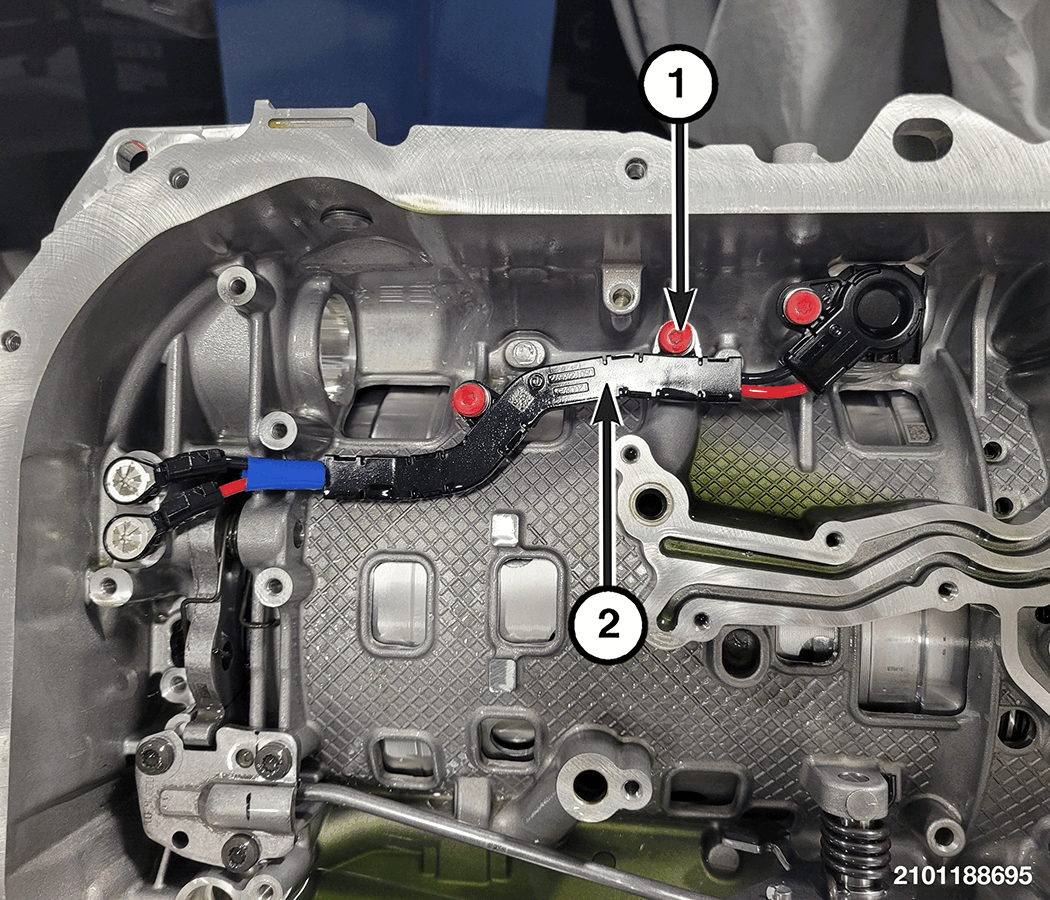

Courtesy of CHRYSLER GROUP, LLC

1 - IEP Harness Screws

2 - IEP Harness

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

Tighten the IEP harness screws securely.
