PCV Valve

REMOVAL

1. Remove the engine covers.
2. Disconnect the quick connect fitting and remove the Positive Crankcase Ventilation (PCV) hose from the PCV valve.

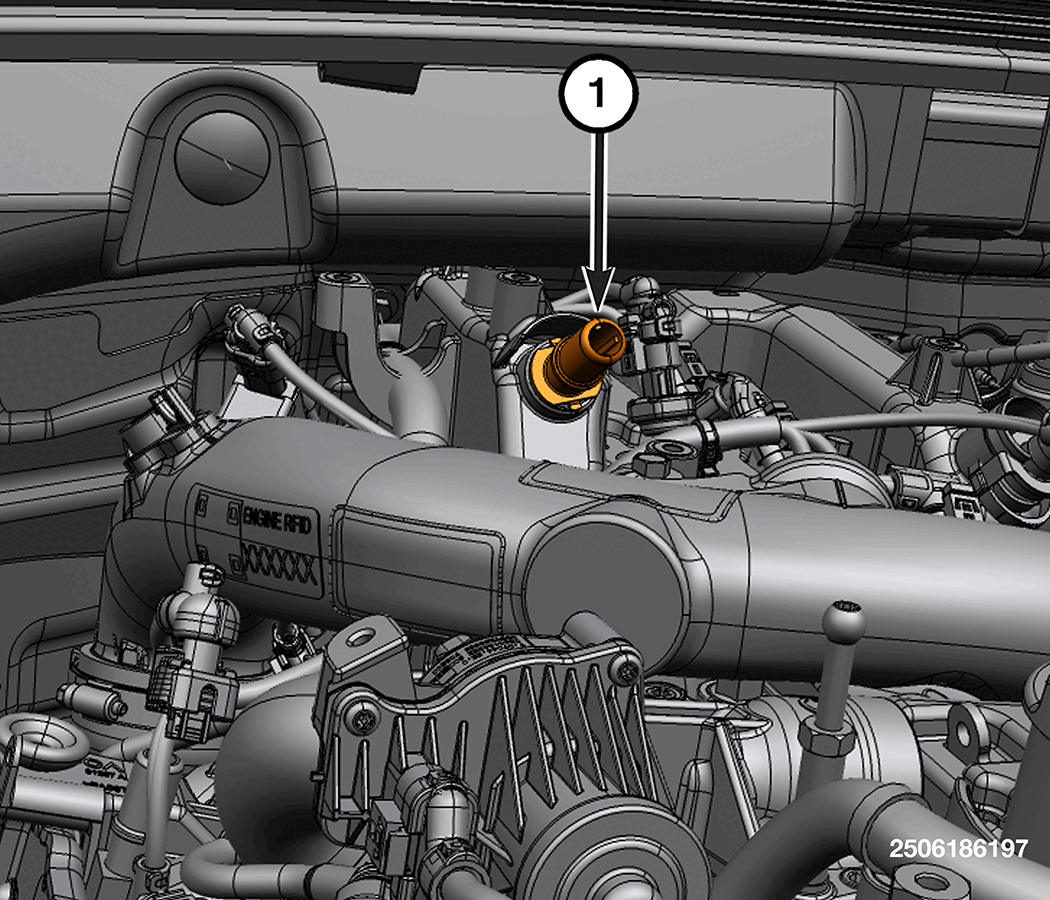

   Courtesy of CHRYSLER GROUP, LLC

   1 - PCV Valve

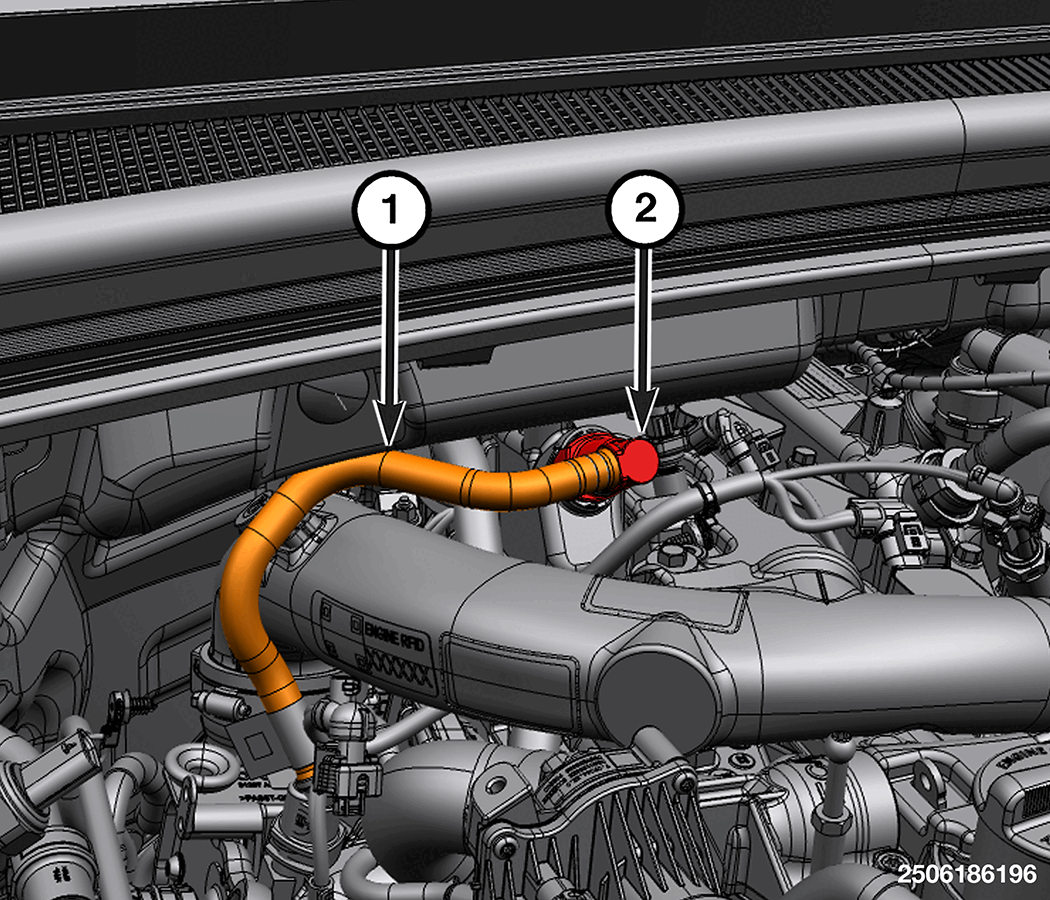

   Courtesy of CHRYSLER GROUP, LLC

   1 - PCV Hose

   2 - PCV Hose Quick-Connect Fitting

3. Using a pair of thin nosed pliers inserted into the approved zone on the PCV valve, rotate and remove the PCV valve.

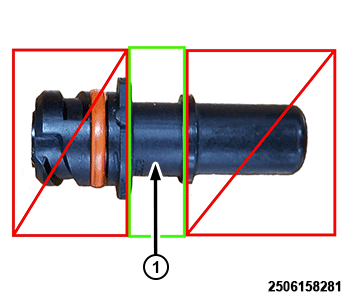

   Courtesy of CHRYSLER GROUP, LLC

   1 - Approved Area in Green

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Lightly oil the O-ring prior to installing the PCV Valve into the engine.
