Fuel Pump Control Module

WARNING: This page is about a different car, the 2024 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Remove the right rear splash shield. Refer to REAR WHEELHOUSE SPLASH SHIELD .

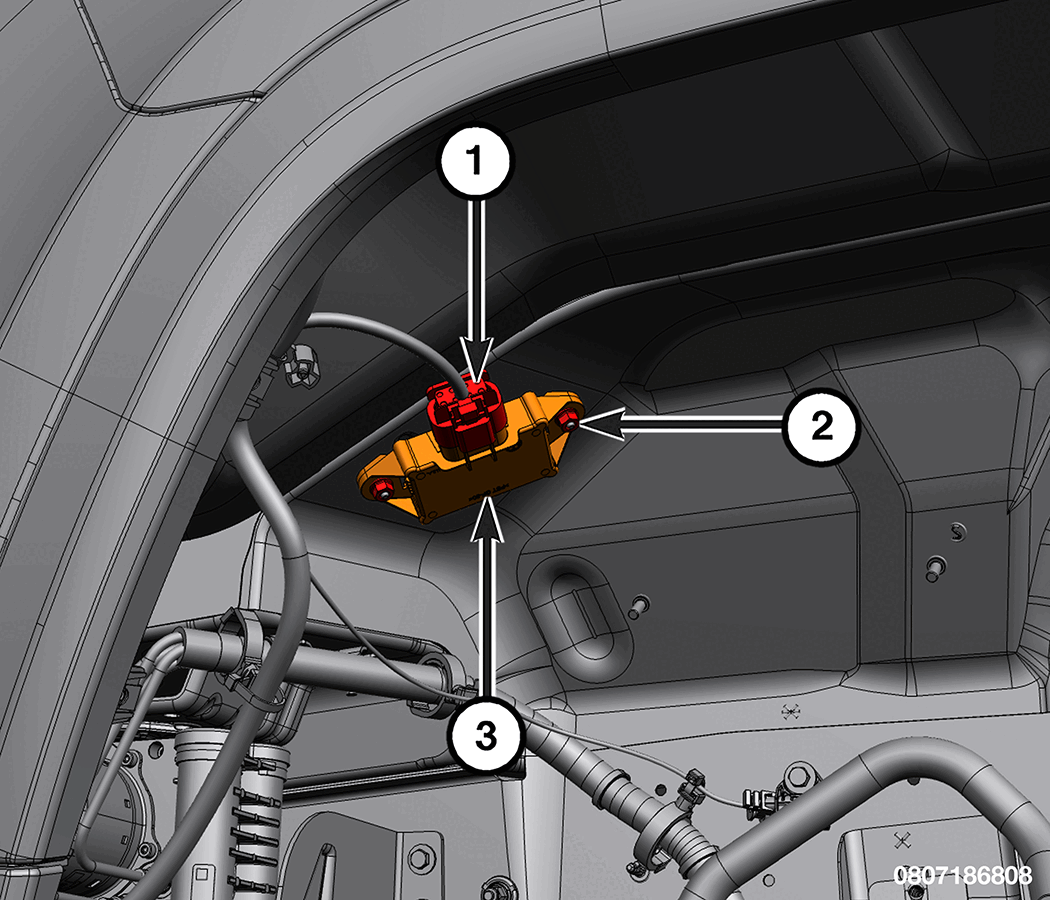

Courtesy of CHRYSLER GROUP, LLC

1 - Wire Harness Connector

2 - Nuts

3 - Fuel Pump Control Module

Disconnect the wire harness connector from the fuel pump control module.
Remove the mounting nuts and remove fuel pump control module.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.

Tighten the fuel pump control module nuts securely.
