Transmission Cooler Line Quick Connect Fitting Disassembly/Assembly: Connect

WARNING: This page is about a different car, the 2024 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

Align transmission cooler line with quick connect fitting while pushing straight into the fitting.

Push in on transmission cooler line until a "click" is heard or felt.

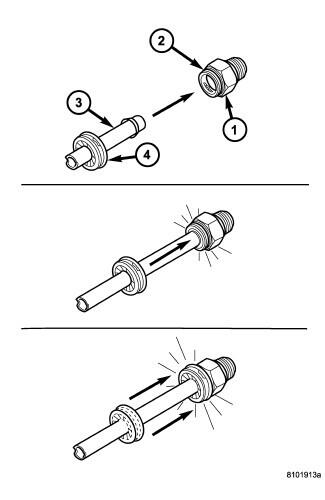

Courtesy of CHRYSLER GROUP, LLC

1 - QUICK CONNECT FITTING

2 - CLIP

3 - OIL COOLER LINE

4 - DUST CAP

Slide dust cap down the transmission cooler line and snap it over the quick connect fitting until it is fully seated and rotates freely. Dust cap will only snap over quick connect fitting when the transmission cooler line is properly installed.

NOTE:

If dust cap will not snap into place, repeat assembly step 2.
