Front Belly Pan

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

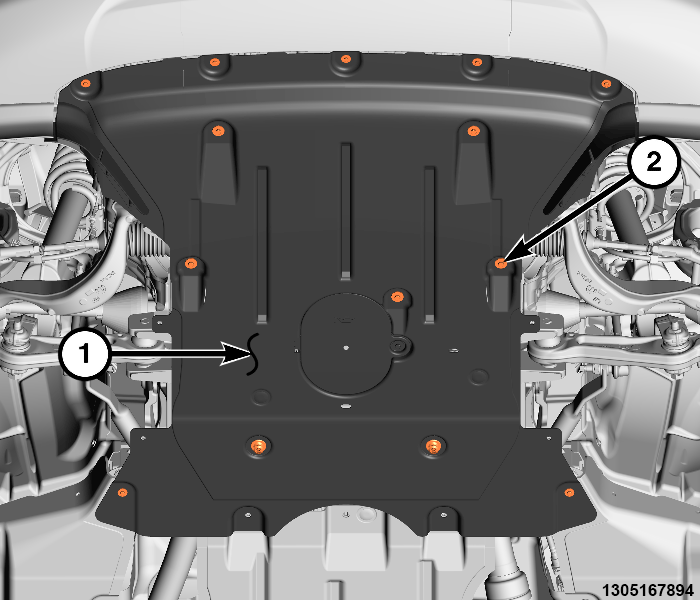

   Courtesy of CHRYSLER GROUP, LLC

   1 - Front Belly Pan

   2 - Fasteners

2. Remove the fasteners that retain the belly pan.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Front Belly Pan

   2 - Fasteners

3. Remove the front belly pan.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
