Headlamp Alignment
NOTE:
Due to the linear nature of the headlamp cutoff, a properly aimed low beam headlamp will project the top edge of the high intensity pattern 2.5 centimeters (1 inch) below the headlamp horizontal reference line on the alignment screen. No horizontal (right/left) adjustment is required for this headlamp beam pattern. The high beam pattern will be correct when the low beams are properly aimed.
- The vertical adjustment screw for each headlamp is accessible through a hole located on the side closeout panel.
- Turn the headlamps ON and select the LOW beams.

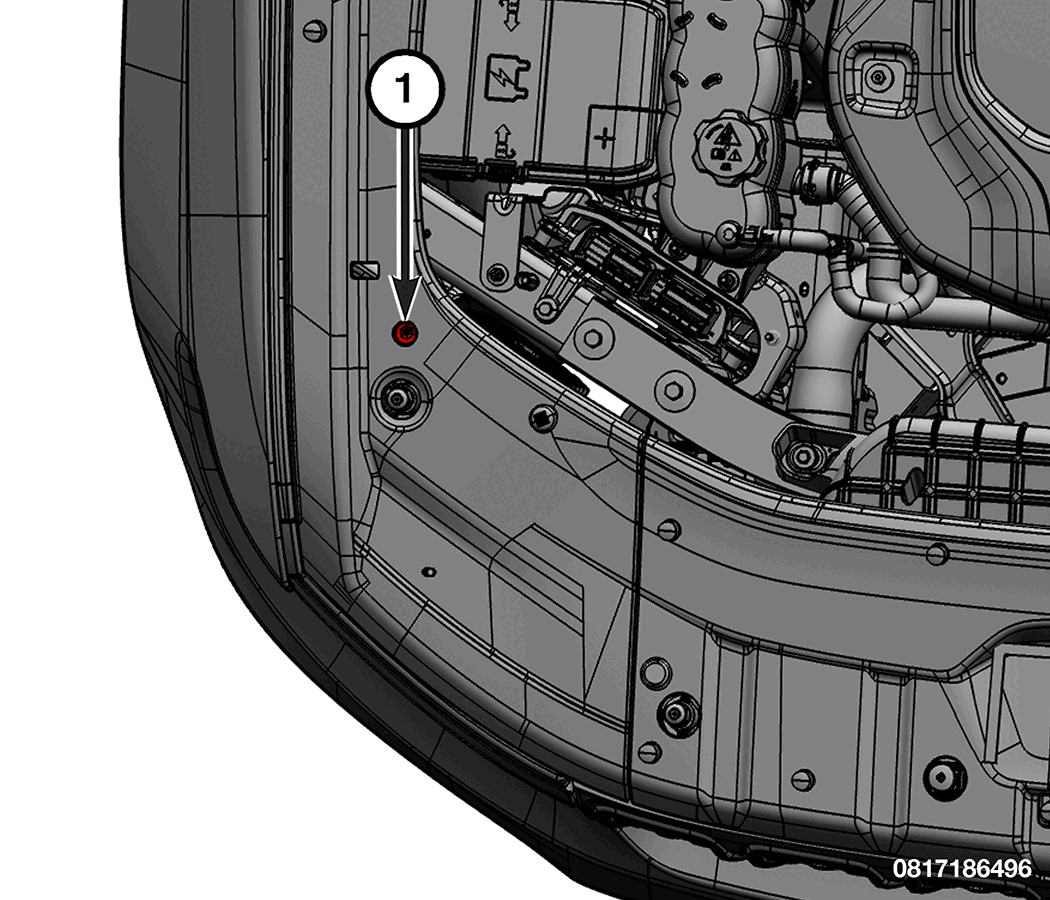

1 - Vertical Adjustment Screw - Rotate the headlamp vertical adjustment screw on the back of each front lamp unit to adjust the beam height as required.
