(Torque Specifications - Transmission - 850RE)
WARNING: This page is about a different car, the 2024 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.
| DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|
| Bell-housing to Engine Bolts | 50 N.m (37 Ft. Lbs.) | - |
| Bell-housing to Engine Stud Bolts | 48 N.m (35 Ft. Lbs.) | - |
| Engine to Bellhousing Bolts | 45 N.m (33 Ft. Lbs.) | - |
| Flexplate to Crankshaft Bolts | 110 N.m (81 Ft. Lbs.) | Tighten in a crisscross pattern Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| Hydraulic Impulse Solenoid (HIS) Bolts | 8 N.m (71 In. Lbs.) | - |
| Manual Park Release Cable Bracket to Transmission Bolts | 20 N.m (15 Ft. Lbs.) | - |
| Manual Park Release Lever Shaft Nut | 20 N.m (15 Ft. Lbs.) | - |
| Manual Park Release Handle to Body Nuts | 9 N.m (80 In. Lbs.) | - |
| Output Speed Sensor Bolt | 8 N.m (71 In. Lbs.) | - |
| Park Lock Solenoid Bolt | 8 N.m (71 In. Lbs.) | - |
| Park Pawl Lock Rod Guide Plate Bolt | 10 N.m (89 In. Lbs.) | - |
| Park Pawl Shaft Plug | 35 N.m (26 Ft. Lbs.) | - |
| Reaction Shaft Support Bolts | 12 N.m (9 Ft. Lbs.) | - |
| Shifter Control Support Nuts | 10 N.m (89 In. Lbs.) | - |
| Torque Converter Bolts | 42 N.m (31 Ft. Lbs.) | - |
| Transmission Dust Cover Bolt | 54 N.m (40 Ft. Lbs.) | - |
| Transmission Oil Cooler Line Bolt | 48 N.m (35 Ft. Lbs.) | - |
| Transmission Oil Line Bracket to Engine Bolt | 30 N.m (22 Ft. Lbs.) | - |
| Transmission Oil Fill Plug | 39 N.m (29 Ft. Lbs.) | - |
| Transmission Oil Heater Mounting Bolts | 28 N.m (21 Ft. Lbs.) | - |

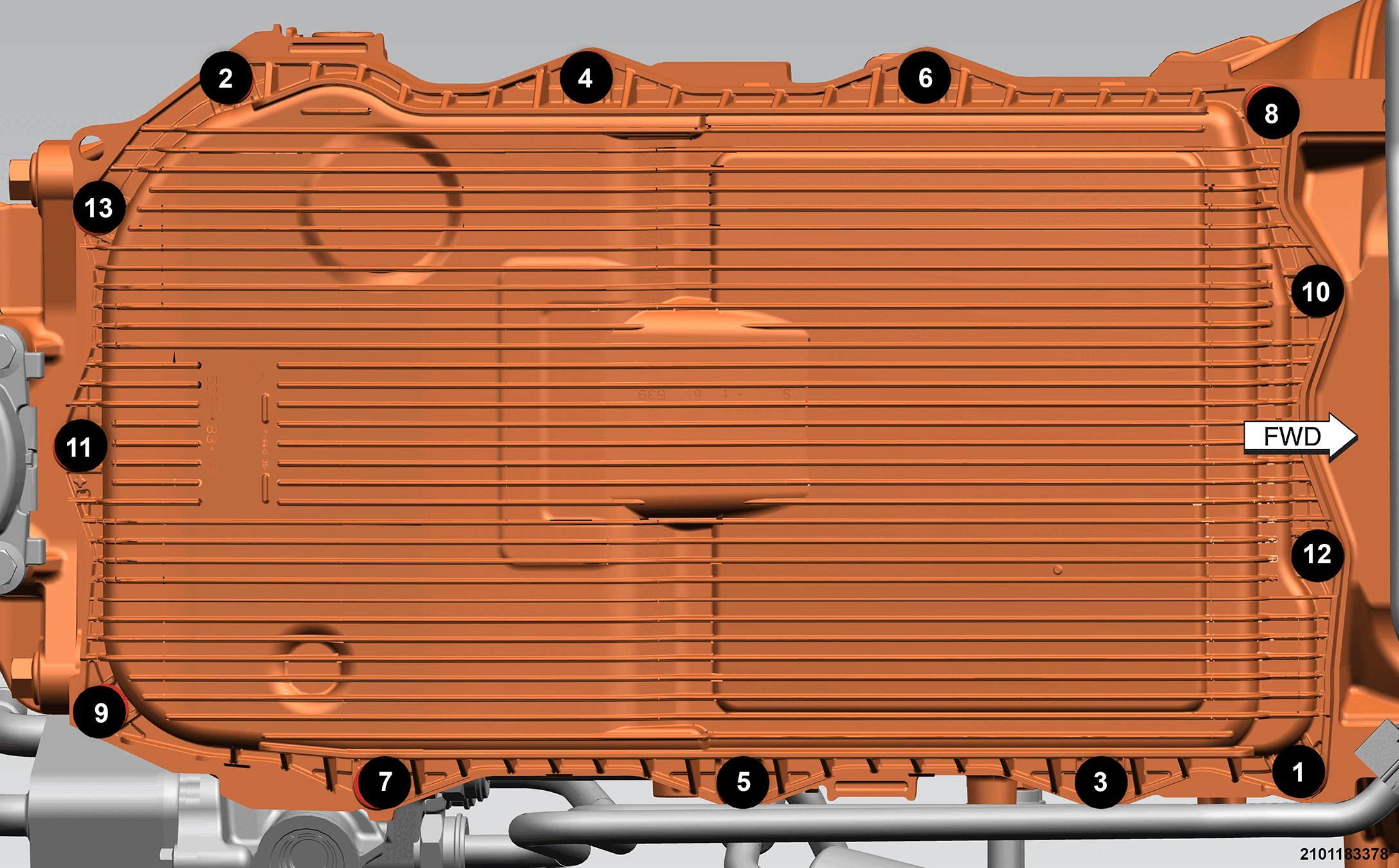

| Transmission Oil Pan Bolt | 11 N.m (8 Ft. Lbs.) | Tightening Sequence |
| Transmission Oil Pan Drain Plug | 9 N.m (80 In. Lbs.) | - |
| Transmission Mount Bracket bolts (2WD) | 63 N.m (46 Ft. Lbs.) | - |
| Transmission Mount to Transmission Crossmember Nuts | 63 N.m (46 Ft. Lbs.) | - |
| Transmission Mount to Transfer Case or Transmission Bracket Bolts | 63 N. m (46 Ft. Lbs.) | - |
| Transmission Oil Pump Assembly to Case Bolts | Torque Procedure:
|
If removed, NEW fasteners must be installed and tightened to specifications. |
| Transmission Oil Pump Housing to Cover Bolt | Torque Procedure:
|
If removed, NEW fasteners must be installed and tightened to specifications. |
| Transmission Output Flange nut | 69 N.m (51 Ft. Lbs.) | If removed, NEW fastener must be installed and tightened to specifications. |
| Valve Body Bolt | 8 N. m (71 In. Lbs.) | Tightening Sequence |
