Side Belly Pan

Courtesy of CHRYSLER GROUP, LLC

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

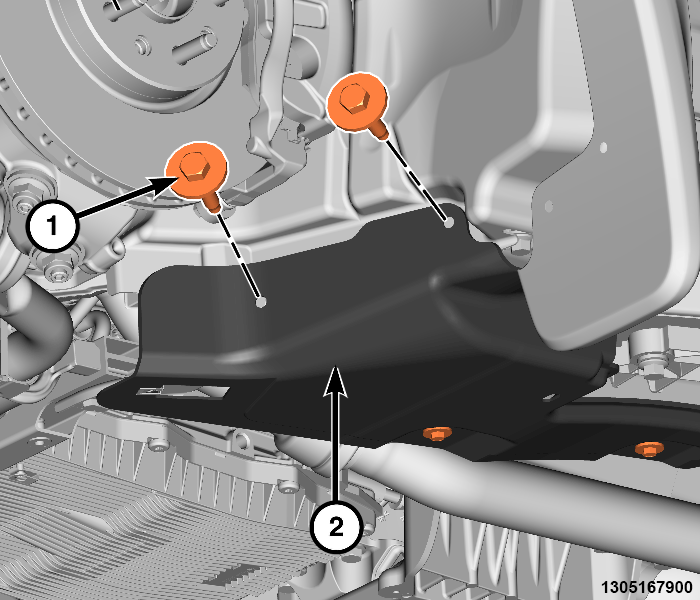

2. Remove the front fasteners for the side belly pan.

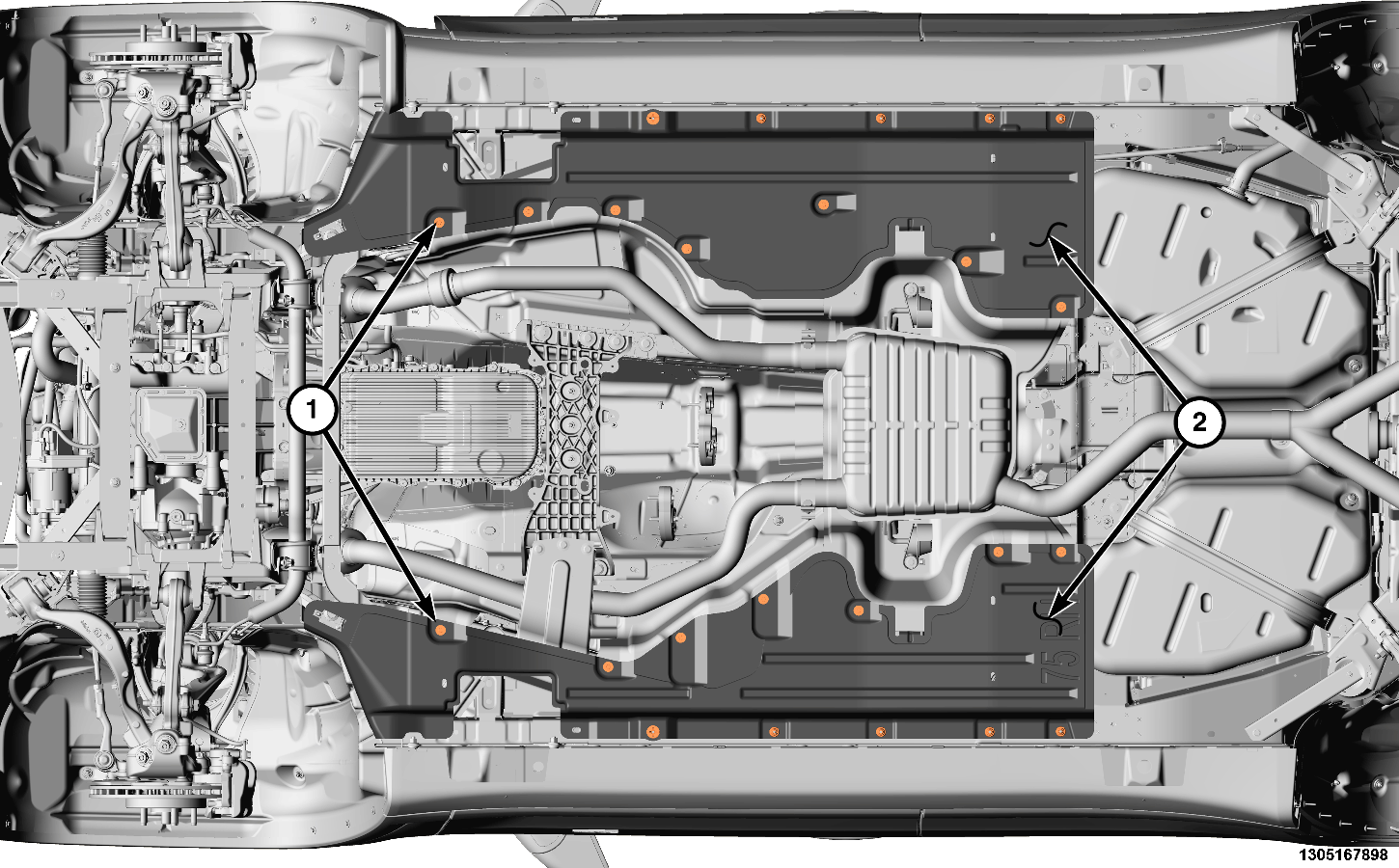

3. Remove the fasteners for the side being worked on and remove the side belly pan.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Side Belly Pan

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
