Instrument Panel End Speaker

REMOVAL

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the defroster grille. Refer to GRILLE, DEFROSTER, REMOVAL AND INSTALLATION .

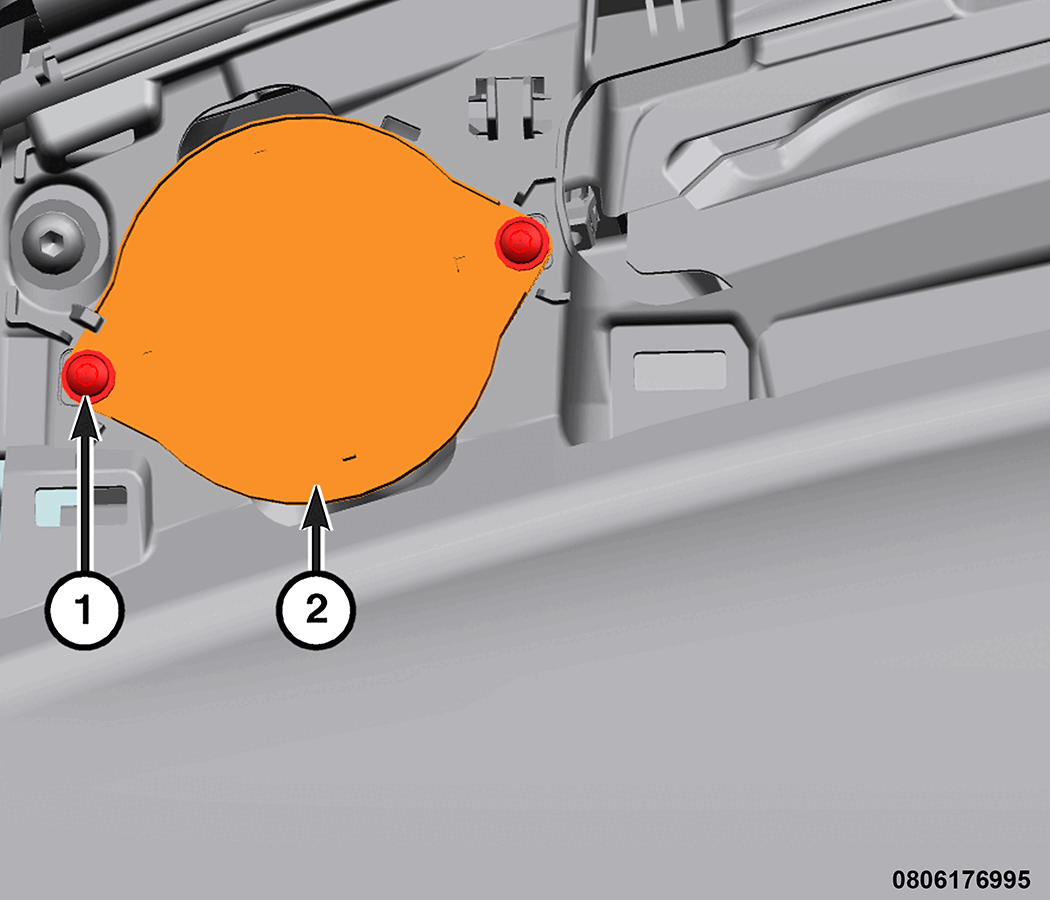

3. Remove the two speaker mounting fasteners (1).
4. Disconnect the wire harness connector and remove the speaker (2).

INSTALLATION

1. Connect the wire harness connector and position the speaker (2) onto the instrument panel.
2. Install and securely tighten the two speaker mounting fasteners (1).

   Courtesy of CHRYSLER GROUP, LLC

3. Install the defroster grille. Refer to GRILLE, DEFROSTER, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
