B2768-12-Right Impact Pressure Sensor-Circuit Short To Battery: Notes
For a complete RESTRAINT SYSTEMS wiring diagram, refer to the appropriate System Wiring Diagram article
.
 Courtesy of CHRYSLER GROUP, LLC
|

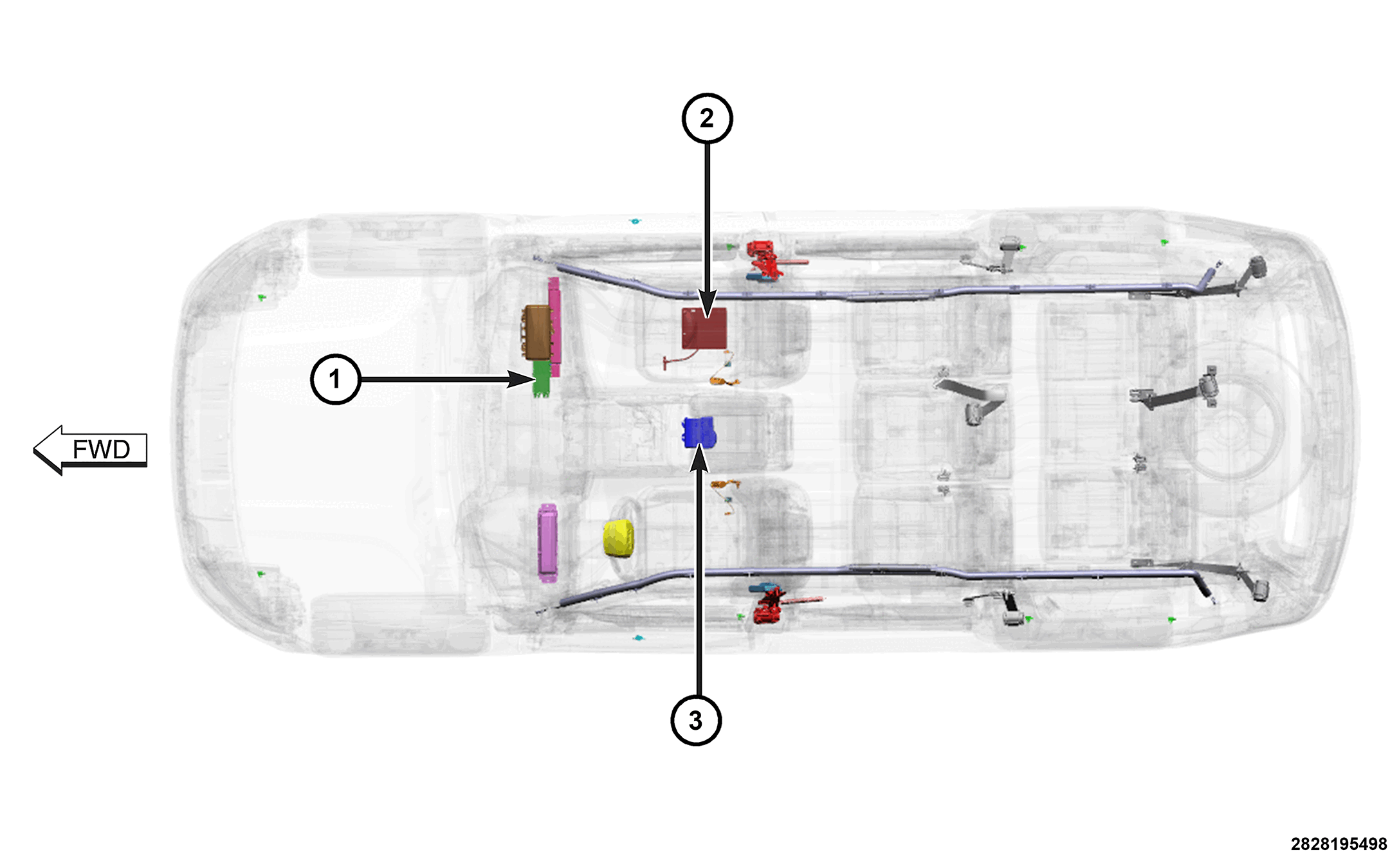

| CALL OUT |
DESCRIPTION |
| 1 |
Occupant Restraint Controller (ORC) |
| 2 |
Occupant Classification Module (OCM) |
| 3 |
Global Telematics Box Module (TBM2) |
 Courtesy of CHRYSLER GROUP, LLC
|
| CALL OUT |
DESCRIPTION |
| 1 |
Global Telematics Box Module (TBM2) |
| 2 |
Occupant Classification Module (OCM) |
| 3 |
Occupant Restraint Controller (ORC) |
