B0013-13-Passenger Knee Bolster Squib Control-Circuit Open: Notes
For a complete RESTRAINT SYSTEMS wiring diagram, refer to the appropriate System Wiring Diagram article
.
 Courtesy of CHRYSLER GROUP, LLC
|
| CALL OUT |
DESCRIPTION |
| 1 |
Passenger Inflator Knee Airbag Squib |
| 2 |
- Passenger Airbag (PAB) Frontal Squib#1
- Passenger Airbag (PAB) Frontal Squib#2
- Passenger Airbag (PAB) Frontal Squib#3
|
| 3 |
1st Row Right Side Sear Mounted Airbag (Pelvis/Thorax) Squib |
| 4 |
Right Side Curtain Airbag Squib |
| 5 |
Left Side Curtain Airbag Squib |
| 6 |
1st Row Left Side Sear Mounted Airbag (Pelvis/Thorax) Squib |
| 7 |
Driver Airbag (DAB) Frontal Squib #1 |
| 8 |
Driver Airbag (DAB) Frontal Squib #2 |
| 9 |
Driver Airbag (DAB) Frontal Squib #3 |
| 10 |
Driver Inflator Knee Airbag Squib |
 Courtesy of CHRYSLER GROUP, LLC
|
| CALL OUT |
DESCRIPTION |
| 1 |
Driver Inflator Knee Airbag Squib |
| 2 |
- Passenger Airbag (PAB) Frontal Squib#1
- Passenger Airbag (PAB) Frontal Squib#2
- Passenger Airbag (PAB) Frontal Squib#3
|
| 3 |
Driver Airbag (DAB) Frontal Squib #1 |
| 4 |
Driver Airbag (DAB) Frontal Squib #2 |
| 5 |
Driver Airbag (DAB) Frontal Squib #3 |
| 6 |
Passenger Inflator Knee Airbag Squib |
| 7 |
1st Row Left Side Sear Mounted Airbag (Pelvis/Thorax) Squib |
| 8 |
1st Row Right Side Sear Mounted Airbag (Pelvis/Thorax) Squib |
| 9 |
Left Side Curtain Airbag Squib |
| 10 |
Right Side Curtain Airbag Squib |
| 11 |
Occupant Restraint Controller Module |
 Courtesy of CHRYSLER GROUP, LLC
|

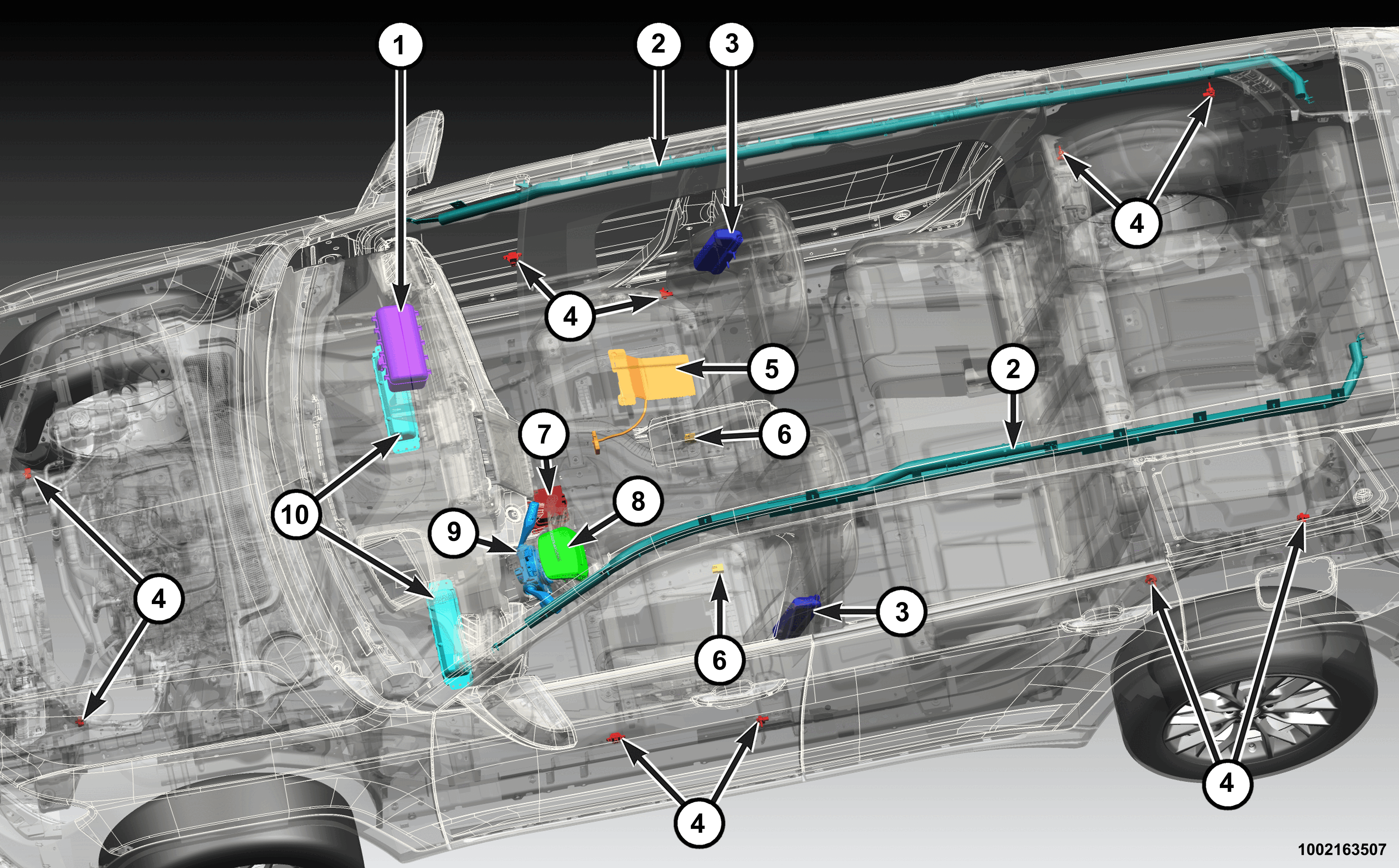

The Passive
restraints include the following major components:
| 1. |
Passenger AirBag (PAB) |
| 2. |
Side Air Bag Inflatable Curtain (SABIC) |
| 3. |
Seat Airbag (SAB) |
| 4. |
Impact Sensor |
| 5. |
Occupant Classification Module (OCM) |
| 6. |
Seat Track Position Sensor (STPS) |
| 7. |
Occupant Restraint Controller (ORC) |
| 8. |
Driver Airbag (DAB) |
| 9. |
Clockspring - Integral to the Steering Column Control Module (SCCM) |
| 10. |
Knee AirBag (KAB) - Driver and Passenger |
