Torque Specifications - Battery System
WARNING: This page is about a different variant/trim than selected.

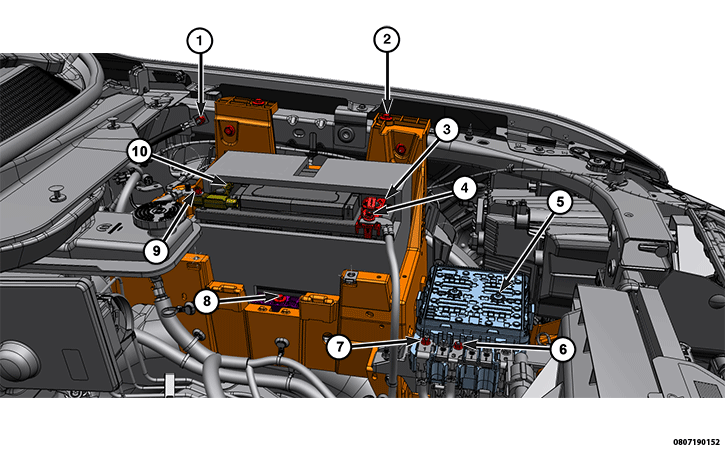

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Battery Negative Lead to Fender | 20 N. m (16 Ft. Lbs.) | - |
| 2 | Battery Tray Bolts | 11 N. m (8 Ft. Lbs.) | - |
| 3 | Battery Positive to Positive Post | 7 N. m (71 In. Lbs.) | - |
| 4 | Battery Positive Cable | 7 N. m (71 In. Lbs.) | - |
| 5 | PDC to Wiring Connector | 4 N. m (35 In. Lbs.) | - |
| 6 | PDC to B+ | 12 N. m (9 Ft. Lbs.) | - |
| 7 | B+ Battery Positive at Power Distribution Center (PDC) | 8 N. m (71 In. Lbs.) | - |
| 8 | Battery Bracket Bolt - Battery Hold Down to Tray | 5 N. m (44 In. Lbs.) | - |
| 9 | Battery Negative Cable to the IBS | 11 N. m (8 Ft. Lbs.) | - |
| 10 | Intelligent Battery Sensor (IBS) Sensor to Negative Post | 5 N. m (44 In. Lbs.) | - |
| - | Auxiliary Battery Cable Nuts | 5 N. m (44 In. Lbs.) | - |
| - | Auxiliary Battery Double Ended Studs | 7 N. m (62 In. Lbs.) | - |
| - | Auxiliary Battery Hold Down Bolt | 5 N. m (44 In. Lbs.) | - |
| - | Battery Negative Cable to Engine Block | 30 N. m (22 Ft. Lbs.) | - |
| - | Dual Battery Switch Module | 9 N. m (80 In. Lbs.) | |
| - | PDC Tray To Cross Beam Nuts | 8 N. m (71 In. Lbs.) | - |
| - | Power Control Relay (PCR) | 9 N. m (80 In. Lbs.) | - |
