12 Volt Battery System: Notes
WARNING: This page is about a different variant/trim than selected.
DESCRIPTION
 Courtesy of CHRYSLER GROUP, LLC
|

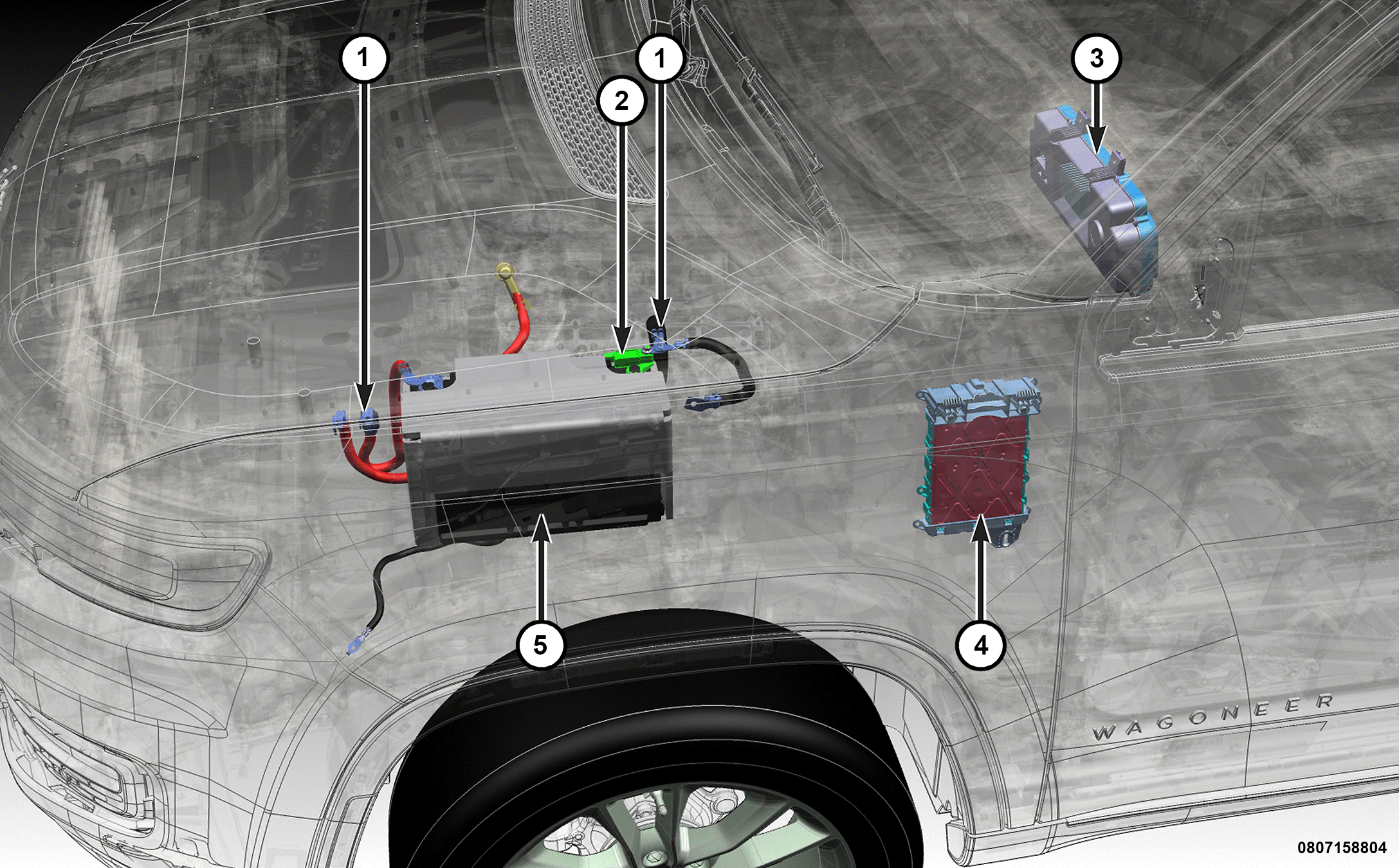

COMPONENT INDEX
| 1. |
Battery Cables |
| 2. |
Intelligent Battery Sensor (IBS) |
| 3. |
Instrument Panel Cluster (IPC) |
| 4. |
Body Control Module (BCM) |
| 5. |
Battery |
