Torque Specifications - Starting System - 6.4L
WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

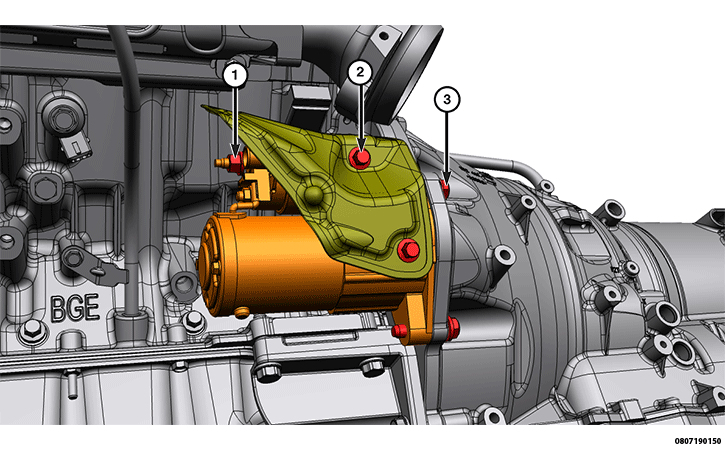

| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENTS |
| 1 |
Starter B+ Nut |
11 N. m (8 Ft. Lbs.) |
- |
| 2 |
Starter Heat Shield Bolts |
11 N. m (8 Ft. Lbs.) |
- |
| 3 |
Starter Bolt to Transmission |
63 N. m (46 Ft. Lbs.) |
- |
