Remote Start Antenna

WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM, 5.7L & 6.4L .

Lower the headliner far enough to gain access to the Remote Start Antenna (RSA). Refer to HEADLINER, REMOVAL AND INSTALLATION .

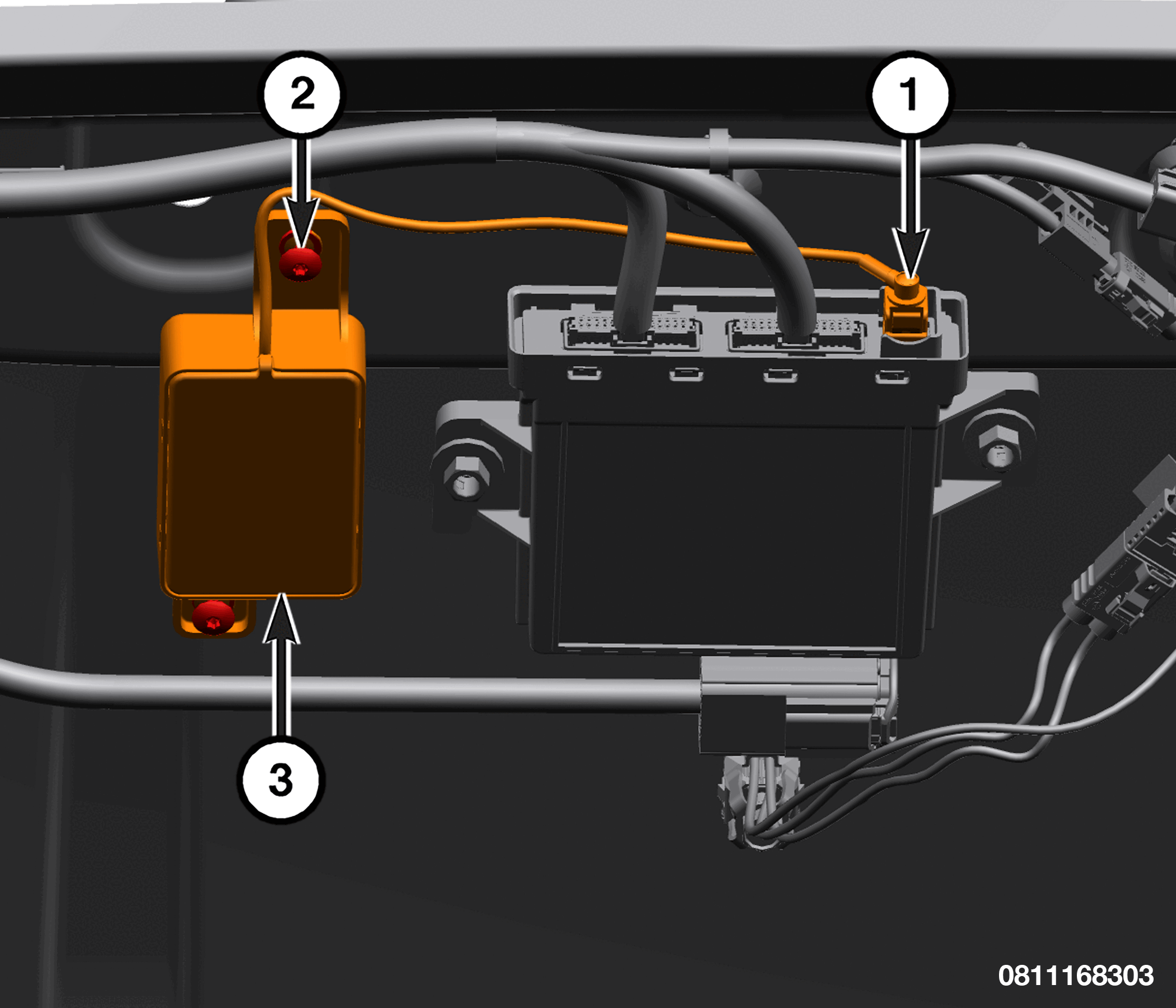

Courtesy of CHRYSLER GROUP, LLC

1 - Remote Start Antenna Connection

2 - Remote Start Antenna Push Pin

3 - Remote Start Antenna

Disconnect the RSA wire harness connector.
Remove the two fasteners.
Remove the RSA from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
