Torque Specifications - Charging System - 6.4L

WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

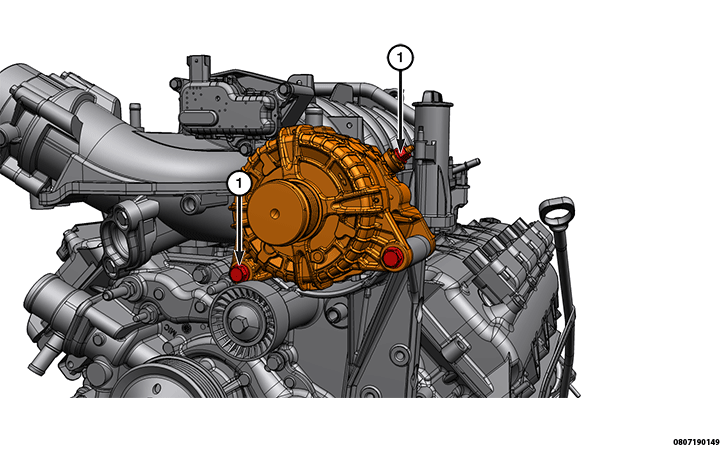

GC0204367Courtesy of CHRYSLER GROUP, LLC
CALLOUT DESCRIPTION SPECIFICATION COMMENTS
1 Alternator B+ Nut 6.4L 18 N. m (13 Ft. Lbs.)  -
2 Alternator M10 Bolts 6.4L 55 N. m (41 Ft. Lbs.)  -
