Torque Specifications - Engine Sensors
WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

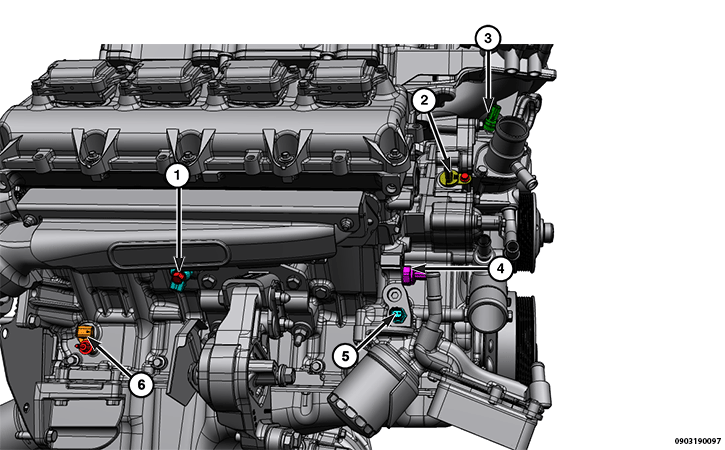

ENGINE SENSORS (1 OF 2)
| CALLOUT | DESCRIPTION | N.m | COMMENT |
|---|---|---|---|
| 1 | Knock Sensor to Cylinder Block Bolt | 20 N.m (15 Ft. Lbs.) | Do not apply any sealant, thread-locker or adhesive to the fastener. Poor sensor performance may result. |
| 2 | Camshaft Position (CMP) Sensor to Cylinder Head Bolt | 12 N.m (9 Ft. Lbs.) | - |
| 3 | Sensor to Water Pump | 31 N.m (23 Ft. Lbs.) | - |
| 4 | Engine Oil Pressure Sensor | 15 N.m (11 Ft. Lbs.) | - |
| 5 | Engine Oil Temperature | 50 N.m (37 Ft. Lbs.) | - |
| 6 | Crankshaft Position (CKP) Sensor to Cylinder Block Bolt | 12 N.m (9 Ft. Lbs.) | - |

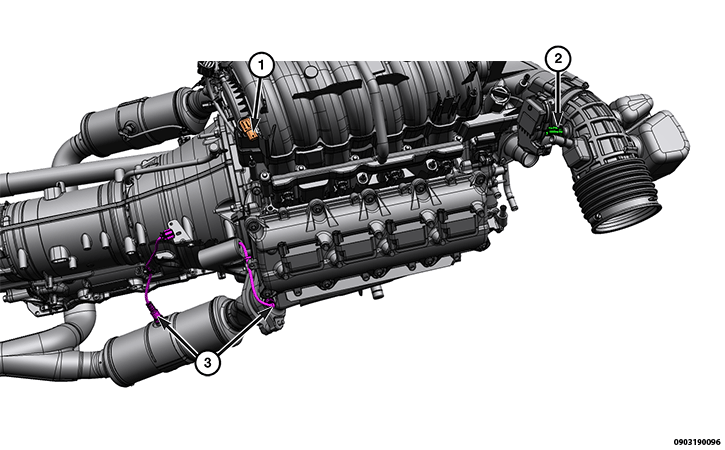

ENGINE SENSORS (2 OF 2)
| CALLOUT | DESCRIPTION | N.m | COMMENT |
|---|---|---|---|
| 1 | Manifold Absolute Pressure (MAP) Sensor | 1/4 Turn | - |
| 2 | Intake Air Temperature (IAT) Sensor | 1/4 Turn | - |
| 3 | Exhaust Oxygen (O2) Sensors | 50 N.m (37 Ft. Lbs.) | - |
