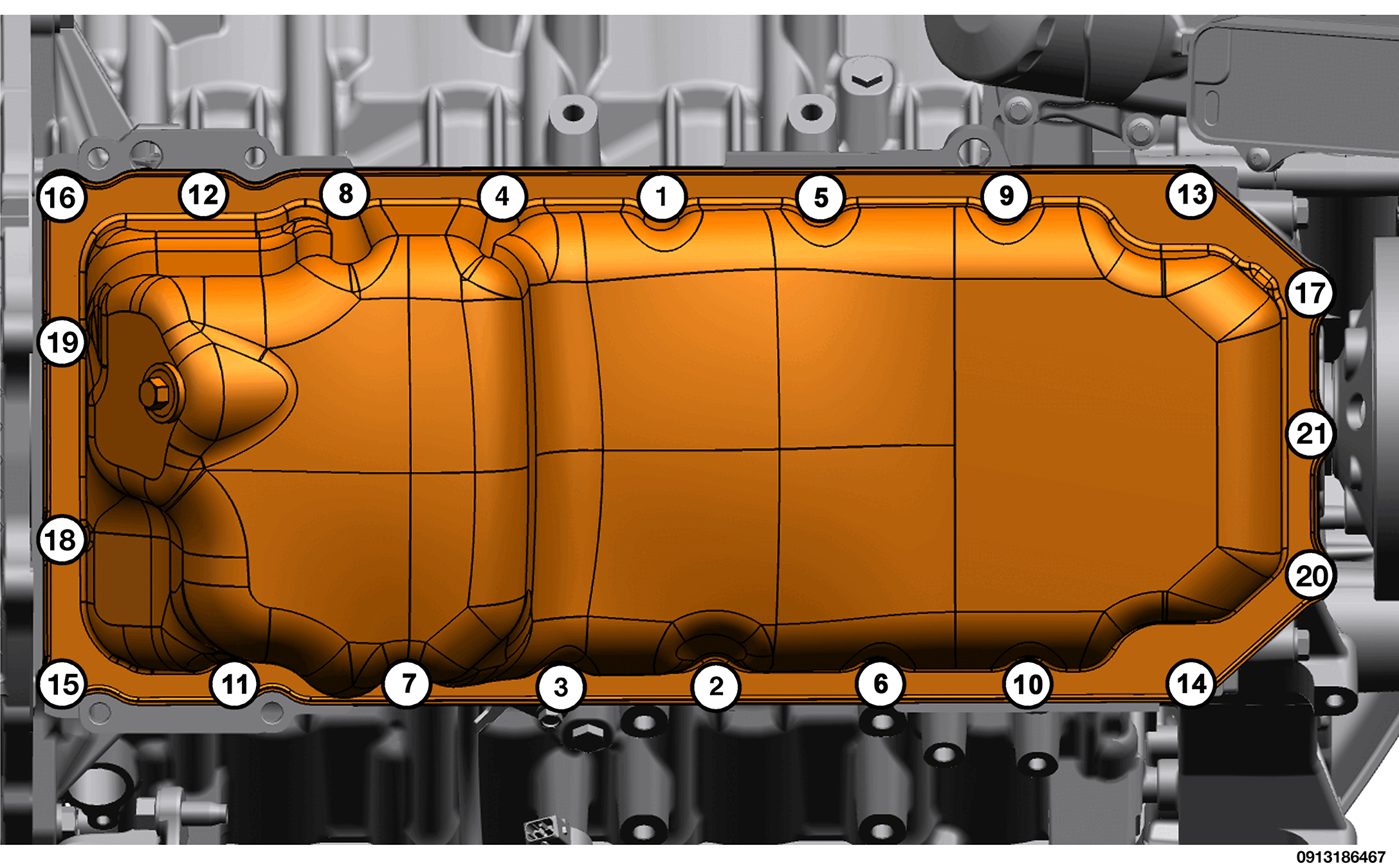

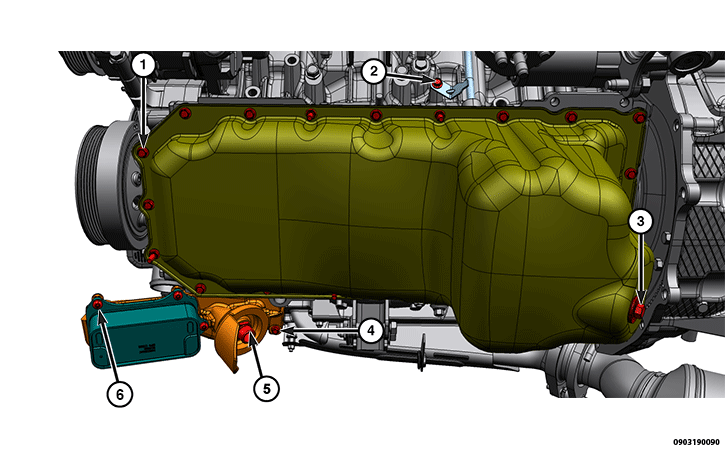

OIL PAN / OIL COOLER / OIL FILTER
OIL PAN / OIL COOLER / OIL FILTER
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Oil Pan to Cylinder Block Bolts/Studs | 12 N.m (9 Ft. Lbs.) in sequence | Tightening Sequence |
| 2 | Oil Dipstick Tube to Block Bolt | 12 N.m (9 Ft. Lbs.) | - |
| 3 | Oil Pan Drain Plug to Oil Pan | 34 N.m (25 Ft. Lbs.) | - |
| 4 | Oil Cooler Adapter to Cylinder Block Bolts | 12 N.m (9 Ft. Lbs.) | - |
| 5 | Engine Oil Filter Adapter Connector | 34 N.m (25 Ft. Lbs.) | - |
| 6 | Oil Cooler Adapter to Engine Oil Cooler Bolt | 13 N.m (10 Ft. Lbs.) | - |
| - | Engine Oil Filter to Adapter | 14 N.m (10 Ft. Lbs.) | - |

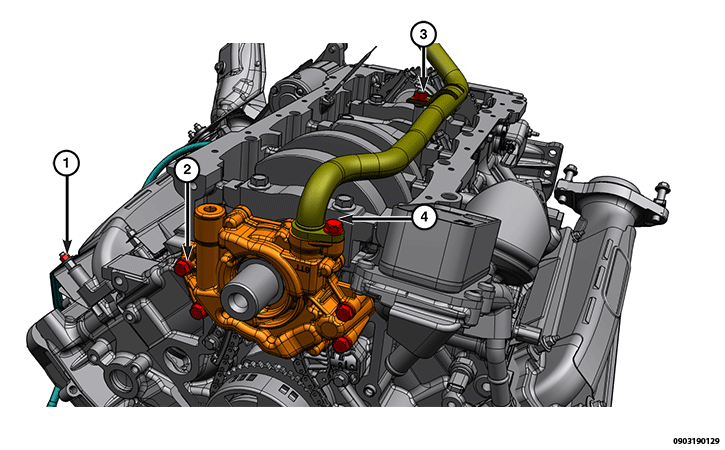

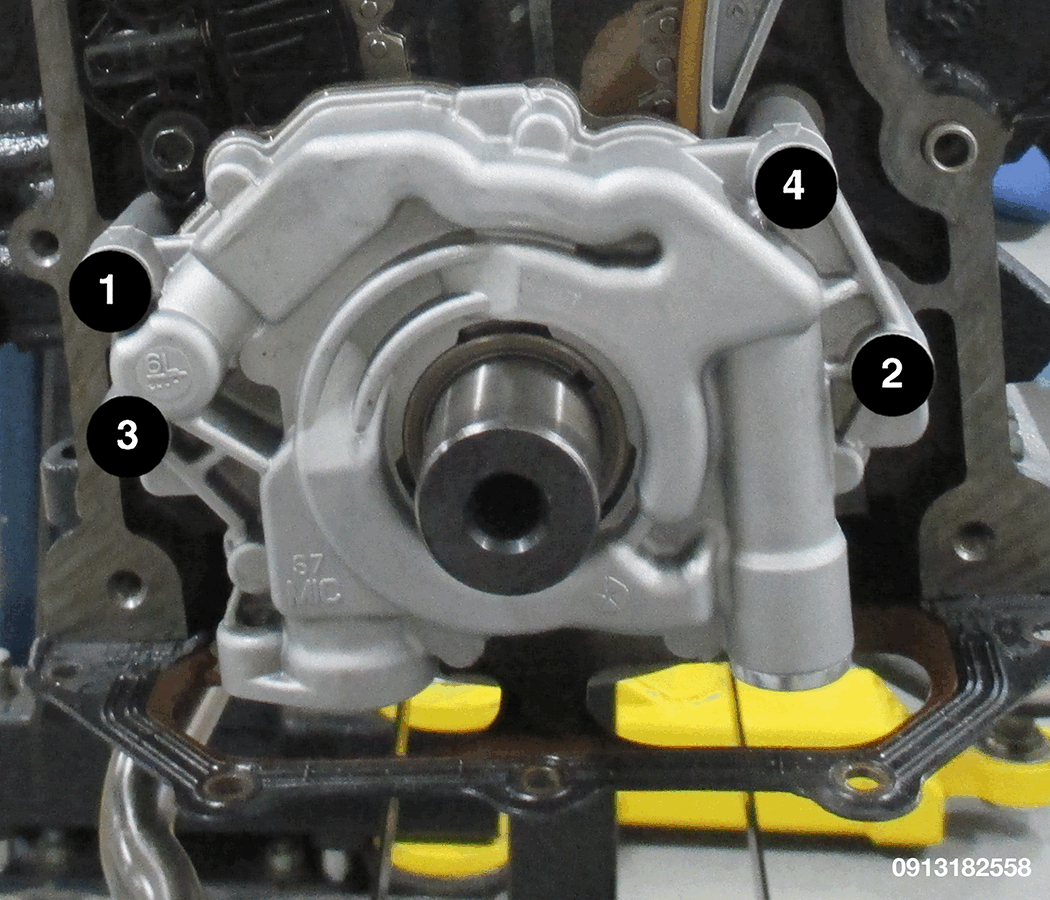

OIL PUMP / OIL PUMP PICKUP
OIL PUMP / OIL PUMP PICKUP
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Heat Shield and Dipstick to Exhaust Manifold Nut | 10 N.m (89 In. Lbs.) | - |
| 2 | Oil Pump to Cylinder Block Bolts | 32 N.m (24 Ft. Lbs.) in sequence | Tightening Sequence |
| 3 | Oil Pump Pickup Tube to Cylinder Block Nut | 28 N.m (21 Ft. Lbs.) | - |
| 4 | Oil Pump Pickup Tube to Cylinder Block Bolt | 22 N.m (16 Ft. Lbs.) | - |
