Torque Specifications - Engine Block

WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

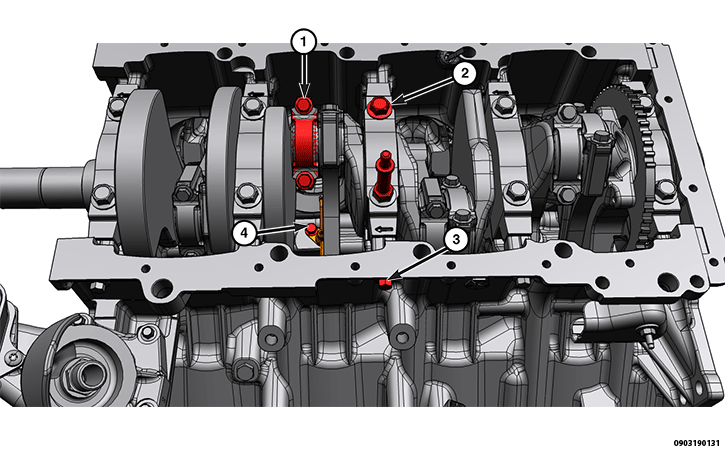

GC0205770Courtesy of CHRYSLER GROUP, LLC
ENGINE BLOCK

CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Connecting Rod Cap Connecting Rod Bolts Torque Procedure:
  • Step 1 - Tighten bolts to 40 N.m (30 Ft. Lbs.)
  • Step 2 - Using a torque angle gauge, torque all bolts an additional 90°
 -
2 Main Bearing Cap to Cylinder Block Bolts Torque Procedure:
  • Step 1 - Hand tighten all bolts
  • Step 2 - Tighten bolts to 28 N.m (21 Ft. Lbs.) in sequence
  • Step 3 - Using a torque angle gauge, torque all bolts an additional 120° in sequence

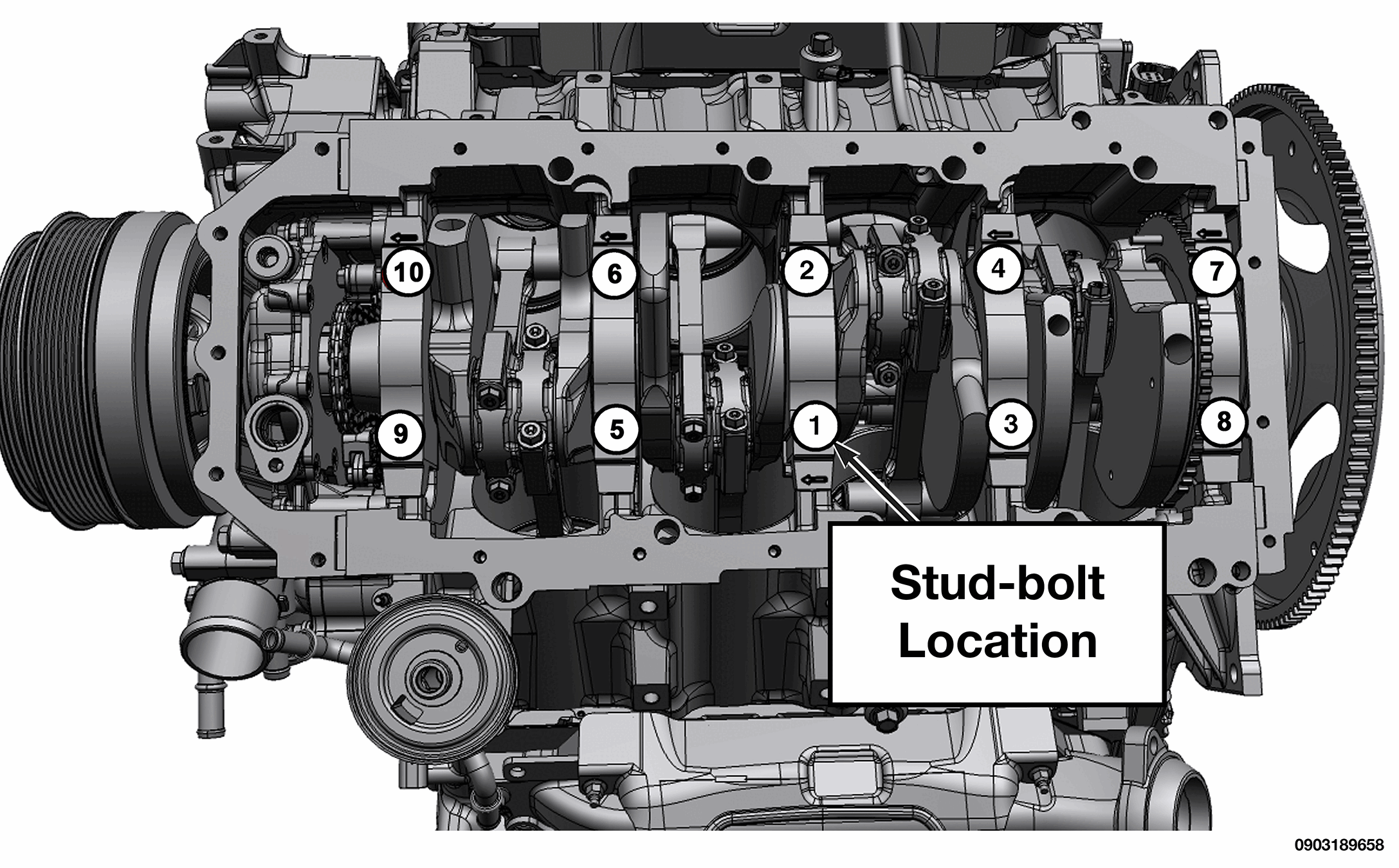

 Tightening Sequence
GC0205257Courtesy of CHRYSLER GROUP, LLC
3 Main Bearing Cap to Cylinder Block Bolts
NOTE:

Torque the main bearing cap bolts before the cross bolts

31 N.m (23 Ft. Lbs.) in sequence 		 Tightening Sequence
GC0185915Courtesy of CHRYSLER GROUP, LLC
4 Piston Oil Cooler Jet to Engine Block Bolt 13 N.m (10 Ft. Lbs.)  -
- Oil Galley Plug (3/8 NPT) 27 N.m (20 Ft. Lbs.)  -
- Coolant Drain Plug (1/4 - 18 NPT) 34 N.m (25 Ft. Lbs.)  -
- Coolant Drain Plug (3/8 NPT) 27 N.m (20 Ft. Lbs.)  -
- Lifter Guide to Cylinder Block Bolts 12 N.m (9 Ft. Lbs.)  -
- Multiple Displacement Solenoid (MDS) to Cylinder Block Bolt 11 N.m (8 Ft. Lbs.)  -
- Multiple Displacement Solenoid (MDS) to Cylinder Block Stud Bolt 11 N.m (8 Ft. Lbs.)  -

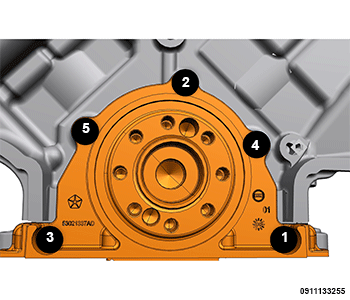

- Rear Seal Retainer to Cylinder Bloc Bolts 13 N.m (10 Ft. Lbs.) in sequence  Tightening Sequence
GC0185963Courtesy of CHRYSLER GROUP, LLC
