Engine Assembly
WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If the engine has experienced a catastrophic failure, THE INTAKE MANIFOLD MUST BE REPLACED!

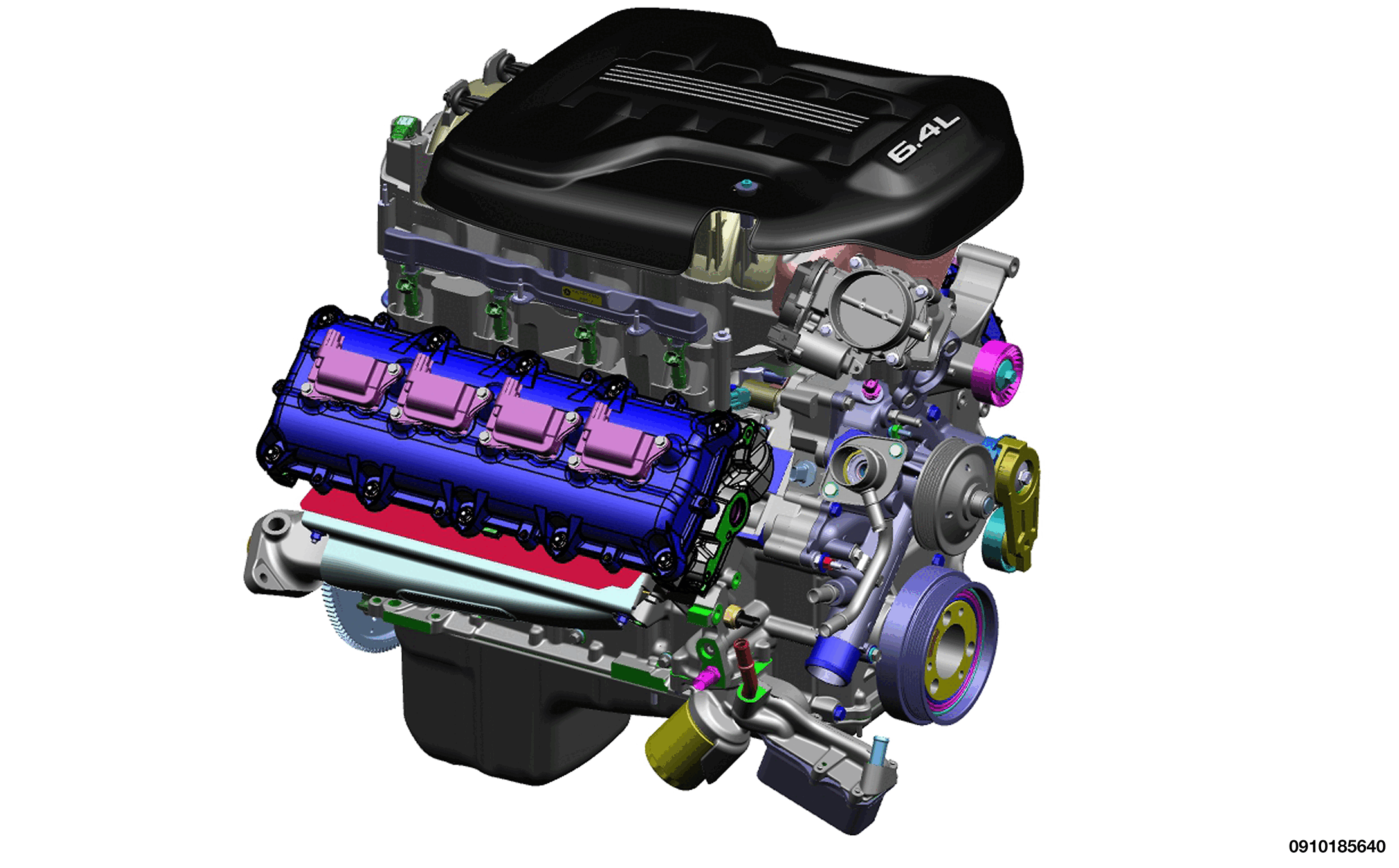

The 6.4L V-8 gasoline engine incorporates a light weight, deep skirt, cast iron block with aluminum heads. The valvetrain configuration consists of a single camshaft, hydraulic roller tappets, overhead splayed valves, and two spark plugs per cylinder with a hemispherical style combustion chamber.
The cylinders are numbered from front to rear, and are arranged as follows:
- Left Cylinder Bank = 1, 3, 5, 7
- Right Cylinder Bank = 2, 4, 6, 8
The engine firing order is as follows:
- Firing Order = 1-8-4-3-6-5-7-2
