Engine Cover: Removal
WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

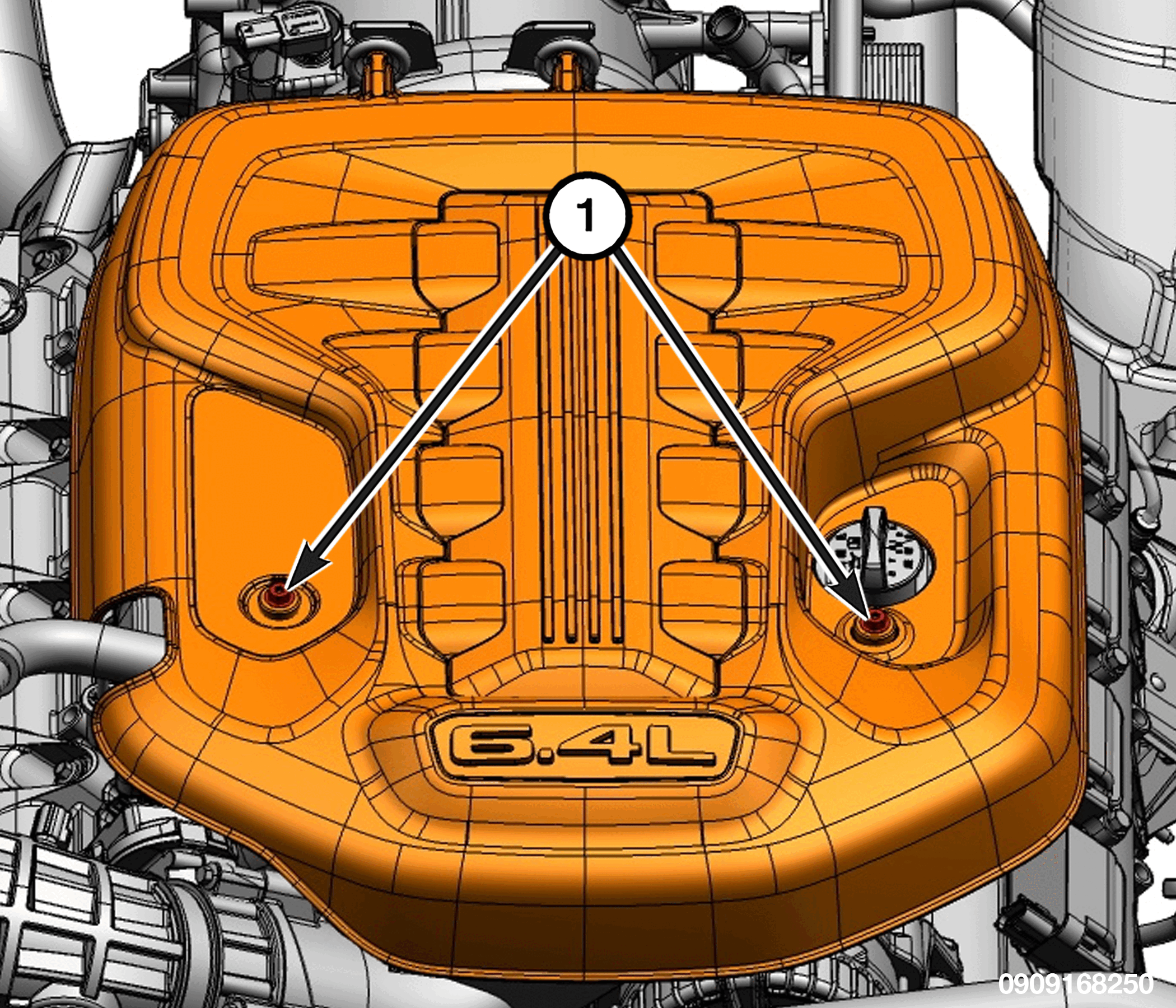

- Remove the engine cover bolts.
 Courtesy of CHRYSLER GROUP, LLC
|

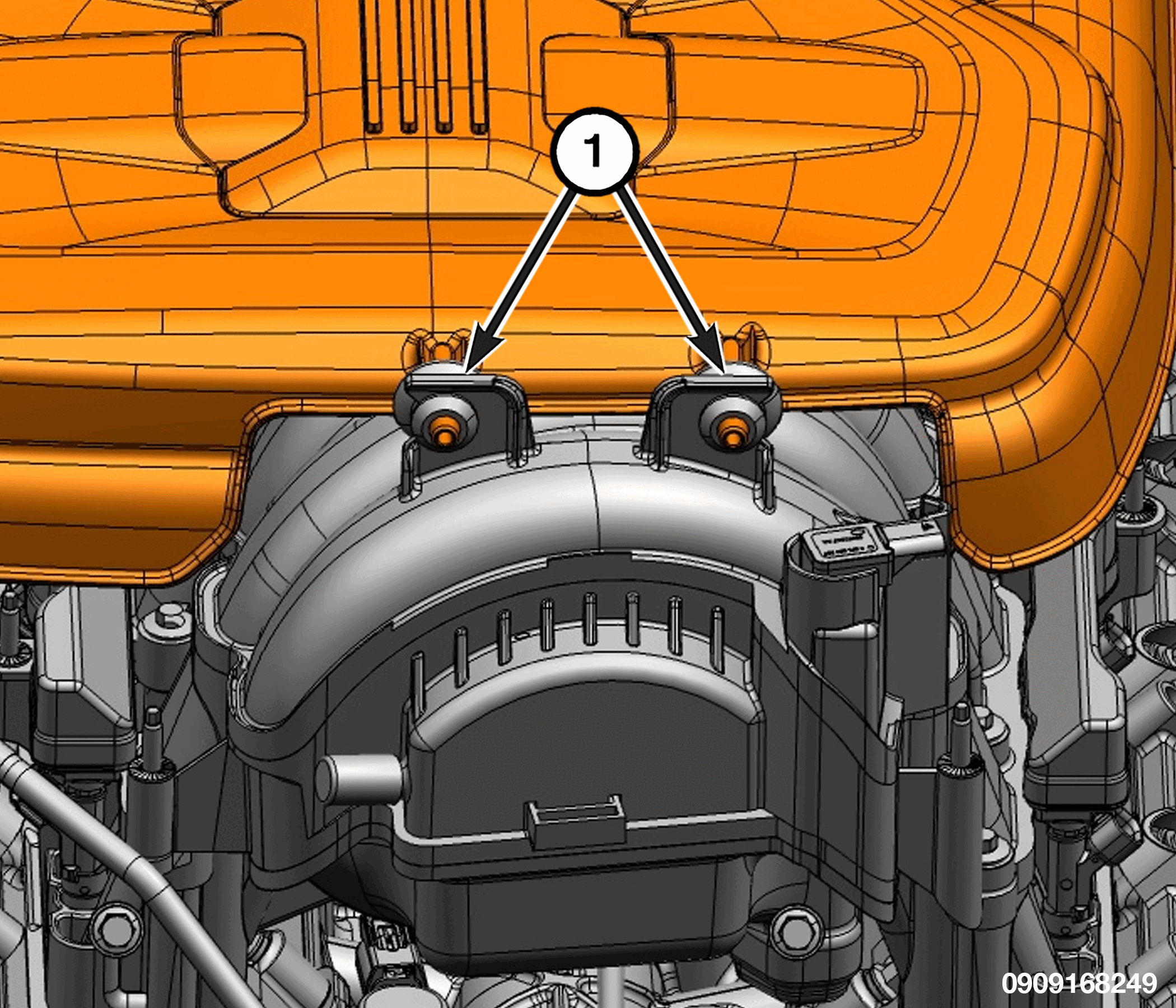

- Slightly raise the front of the engine cover and slide forward to remove the rear engine cover pegs from the grommets on the rear of the intake manifold.
- Remove the engine cover.
