Low Temperature Cooling System: Notes
WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer L and 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

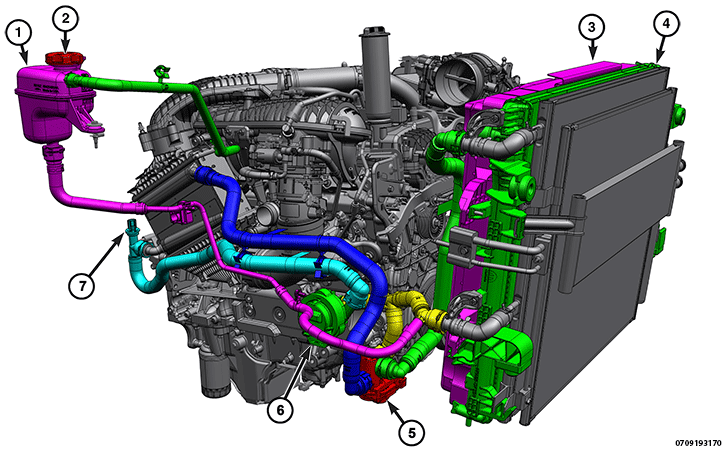

| 1 - Low Pressure Pressurized Coolant Bottle | 5 - 3-Way Valve |
| 2 - Low Pressure Pressurized Coolant Bottle Cap | 6 - Auxiliary Coolant Pump |
| 3 - Cooling Fan | 7 - Charge Air Cooler (CAC) Temperature Sensor |
| 4 - Radiator |
DESCRIPTION
The low temperature cooling system is a separate low pressure (5 psi) system. The function of the system is for cooling of the turbocharger bearings and charge air cooler.
OPERATION
The coolant temperature flowing into and out of the low temperature radiator is monitored through two hard-wired temperature sensors. Heat induced in the cooling system is dissipated as the coolant passes through the low temperature radiator. The cooling fan can be operated to aid in dissipating heat. When the engine is running heat will build in the turbocharger. The low temperature cooling system will operate to reduce turbocharger bearing temperature and cool the charge air cooler which reduces the temperature of the air entering the engine.
