Oil Pressure Sensor
WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
Oil Pressure Sensor

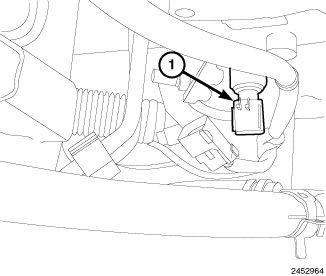

The oil pressure sensor (1) uses the following three Powertrain Control Module (PCM) circuits:
- Signal circuit to the PCM
- Sensor ground circuit from the PCM
- 5 volt reference circuit from the PCM
The oil pressure sensor returns a voltage signal back to the PCM with reference to oil pressure. Ground for the sensor is supplied by the PCM.
The oil pressure sensor is located on the right front of the engine.
