Right Muffler Heat Shield: Notes

WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the spare tire heat shield. Refer to SHIELD, HEAT, REMOVAL AND INSTALLATION .

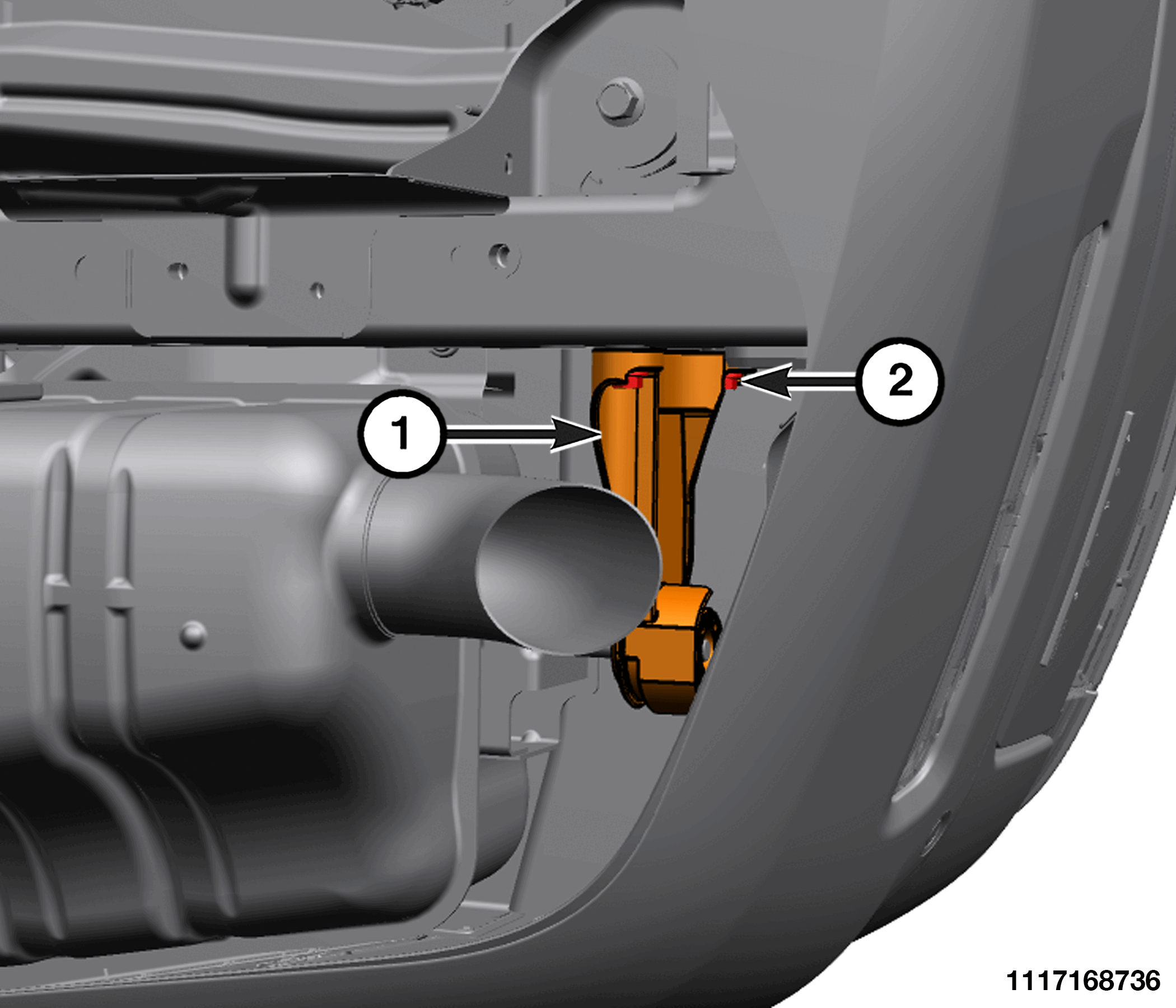

Courtesy of CHRYSLER GROUP, LLC

1 - Exhaust Isolator

2 - Exhaust Isolator Bolts

Remove the exhaust isolator bolts and the exhaust isolator (right side).

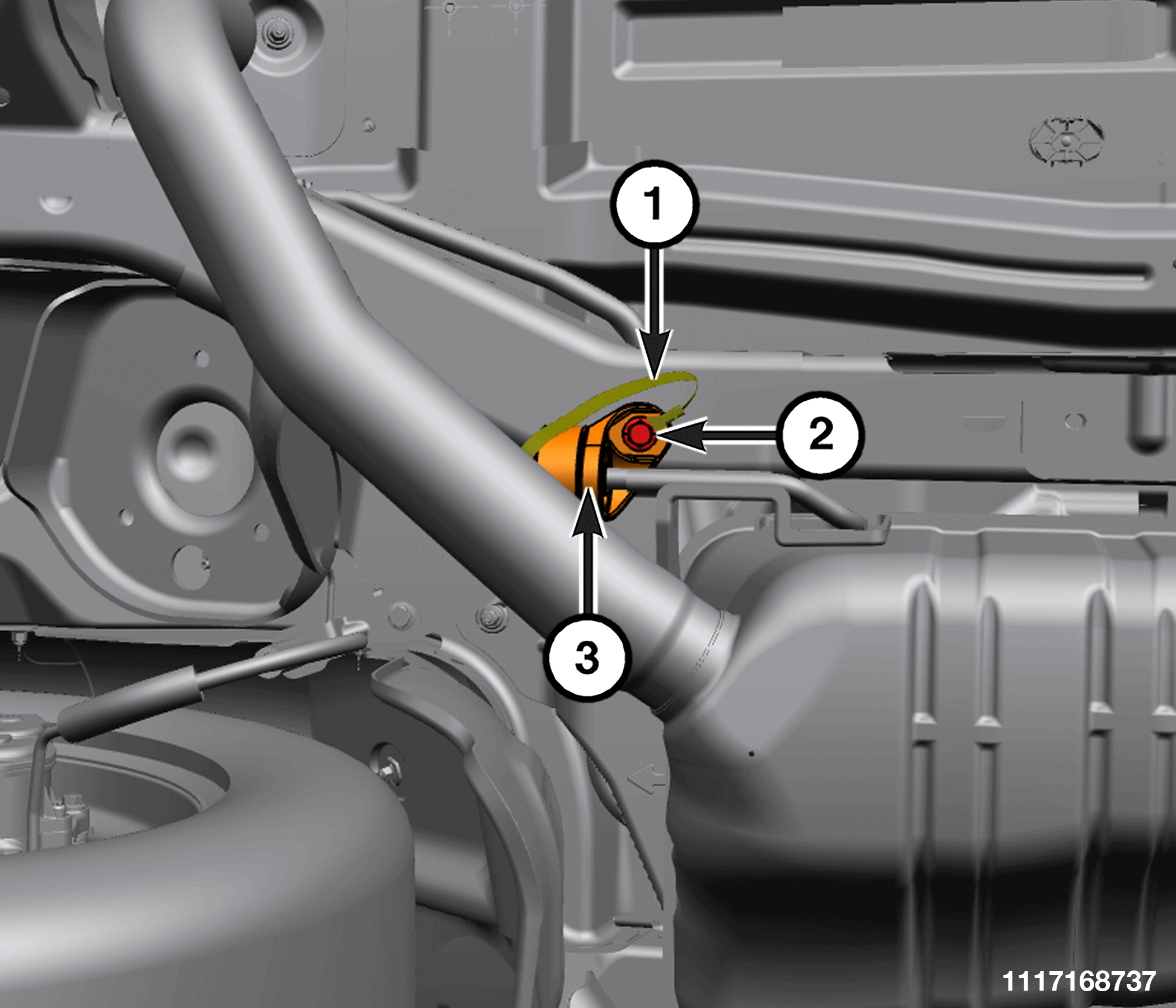

Courtesy of CHRYSLER GROUP, LLC

1 - Ground Strap

2 - Exhaust Isolator Bolt

3 - Exhaust Isolator

Remove the ground strap.
Remove the exhaust isolator bolts and the exhaust isolator.

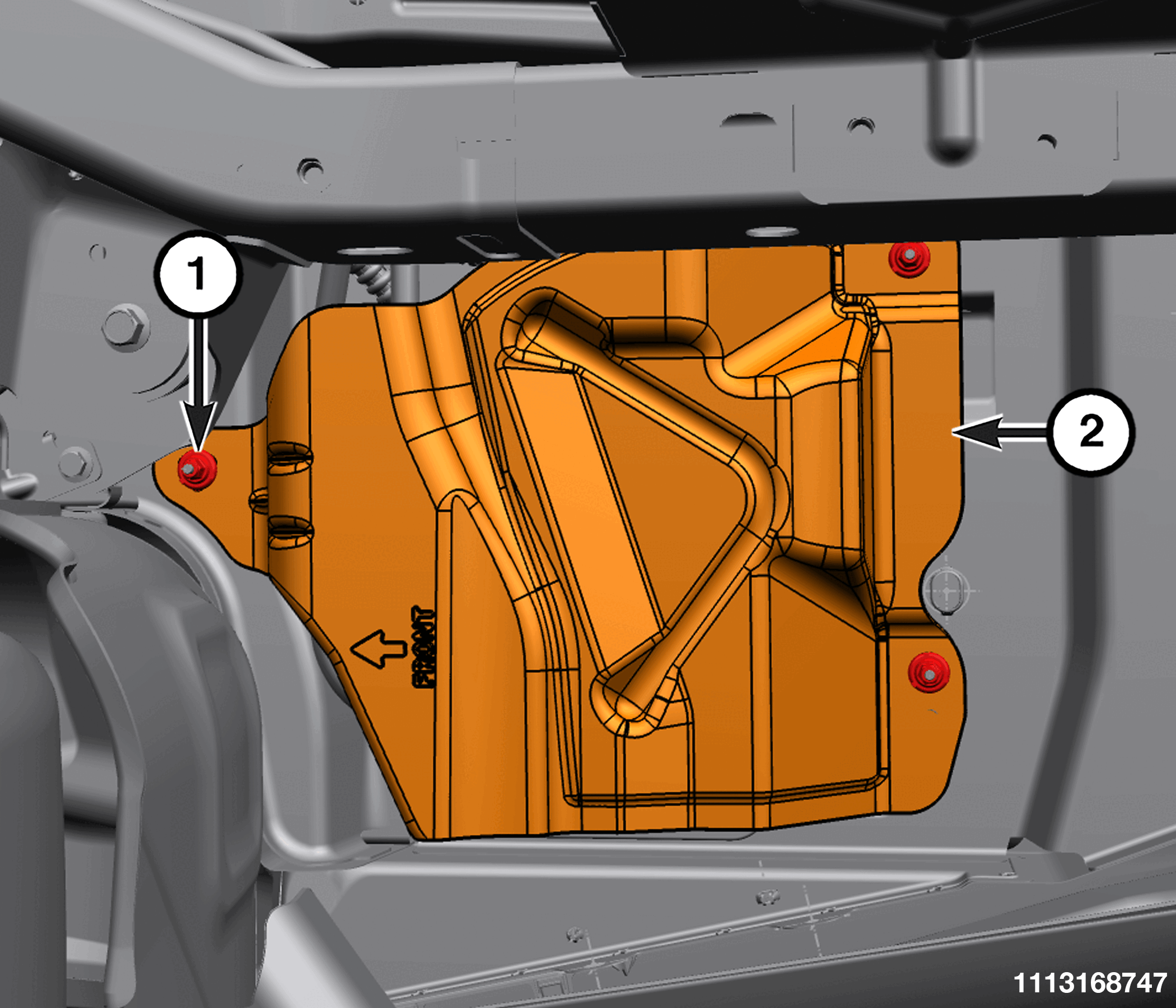

Courtesy of CHRYSLER GROUP, LLC

1 - Right Muffler Heat Shield Nuts

2 - Right Muffler Heat Shield
Remove the right muffler heat shield nuts and the right muffler heat shield by sliding it through the frame and out through the spare tire opening.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
