Left Catalytic Converter Heat Shield: Notes

WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Remove the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

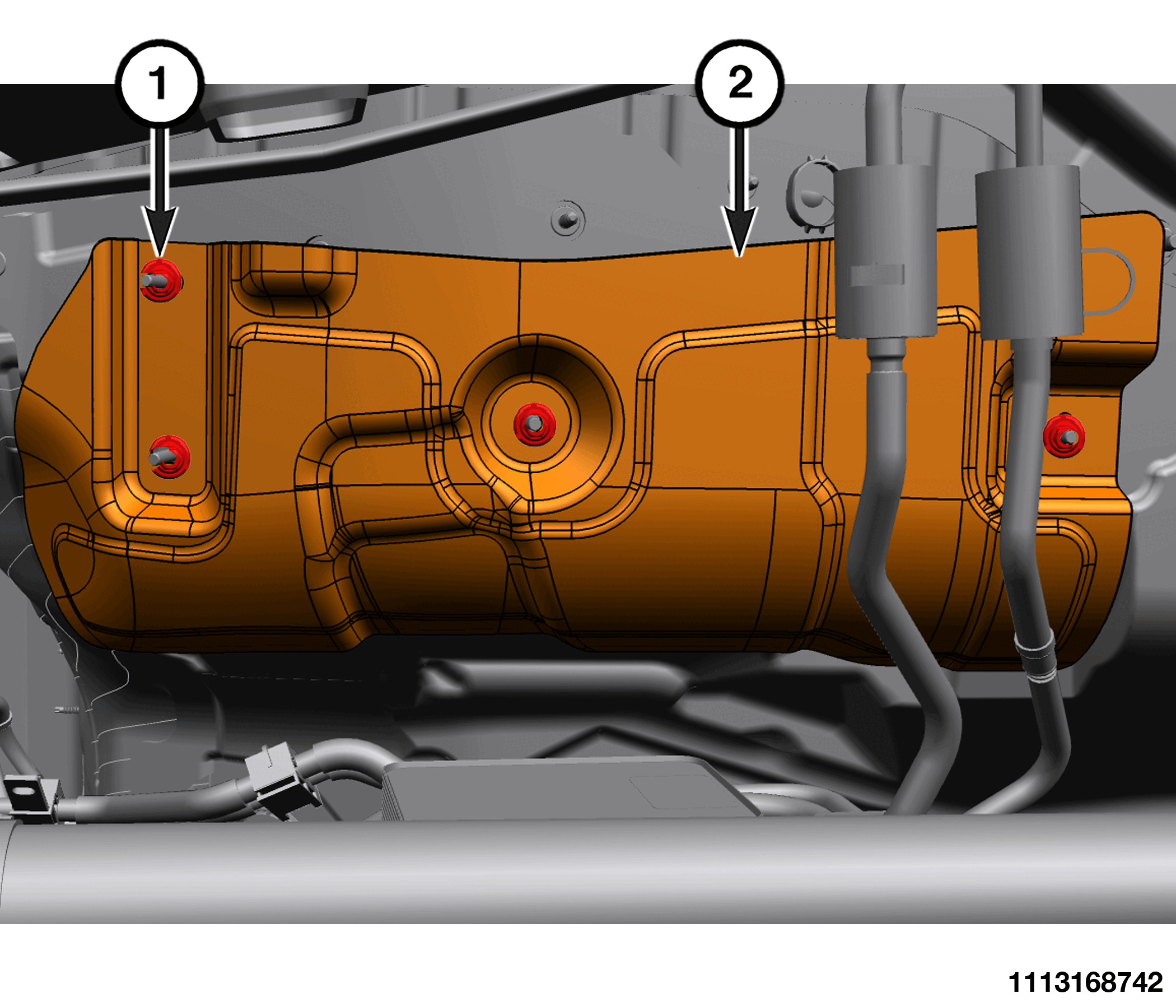

1 - Left Catalytic Converter Heat Shield Nuts

2 - Left Catalytic Converter Heat Shield

Remove the left catalytic converter heat shield nuts and the left catalytic converter heat shield.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
