Exhaust Muffler: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Saturate the clamp nuts with Mopar® Rust Inhibitor and allow 5 minutes for penetration.
3. Remove the spare tire heat shield. Refer to SHIELD, HEAT, REMOVAL AND INSTALLATION .
4. Support the exhaust muffler with a jack stand.

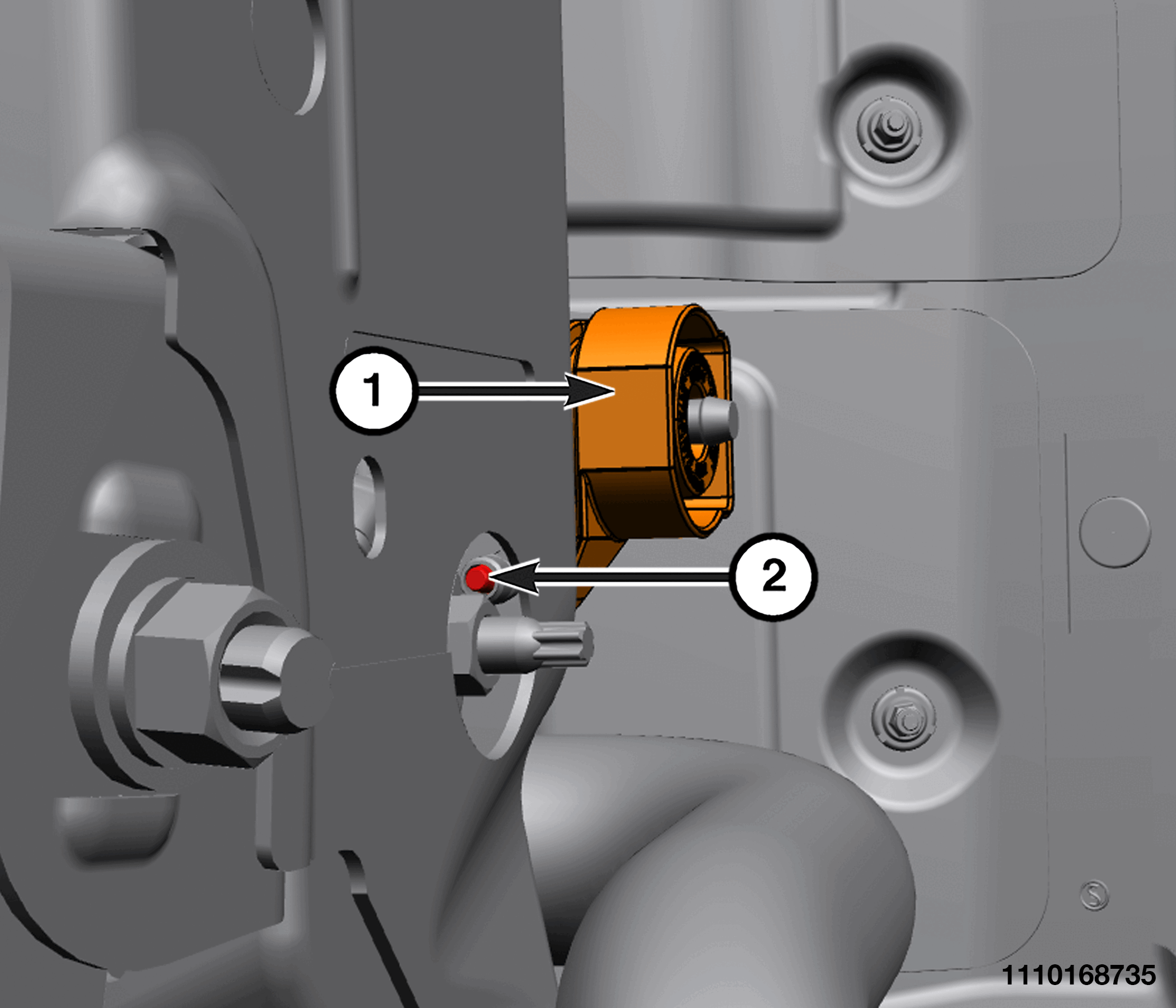

   Courtesy of CHRYSLER GROUP, LLC

   1 - Exhaust Isolator

   2 - Exhaust Isolator Bolts

5. Remove the exhaust isolator bolts and the exhaust isolator (right side).

   Courtesy of CHRYSLER GROUP, LLC

   1 - Ground Strap

   2 - Exhaust Isolator Bolt

   3 - Exhaust Isolator

6. Remove the ground strap.
7. Remove the exhaust isolator bolts and the exhaust isolator.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Exhaust Isolator

   2 - Exhaust Isolator Bolts

8. Remove the exhaust isolator bolts and the exhaust isolator (left side).

   Courtesy of CHRYSLER GROUP, LLC

   1 - Exhaust Isolator

   2 - Exhaust Isolator Bolts

9. Remove the exhaust isolator bolts and the exhaust isolator.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Exhaust Isolator

   2 - Exhaust Isolator Bolt

10. Remove the exhaust isolator bolt and the exhaust isolator.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Muffler To Center Exhaust Pipe Nuts

    2 - Exhaust Muffler

11. Remove the exhaust muffler to the center exhaust pipe nuts.

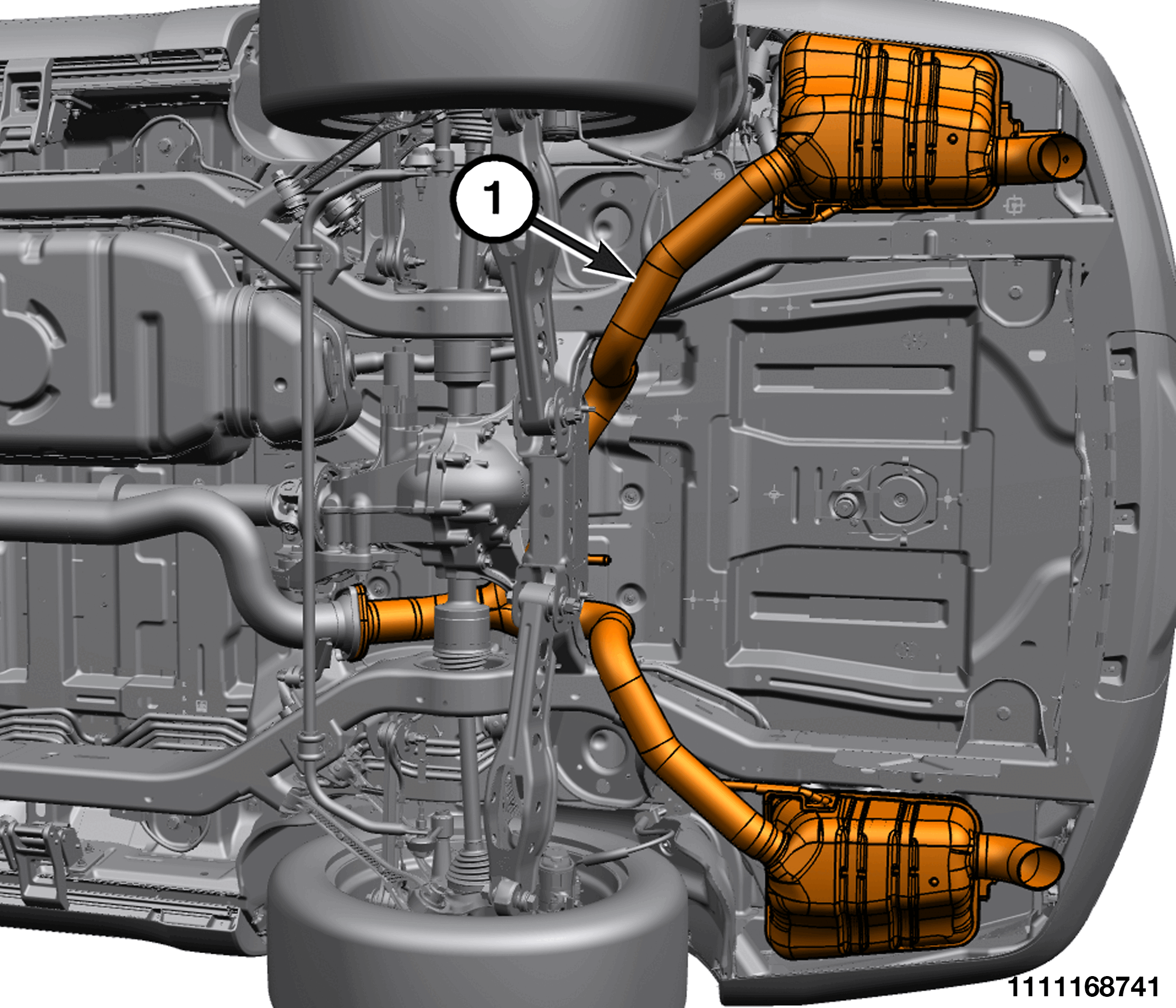

    Courtesy of CHRYSLER GROUP, LLC

    1 - Exhaust Muffler

12. With the help of an assistant, remove the exhaust muffler.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Check the exhaust system for contact with the body panels. A minimum of 25.4 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
• Check the exhaust system for leaks. Refer to EXHAUST LEAK TESTING  .
