PCV Valve
WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
The Positive Crankcase Ventilation (PCV) valve is mounted in the intake manifold.
- Remove the engine cover.
- If equipped, remove the silencer pad.

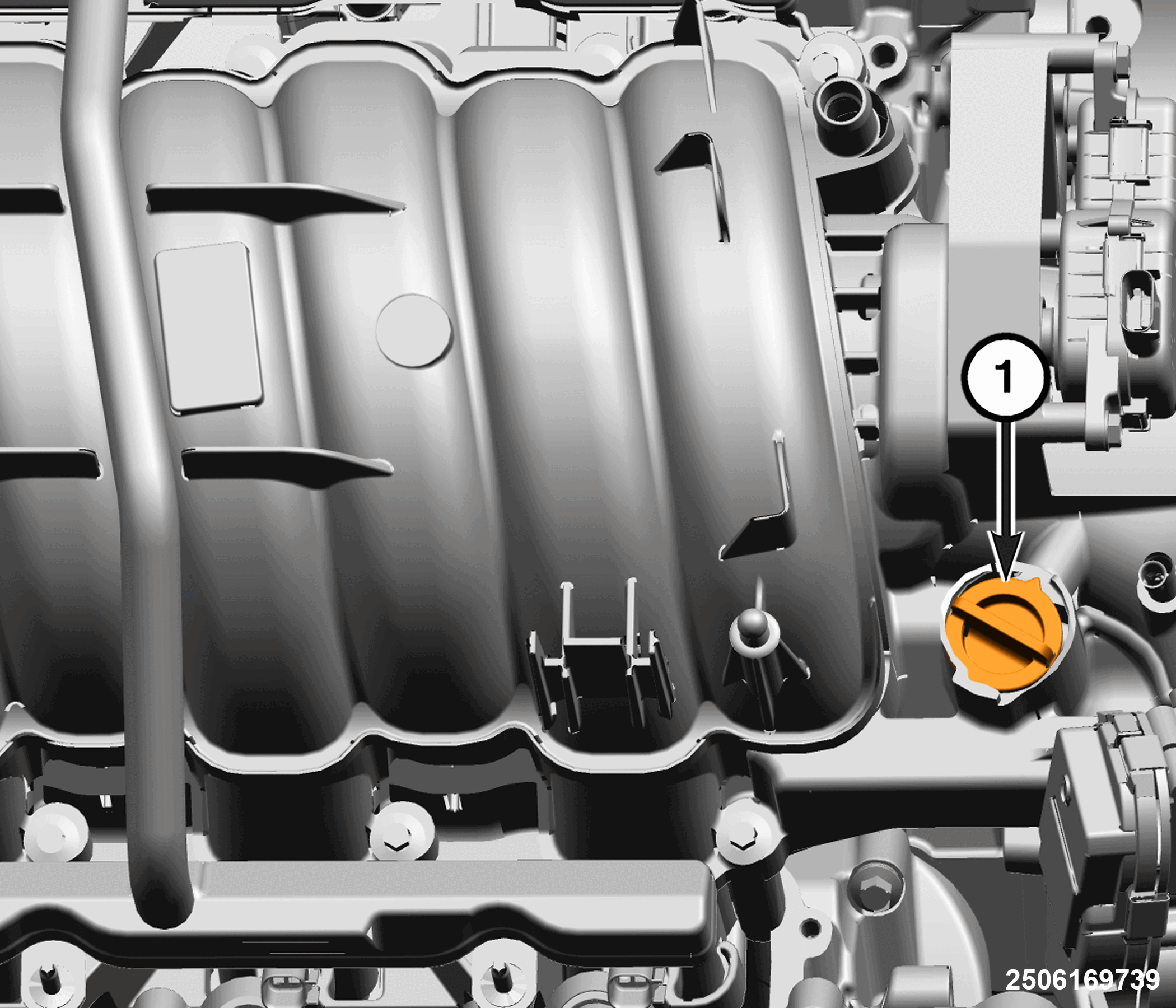

1 - PCV Valve - Rotate the PCV valve counterclockwise 30 degrees then pull up and remove the PCV valve from the intake manifold.
1 - PCV Valve 2 - O-Rings 3 - Locating Tabs - Check the condition of the two PCV valve O-rings, replace if necessary and lubricate with clean engine oil.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
