Torque Specifications - Wheel Speed Sensor
 Courtesy of CHRYSLER GROUP, LLC
|

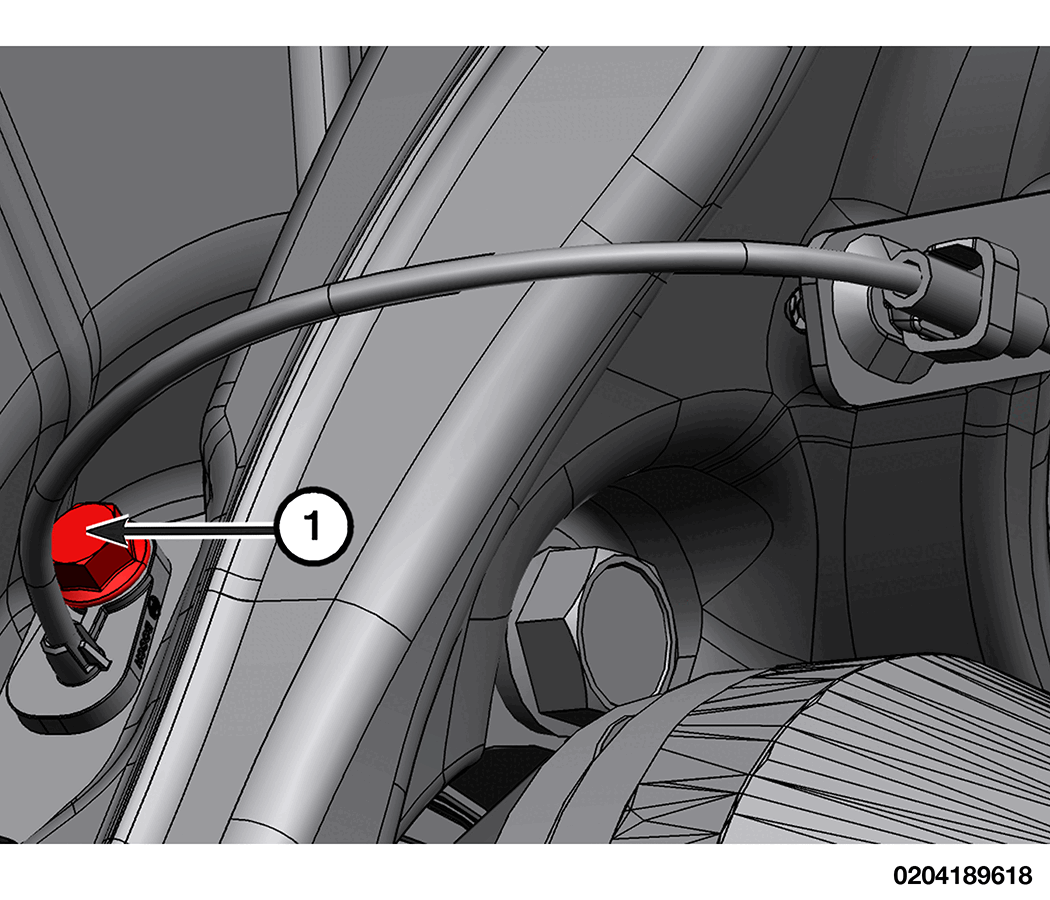

WHEEL SPEED SENSOR (1 OF 2)
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |
| 1 |
Wheel Speed Sensor Bolt |
6 N. m (53 In. Lbs.) |
- |
 Courtesy of CHRYSLER GROUP, LLC
|

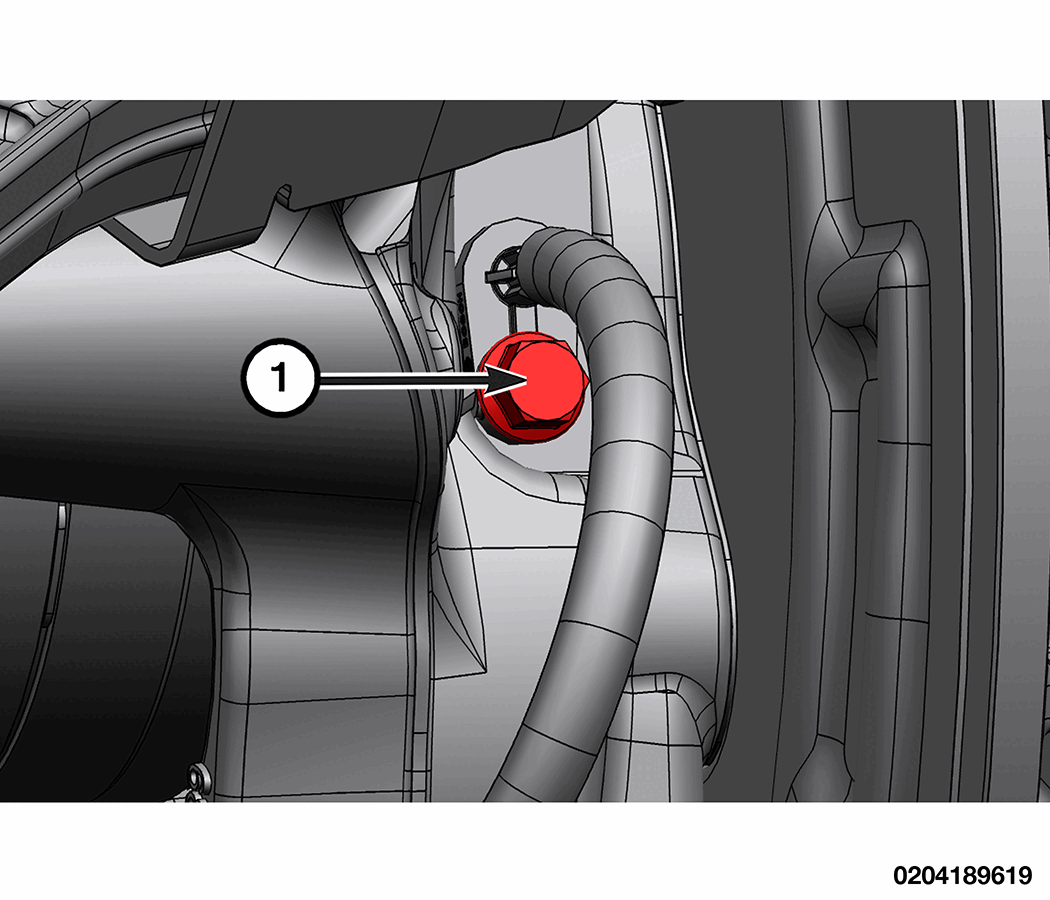

WHEEL SPEED SENSOR (2 OF 2)
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |
| 1 |
Wheel Speed Sensor Bolt |
6 N. m (53 In. Lbs.) |
- |
