Torque Specifications - Front Brakes

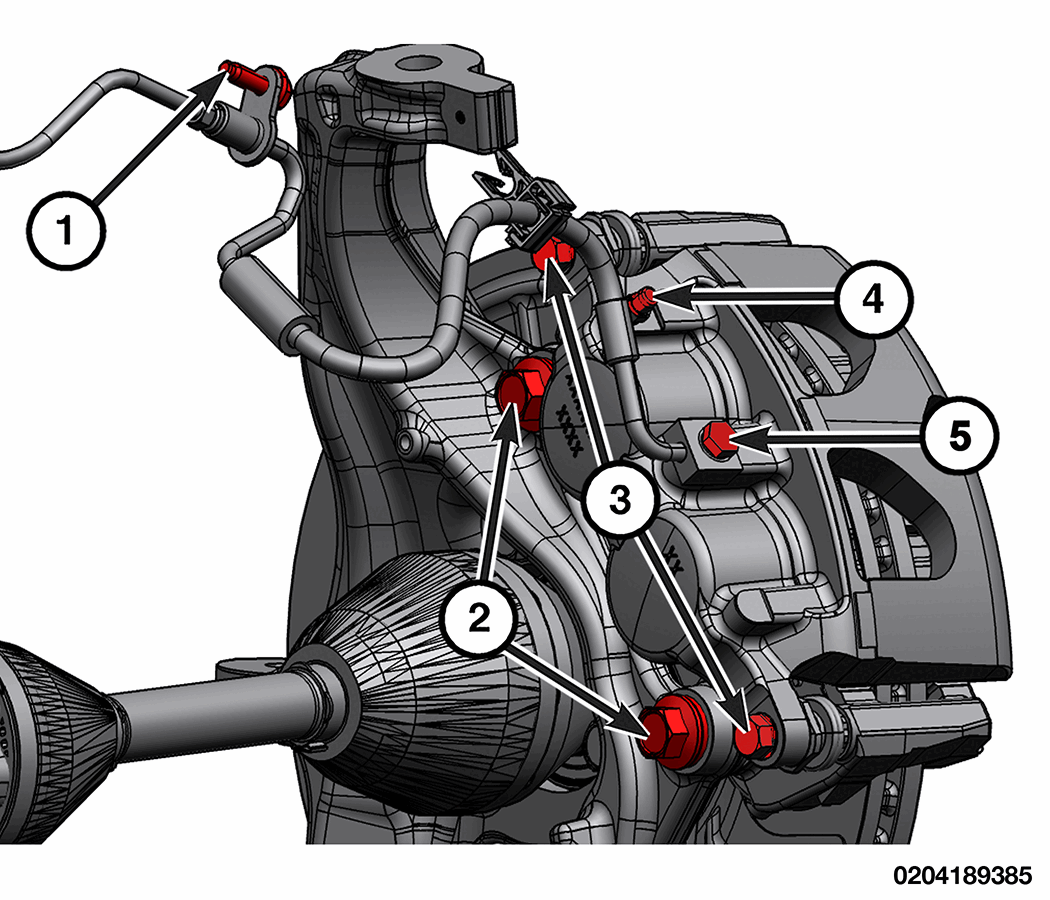

FRONT BRAKES (1 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
| 1 | Brake Hose Bracket Bolt | 12 N. m (9 Ft. Lbs.) | - |
| 2 | Front Caliper Adapter Bolts | 80 + 55° N. m (59 + 55° Ft. Lbs.) | - |
| 3 | Front Caliper Bolts | 75 N. m (55 Ft. Lbs.) | - |
| 4 | Bleed Screw | 10 N. m (7 Ft. Lbs.) | - |
| 5 | Banjo Bolt | 35 N. m (26 Ft. Lbs.) | - |

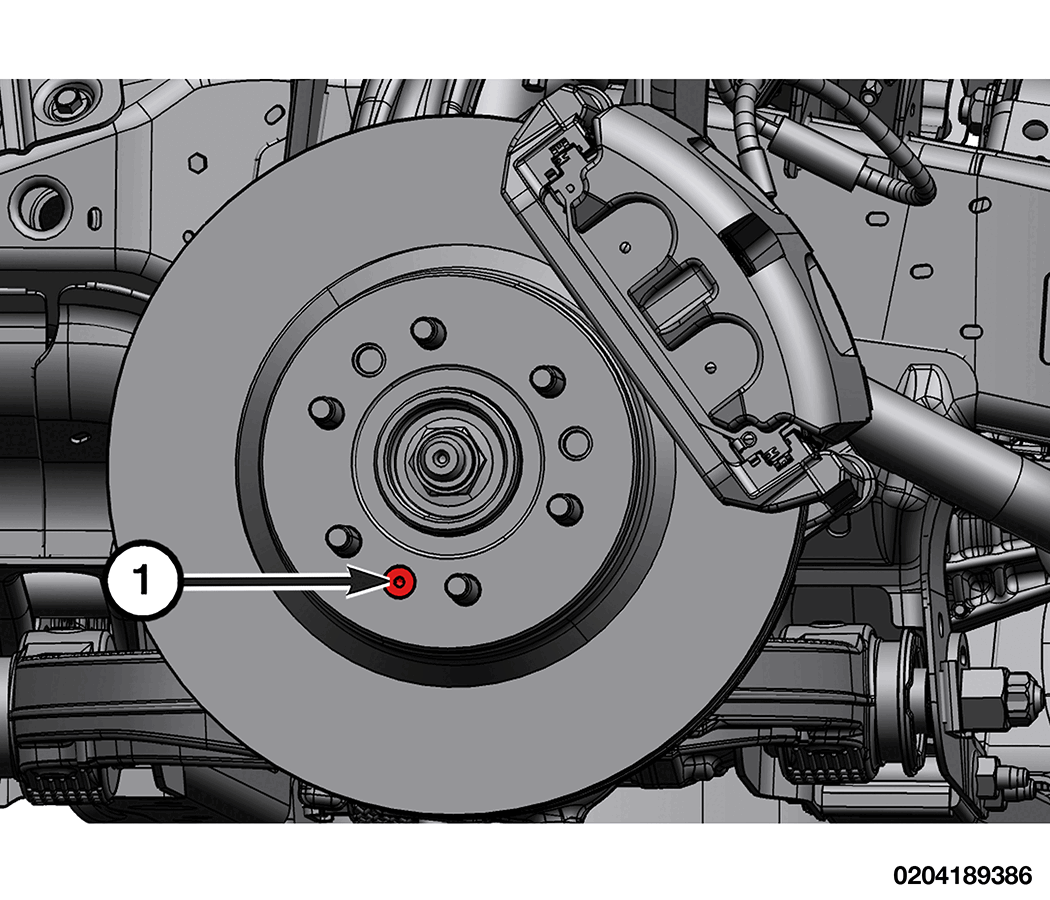

FRONT BRAKES (2 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
| 1 | Brake Rotor Bolt | 10 N. m (7 Ft. Lbs.) | - |
