Torque Specifications - Brake Pedal

GC0205588Courtesy of CHRYSLER GROUP, LLC

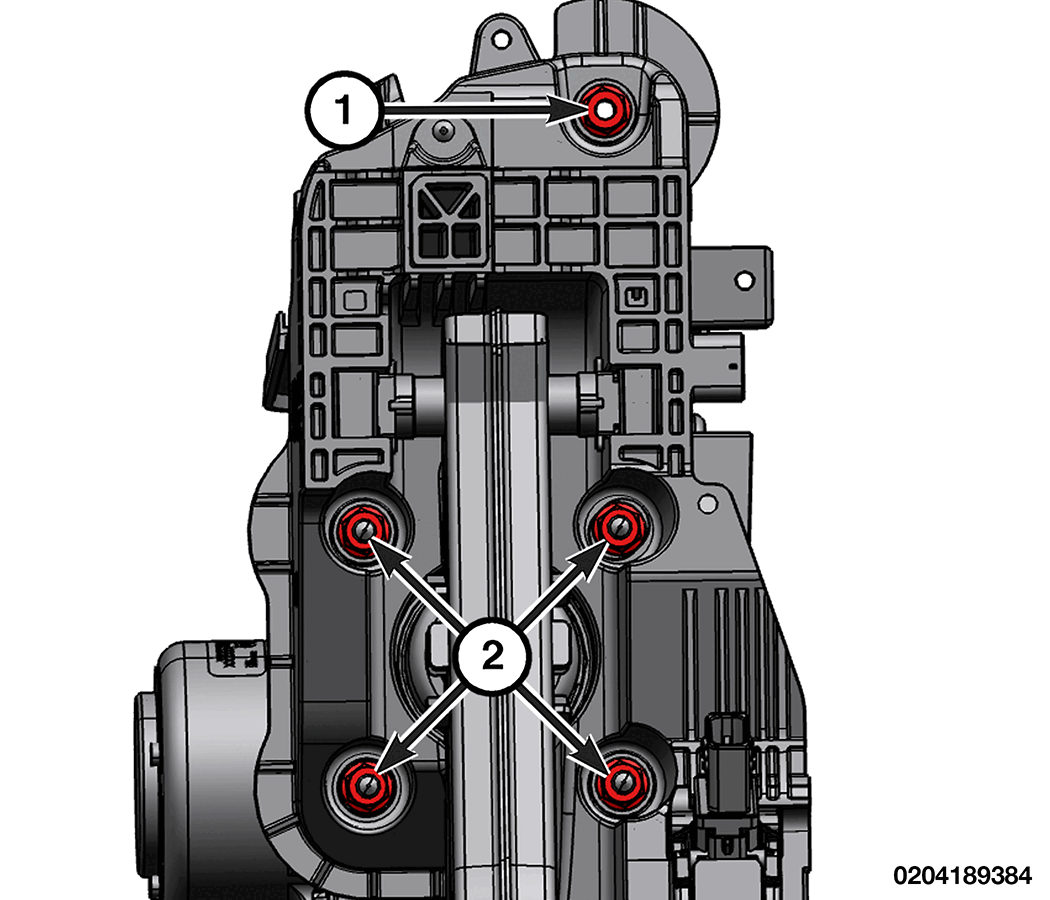

BRAKE PEDAL (1 OF 2)

CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Pedal Sled Nut 9 N. m (80 In. Lbs.)  -
2 Brake Booster Nuts 24 N. m (18 Ft. Lbs.)
GC0201504Courtesy of CHRYSLER GROUP, LLC

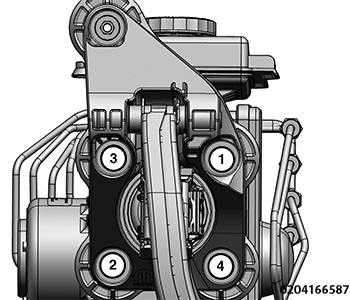

BRAKE PEDAL (2 OF 2)

Brake Booster Tightening Sequence (1-2-3-4)
