Torque Specifications - Brake Lines

GC0205448Courtesy of CHRYSLER GROUP, LLC
BRAKE LINES (1 OF 2)

CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Front Brake Hose Flare Nut 28 N. m (21 Ft. Lbs.)  -

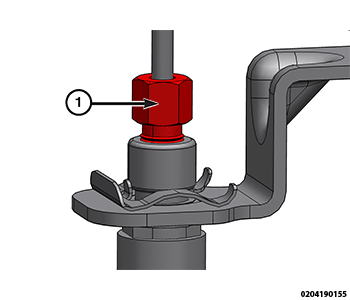

GC0205425Courtesy of CHRYSLER GROUP, LLC
BRAKE LINES (2 OF 2)

CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Rear Brake Hose Flare Nut 18 N. m (13 Ft. Lbs.)  -
