Torque Specifications - Brake Booster
BRAKE BOOSTER

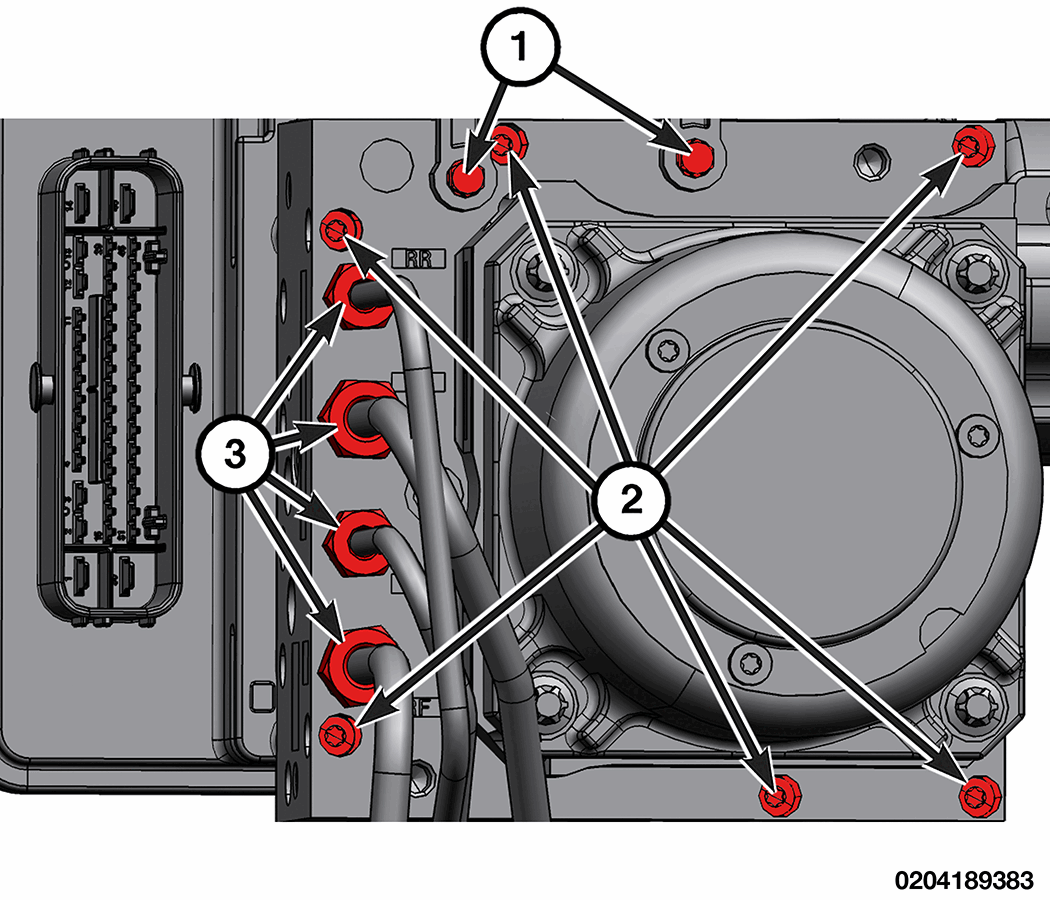

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Brake Fluid Reservoir Bolts | 8 N. m (71 In. Lbs.) | - |

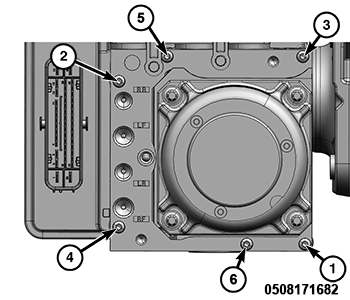

| 2 | Brake System Control Module (BSCM) Bolts (First Stage) | 2. 75 N. m (24 In. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| Brake System Control Module (BSCM) Bolts (Second Stage) | 3. 5 N. m (31 In. Lbs.) | ||
| 3 | Front Brake Booster Line Flare Nuts | 25 N. m (18 Ft. Lbs.) | - |
| 4 | Rear Brake Booster Line Flare Nuts | 20 N. m (15 Ft. Lbs.) | - |
