Adjustable Pedal Switch

REMOVAL

1. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

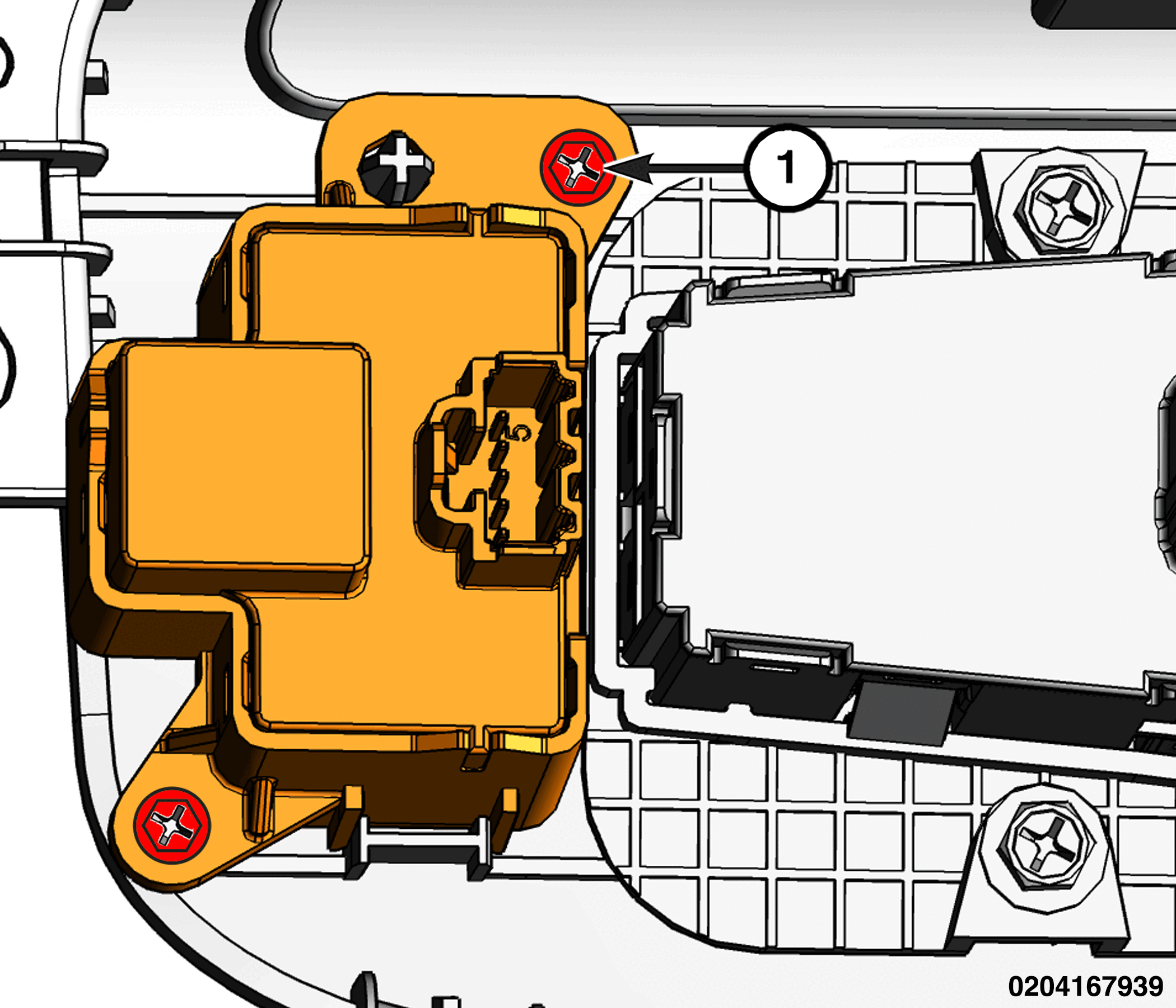

   1 - Pedal Adjustment Switch Screws

2. Remove the pedal adjustment switch screws.
3. Remove the pedal adjustment switch.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
