Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION  .

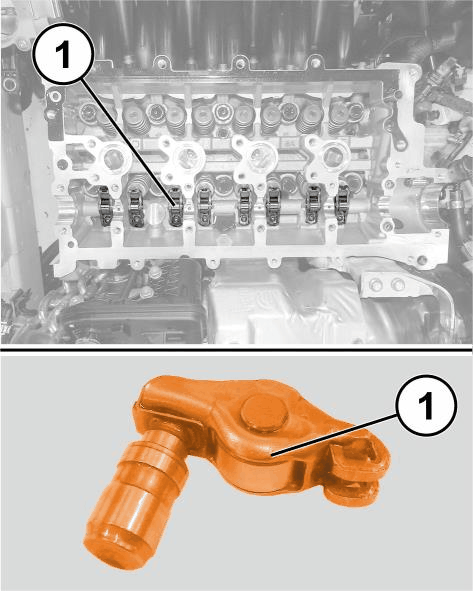

    GC0213412Courtesy of CHRYSLER GROUP, LLC
  3. Remove the hydraulic tappets (1).
