Disassembly And Assembly: Disassembly

NOTE:

The operation should be carried out with the liftgate removed.

  1. Remove the liftgate glass. Refer to GLASS, LIFTGATE, REMOVAL AND INSTALLATION .
  2. Remove the wiper motor. Refer to REAR WIPER MOTOR, REMOVAL AND INSTALLATION .
  3. Remove the liftgate and place it on a work bench. Refer to LIFTGATE, REMOVAL AND INSTALLATION .

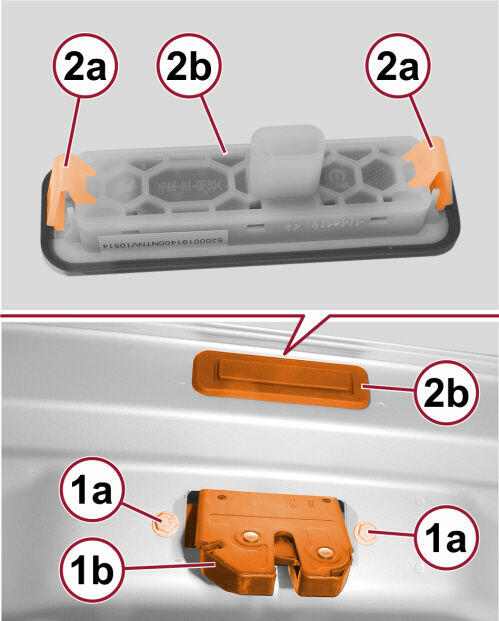

    GC0163686Courtesy of CHRYSLER GROUP, LLC
  4. Remove the liftgate latch (1b). Refer to LATCH, LIFTGATE, REMOVAL AND INSTALLATION .
  5. Release the liftgate release switch retainers (2a).
  6. Disconnect the wiring connector and remove the liftgate release switch (2b).

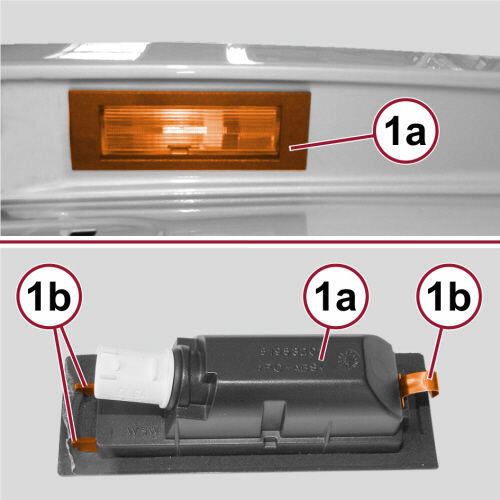

    GC0163232Courtesy of CHRYSLER GROUP, LLC
  7. Using trim stick or equivalent, release the license plate light retainers (1b).
  8. Disconnect the license plate lamp wiring connector and remove the lamp (1a).

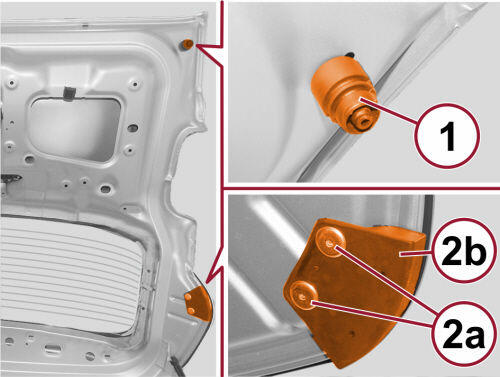

    GC0163909Courtesy of CHRYSLER GROUP, LLC
  9. Unscrew the rubber bumper (1) and remove.
  10. With the use of a drill equipped with an appropriate tip, remove the rivets (2a) and the tail lamp pad (2b).
