Road Testing Wind Noise-Rear Door

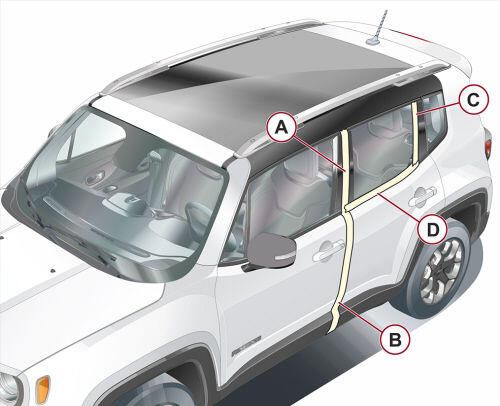

GC0212631Courtesy of CHRYSLER GROUP, LLC
  1. Apply tape to the various areas shown in illustration in the figure.
  2. Apply 50 mm (2 in.) masking tape in 150 mm (6 in.) lengths along weatherstrips, weld seams or moldings. After each length is applied, drive the vehicle. If noise goes away after a piece of tape is applied, remove tape, locate, and repair defect.
