Standard Procedure: Draining

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  2. Remove the support and lower the vehicle.
  3. Remove the air cleaner body and clean air hose. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION  .
  4. Position a drain pan under the coolant hoses.

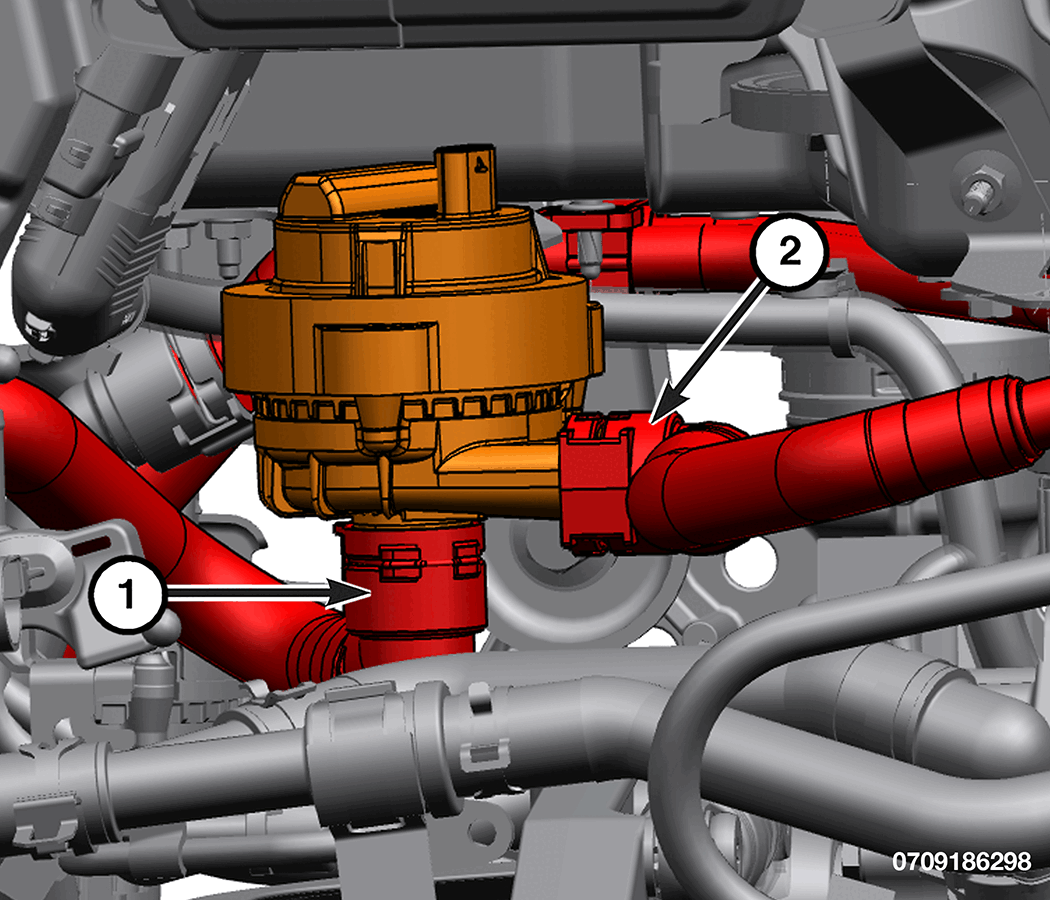

    GC0203148Courtesy of CHRYSLER GROUP, LLC
    1 - Low Temp Coolant Pump 2 Inlet Hose
    2 - Low Temp Coolant Pump 2 Outlet Hose
  5. Disconnect the low temp coolant pump inlet hose and drain the low temp cooling system.
  6. Once the system is completely drained, connect the low temp coolant pump inlet hose.
