Battery Coolant Pump: Removal
WARNING: This page is about a different variant/trim than selected.
- Drain the battery cooling system. Refer to: BATTERY COOLING, DRAINING .
- Remove the battery pressurized coolant bottle. Refer to RESERVOIR, REMOVAL AND INSTALLATION .

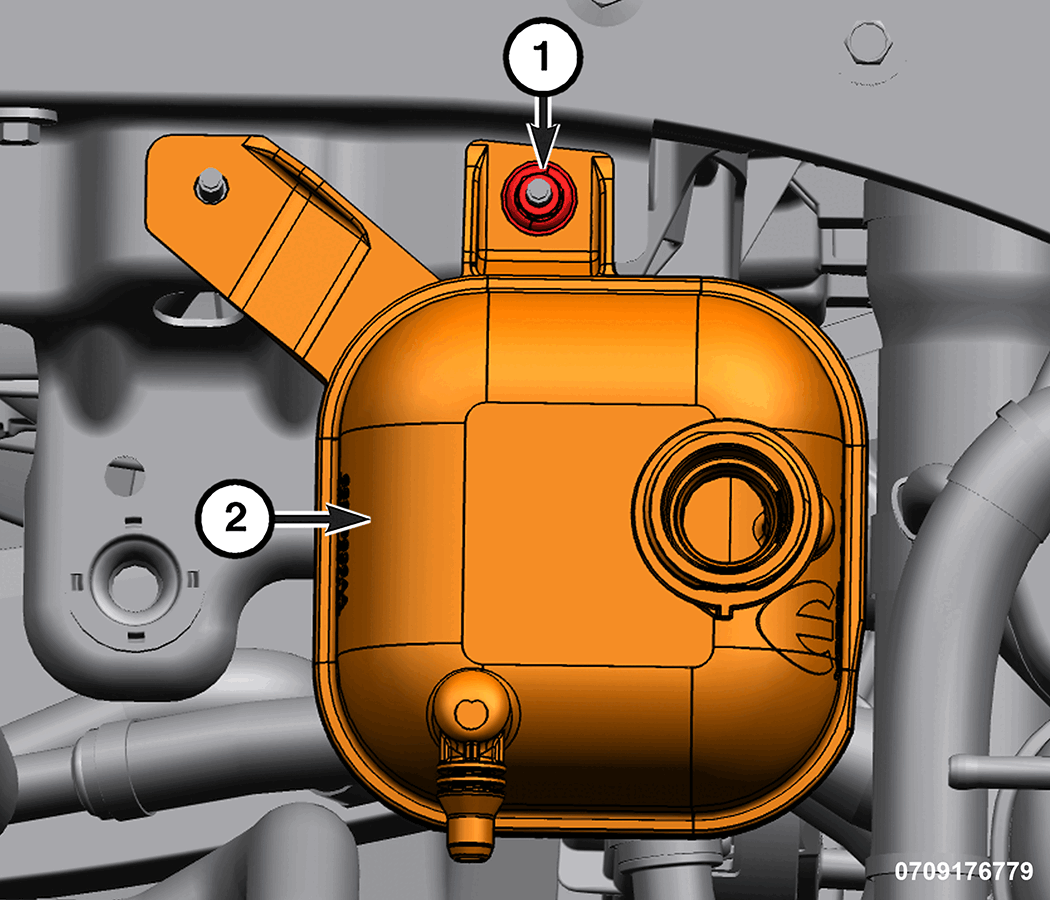

1 - Low Temp Pressurized Coolant Bottle Nut 2 - Low Temp Pressurized Coolant Bottle NOTE:Not necessary to drain the low temp cooling system.
- Remove the low temp pressurized coolant bottle nut and position aside the low temp pressurized coolant bottle.

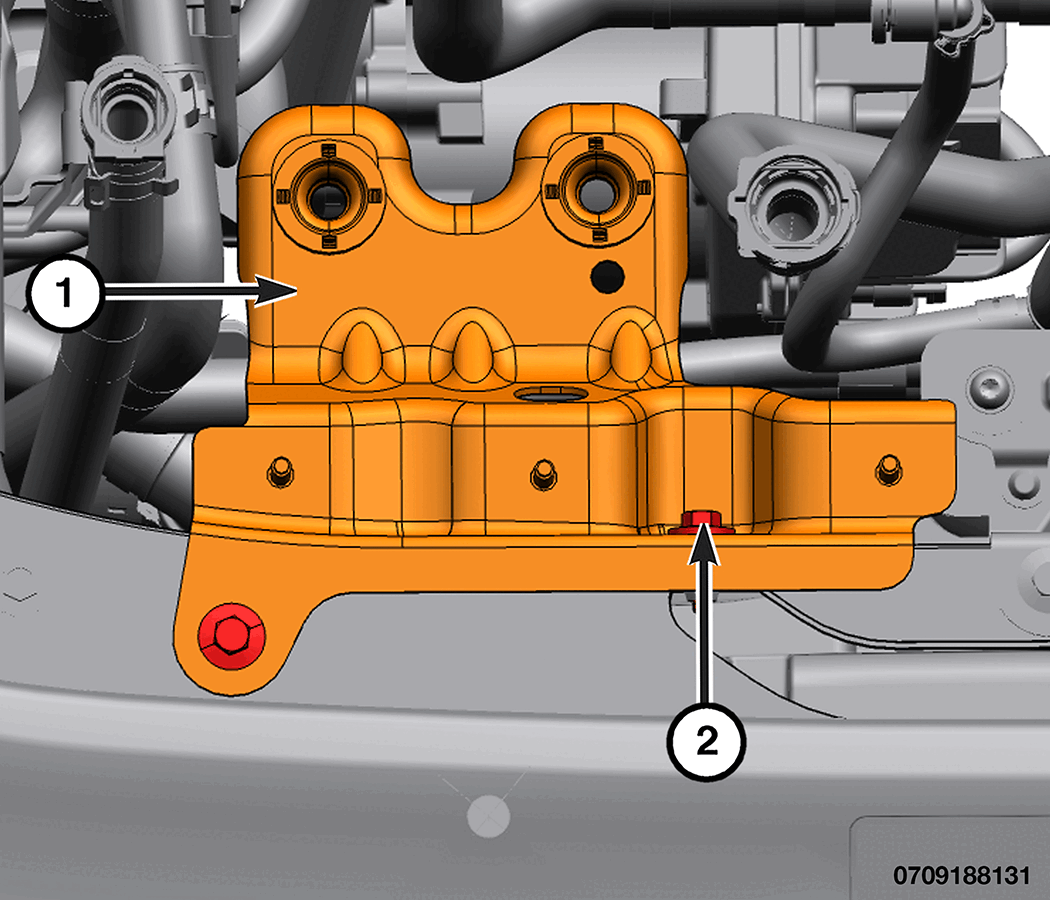

1 - Coolant Bottle Bracket 2 - Coolant Bottle Bracket Bolts - Remove the coolant bottle bracket bolts and the coolant bottle bracket.

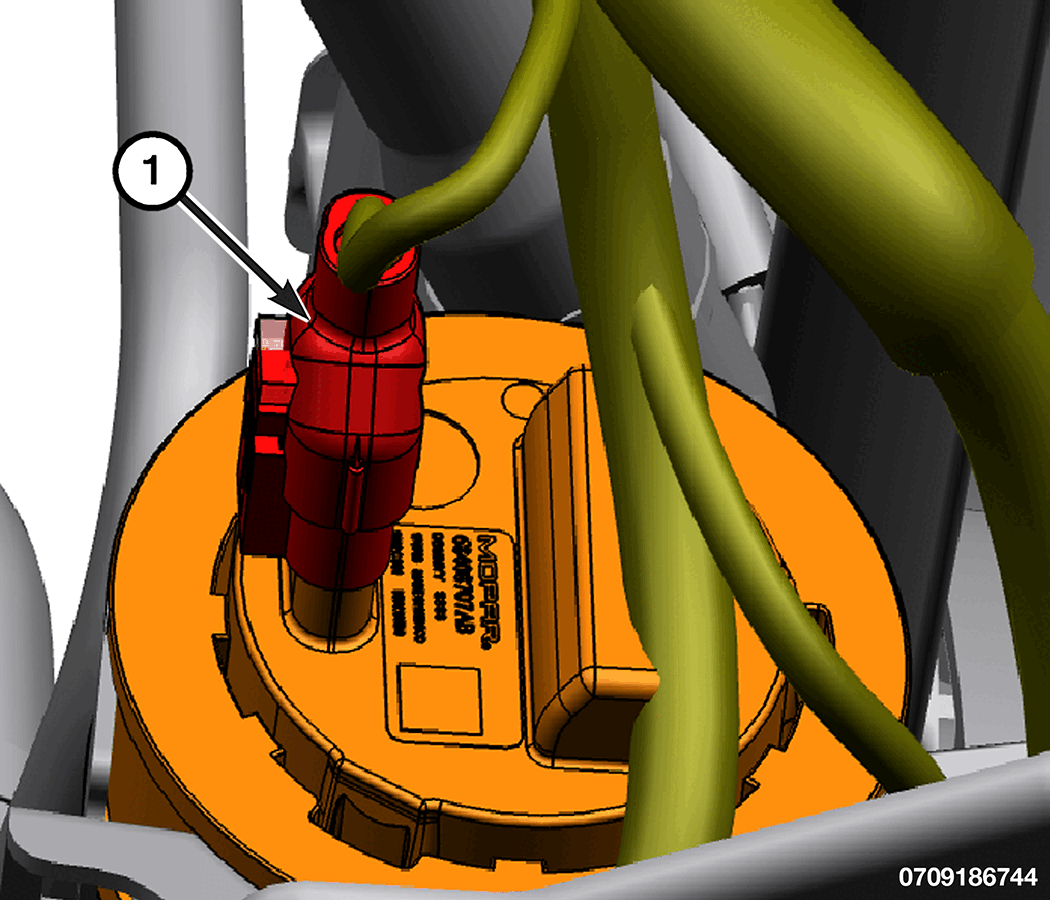

1 - Battery Coolant Pump Wire Harness Connector - Disconnect the battery coolant pump wire harness connector.

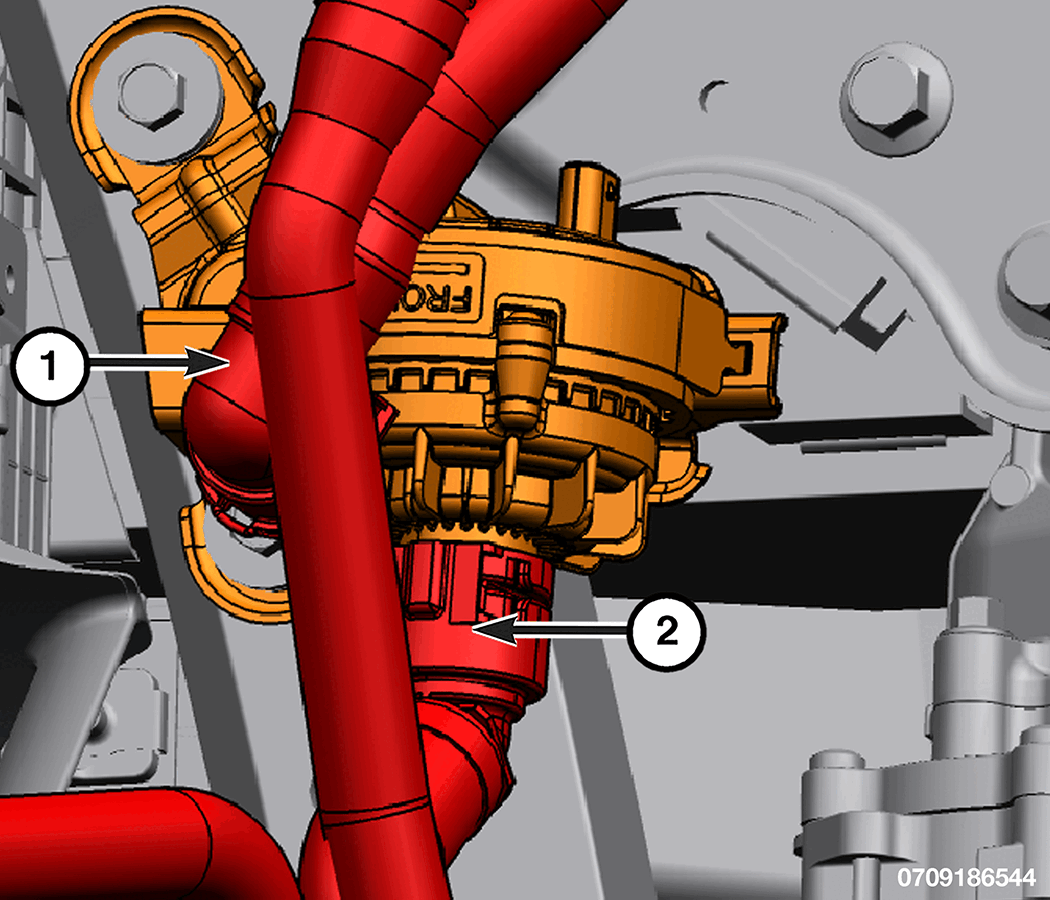

1 - Battery Coolant Pump Inlet Hose 2 - Battery Coolant Pump Outlet Hose - Disconnect the battery coolant pump inlet hose from the battery coolant pump.

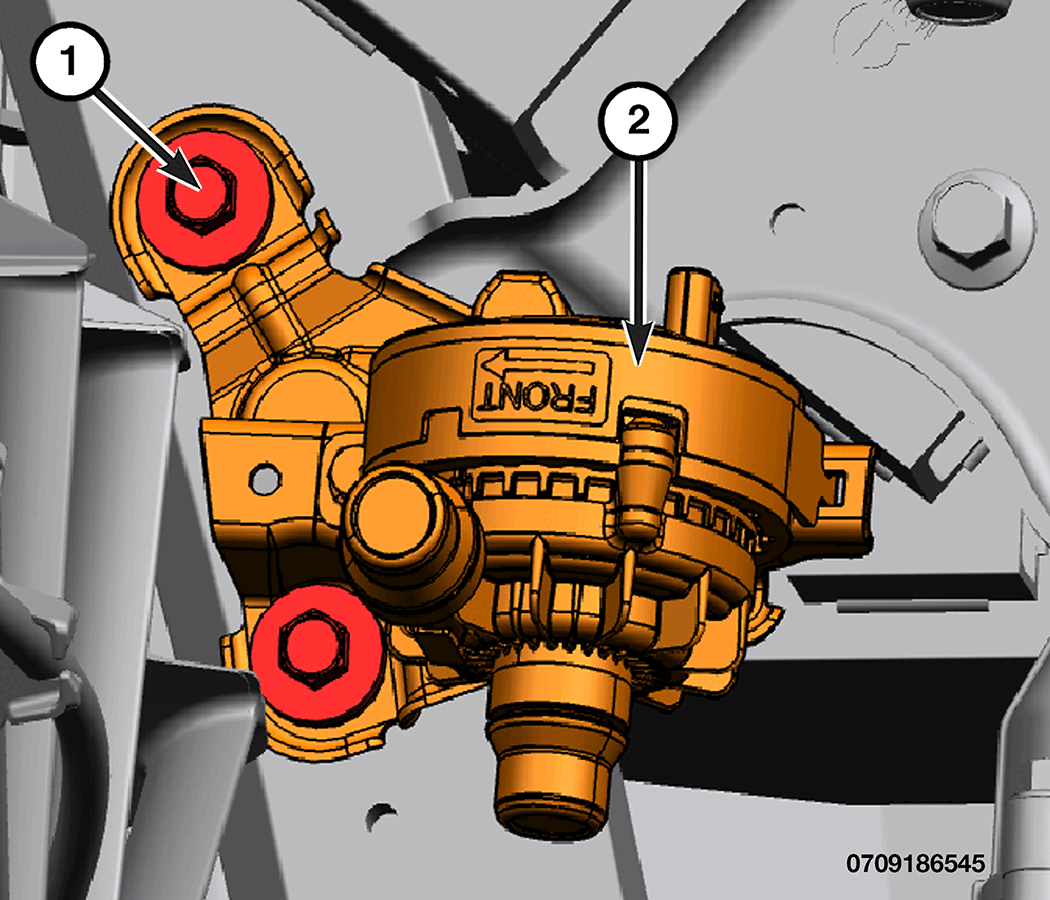

1 - Battery Coolant Pump Bolts 2 - Battery Coolant Pump - Remove the battery coolant pump bolts and the battery coolant pump.
