Battery System
WARNING: This page is about a different variant/trim than selected.
MAIN BATTERY

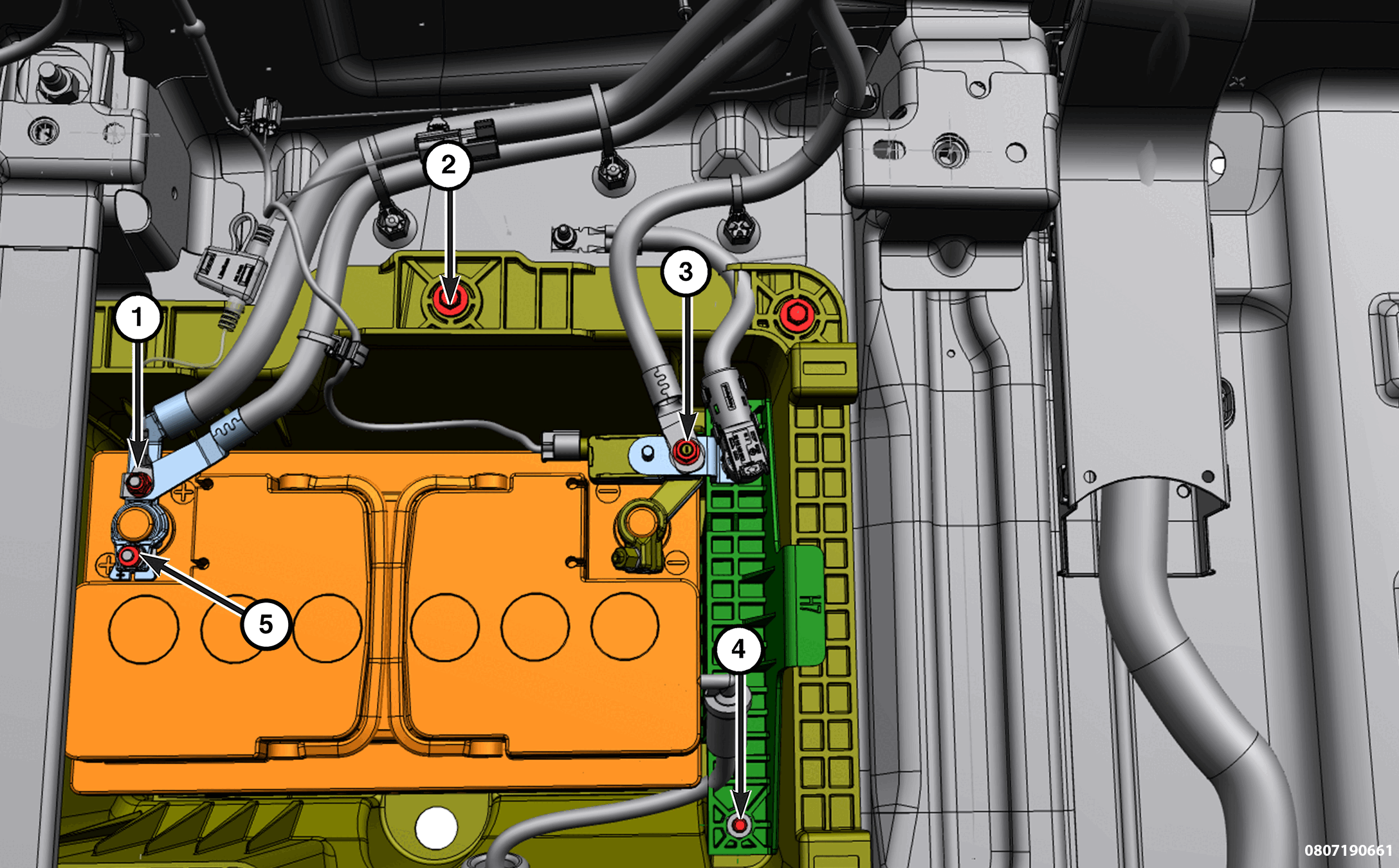

TORQUE SPECIFICATIONS - BATTERY SYSTEM
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Battery Positive Cable End Nut | 7 N.m (63 In. Lbs.) | - |
| 2 | Battery Tray Bolts | 10 N.m (89 In. Lbs.) | - |
| 3 | Battery Negative Cable to the IBS | 11 N.m (8 Ft. Lbs.) | - |
| 4 | Battery Hold Down Bolt | 5 N.m (44 In. Lbs.) | - |
| 5 | Battery Positive Clamp to Positive Post | 7 N.m (63 In. Lbs.) | - |
| - | Intelligent Battery Sensor (IBS) Sensor to Negative Post | 6 N.m (53 In. Lbs.) | - |
TORQUE SPECIFICATIONS - BATTERY SYSTEM
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Negative Jump Start Post to Core Support | 11 N.m (8 Ft. Lbs.) | - |
| 2 | Battery Positive B(+) at Power Distribution Center (PDC) M8 Nut | 15 N.m (11 Ft. Lbs.) | - |
| 3 | Battery Positive B(+) at Power Distribution Center (PDC) M6 Nut | 8 N.m (71 In. Lbs.) | - |
| - | Battery Negative Cable to Engine Block | 41 N.m (30 Ft. Lbs.) | - |
| - | Battery Positive B(+) at Bulkhead Captured Nut | 15 N.m (11 Ft. Lbs.) | - |
| - | Battery Positive B(+) at Bulkhead Isolator Nut | 6 N.m (53 In. Lbs.) | - |
| - | Battery Clamp To Pass Through Stud | 15 N.m (11 Ft. Lbs.) | - |
